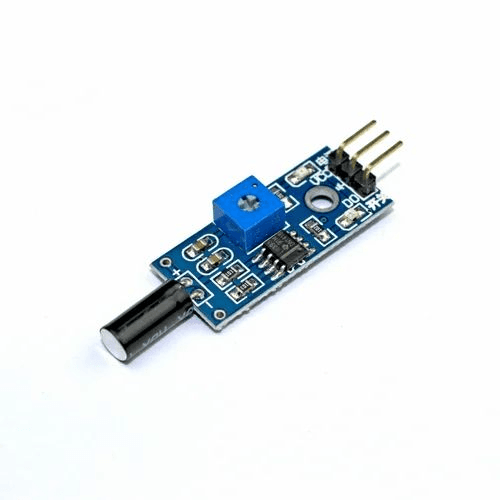

Tilt sensor Module for Arduino/Raspberry PI

Tilt Sensor Module – High Precision Tilt & Vibration Detection

The ilt Sensor Module is a compact and reliable solution for detecting tilt, vibration, or angle changes with high precision. Built with the tilt switch and an LM393 comparator chip, this module provides clean, stable digital outputs with excellent signal waveform quality and a driving capability of over 15mA.

Its adjustable sensitivity, dual voltage support (5V/3.3V), and visual indicators make it perfect for robotics, automation, security systems, gaming devices, and industrial machinery where tilt or orientation detection is critical.

Key Features:

• High-Accuracy Tilt Detection: Sensitive to subtle angle or orientation changes.

• Digital Output (0/1): Easily interfaced with Arduino, Raspberry Pi, ESP32, and other microcontrollers.

• Adjustable Sensitivity: Fine-tune detection via the integrated blue potentiometer.

• Wide Voltage Compatibility: Supports both 5V and 3.3V systems.

• LED Indicators: Red (power) and green (output) LEDs for quick status checks.

• Compact Design: PCB size of 3.2 cm x 1.4 cm, ideal for space-limited projects.

• Easy Mounting: Includes a fixed bolt hole for secure installation.

• Durable & Reliable: Uses the proven SW460D/SW-520D tilt/vibration sensor.

Applications:

• Robotics: Detects tilt and assists in movement control.

• Security Systems: Triggers alarms or cameras upon unauthorized movement.

• Automotive: Monitors tilt for vehicle stability and rollover prevention.

• Industrial Equipment: Provides safety by detecting abnormal tilts or vibrations.

• Consumer Electronics: Ideal for gaming controllers and motion-sensitive devices.

Specifications:

Specification	Details
IC Chip	LM393
Operating Voltage	5V / 3.3V
PCB Size	3.2 cm x 1.4 cm
Output Format	Digital (0 and 1)
Signal Detection	Adjustable via potentiometer
Output Driving Ability	>15mA
Sensor Type	SW-520D Tilt Vibration Sensor
Indicators	Red (Power), Green (Output)

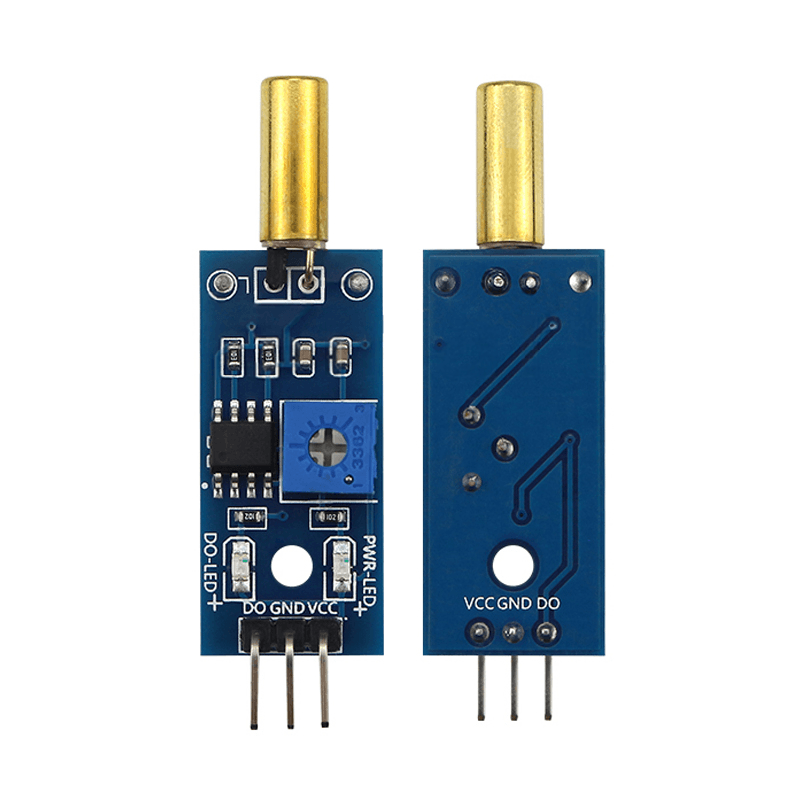

⚠️ Please Note: The sensor color may vary — Black, Blue, or Golden — depending on stock availability and will be shipped randomly.

Package Includes:

• 1 x Tilt Sensor Moule for Arduino/Raspberry Pi
