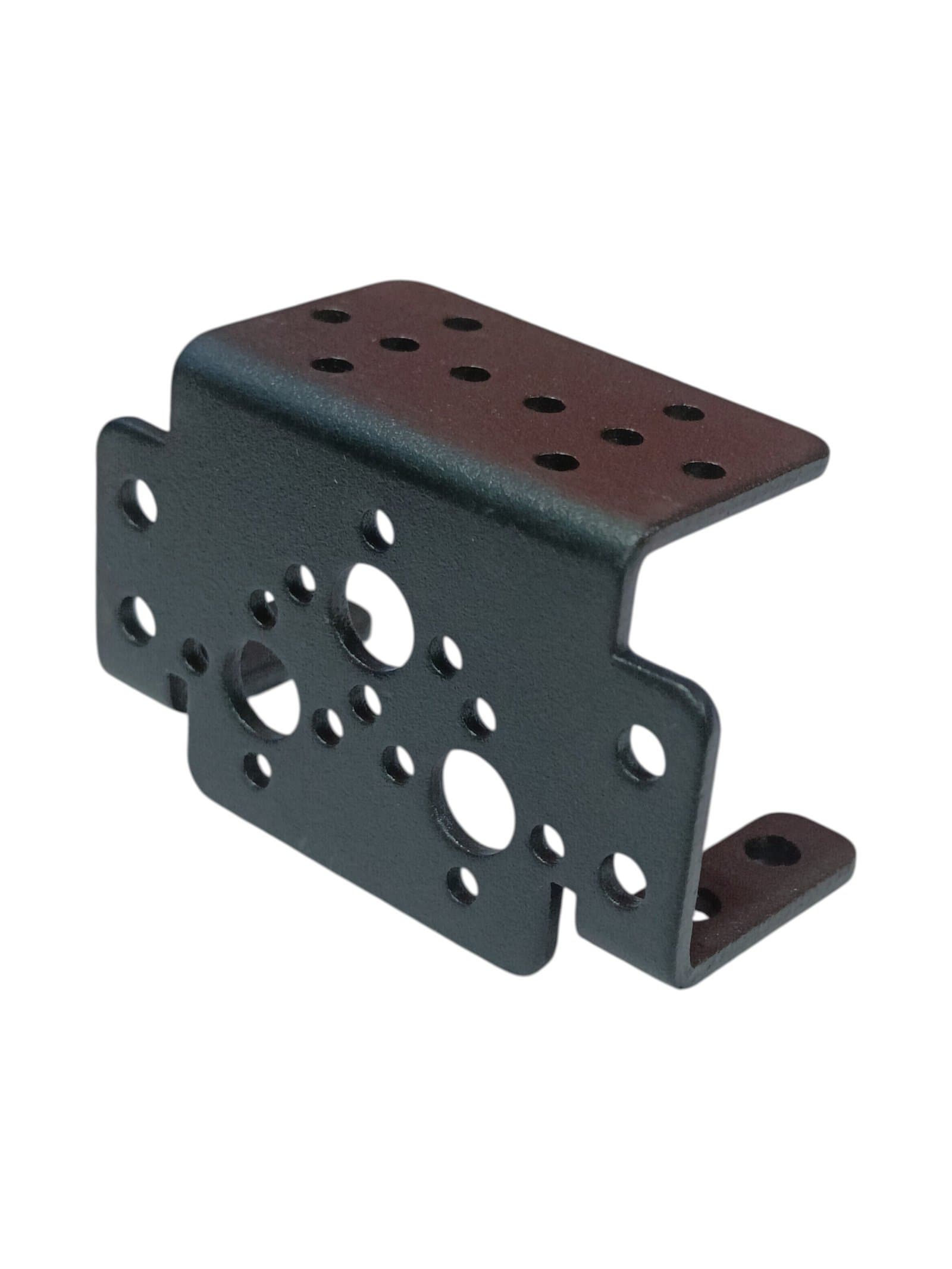

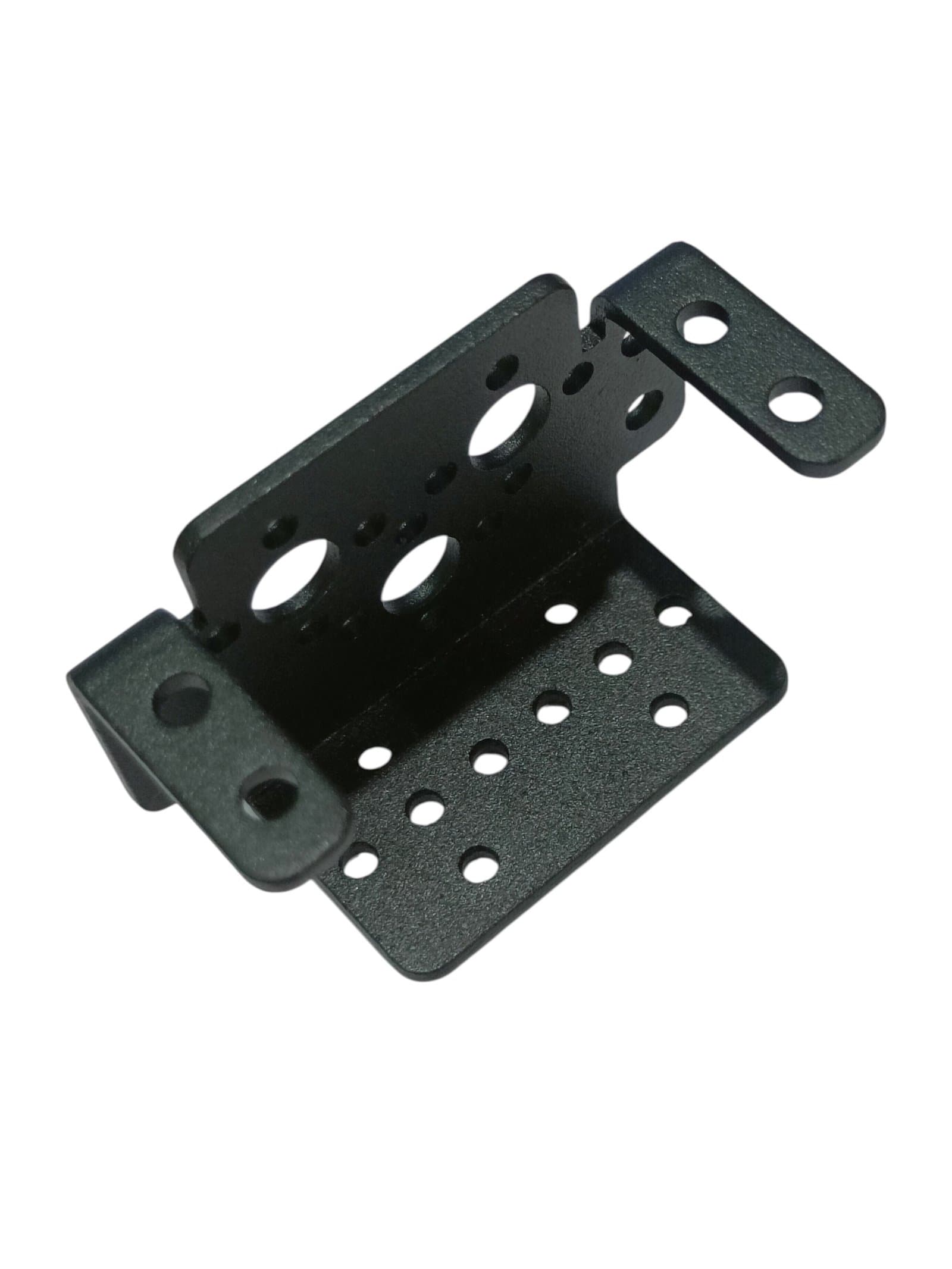

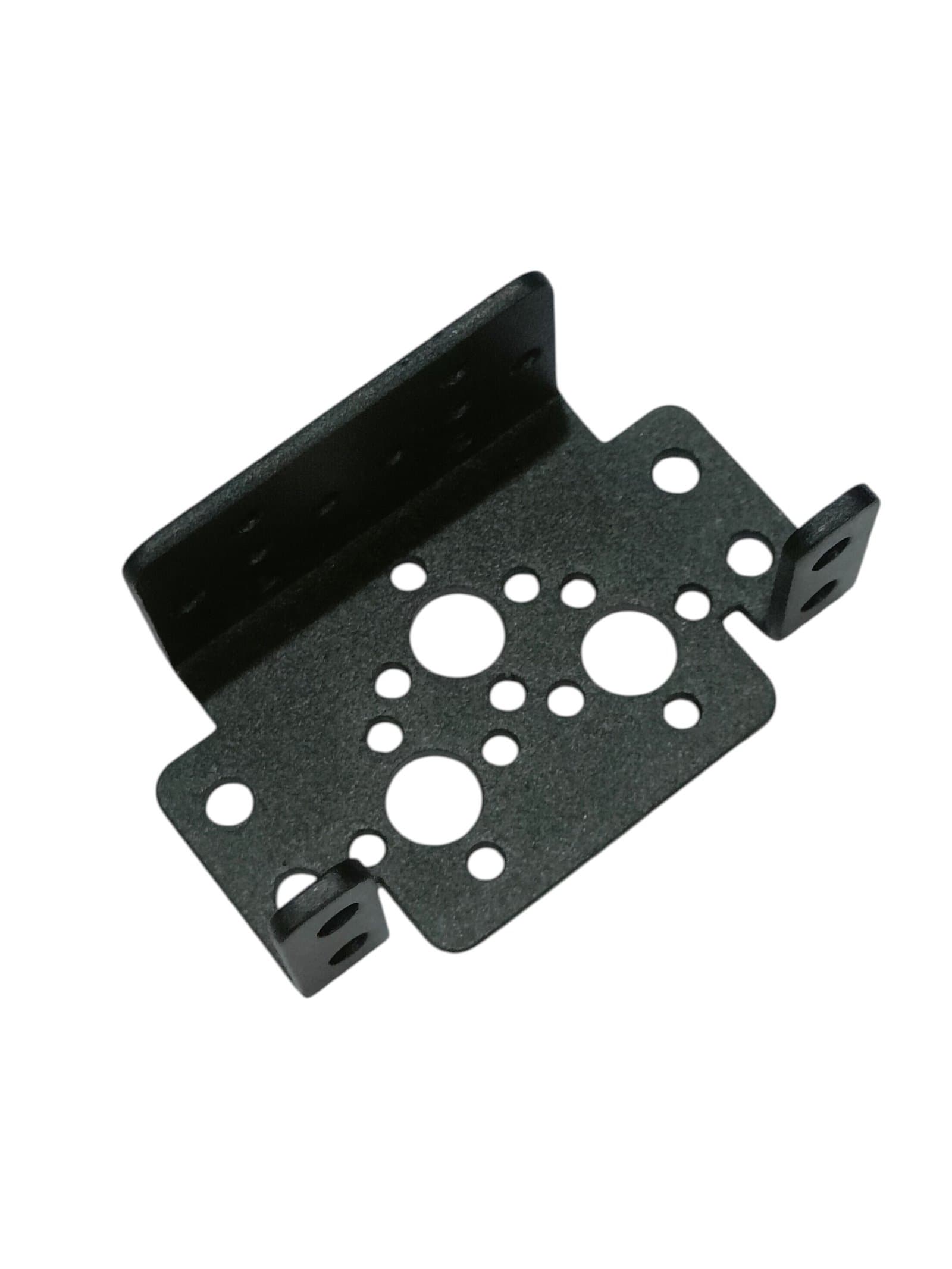

Multipurpose Aluminium Standard Servo Bracket – Pan Tilt Servo Mount

The Multipurpose Aluminium Standard Servo Bracket is a lightweight, strong, and versatile mounting bracket designed for standard-sized servo motors. It can be used to create pan and tilt mechanisms, robotic joints, servo-driven structures, and custom mechanical assemblies.

Manufactured from 2mm hard aluminium, the bracket provides a rigid and reliable mounting solution while keeping the overall weight of the robotic assembly low. Its compact design makes it suitable for use in robotics, automation, RC projects, humanoid robots, biped robots, and DIY mechanical systems.

This multipurpose servo bracket can be used for horizontal pan and tilt applications, allowing a servo motor to be mounted as part of a rotating or tilting mechanism. It can also be used as a servo stand for robot clamp claws, grippers, and other servo-operated tools.

The bracket is particularly useful for building joints in humanoid and biped robots. It can be used around shoulder, knee, and other articulated joint assemblies where a compact and lightweight servo mounting solution is required.

The black sandblasting oxidation surface finish provides a clean appearance and a durable surface suitable for regular mechanical use.

Features

• Multipurpose aluminium servo mounting bracket
• Suitable for most standard-sized servo motors
• Designed for pan and tilt mechanisms
• Suitable for horizontal surface mounting
• Can be used for robot clamp and claw assemblies
• Suitable for humanoid and biped robot joints
• Useful for shoulder, knee, and other articulated joints
• Made from 2mm hard aluminium
• Lightweight yet strong construction
• Black sandblasting oxidation finish
• Compact and versatile design
• Suitable for custom robotic mechanisms
• Ideal for DIY and educational robotics projects
• Suitable for Arduino and microcontroller-based robots
• Can be integrated with various servo-driven mechanisms

Specifications

Parameter	Specification
Product Type	Multipurpose Standard Servo Bracket
Material	2mm Hard Aluminium
Surface Finish	Sandblasting Oxidation
Colour	Black
Weight	Approximately 14 g
Servo Compatibility	Most Standard-Sized Servos
Application	Pan, Tilt, Robotics, Joint Mounting
Mounting Type	Mechanical Screw Mounting
Assembly	Unassembled

Design and Construction

The Multipurpose Aluminium Standard Servo Bracket is manufactured from 2mm hard aluminium to provide a strong and lightweight mechanical mounting solution.

Its versatile structure allows it to be incorporated into different types of servo mechanisms. The bracket can be used for horizontal pan and tilt assemblies as well as robotic joint structures.

The aluminium construction provides good rigidity while keeping the bracket lightweight at approximately 14 g. This makes it suitable for servo-powered mechanisms where reducing unnecessary weight is important.

The sandblasting oxidation treatment provides a black surface finish with a clean and professional appearance.

Working Principle

The bracket acts as a mechanical mounting interface for a standard-sized servo motor. The servo can be secured to the bracket using suitable mounting screws, while the bracket itself can be attached to another structural component or mounting surface.

For pan and tilt applications, the bracket can be incorporated into a rotating or tilting assembly to allow a servo motor to control the movement of a mounted platform, sensor, camera, robot head, or other component.

In robotics, the bracket can also be used as a structural connection around articulated joints such as shoulders, knees, arms, and legs. The servo provides the movement while the aluminium bracket provides mechanical support and connection between the components.

The bracket is a passive mechanical component and does not require a separate power supply.

Applications

• Pan and tilt mechanisms
• Horizontal servo mounting
• Robot clamp and claw assemblies
• Robotic grippers
• Humanoid robots
• Biped robots
• Robot shoulder joints
• Robot knee joints
• Robotic arm joints
• Robot leg mechanisms
• Servo-driven mechanisms
• Arduino robotics projects
• DIY robot projects
• RC robotics applications
• Automation projects
• Educational robotics
• Custom mechanical assemblies
• Prototype development
• Servo motor mounting
• Embedded robotics systems

Package Includes

• 1 × Multipurpose Aluminium Standard Servo Bracket

Product Disclaimer

Product images are shown for illustrative and representational purposes only. The actual product may vary slightly in colour, dimensions, surface finish, hole positioning, connector design, or appearance depending on the manufacturing batch.

Servo motor, screws, servo horn, robot clamp, claw, pan-tilt assembly, and other components shown in product images are not included unless specifically mentioned in the package contents.

Compatibility with a particular servo depends on the servo’s physical dimensions and mounting-hole arrangement. Please verify the dimensions and mounting pattern before installation.
