Sensor Shield V2.0 for Arduino Mega 2560 R3

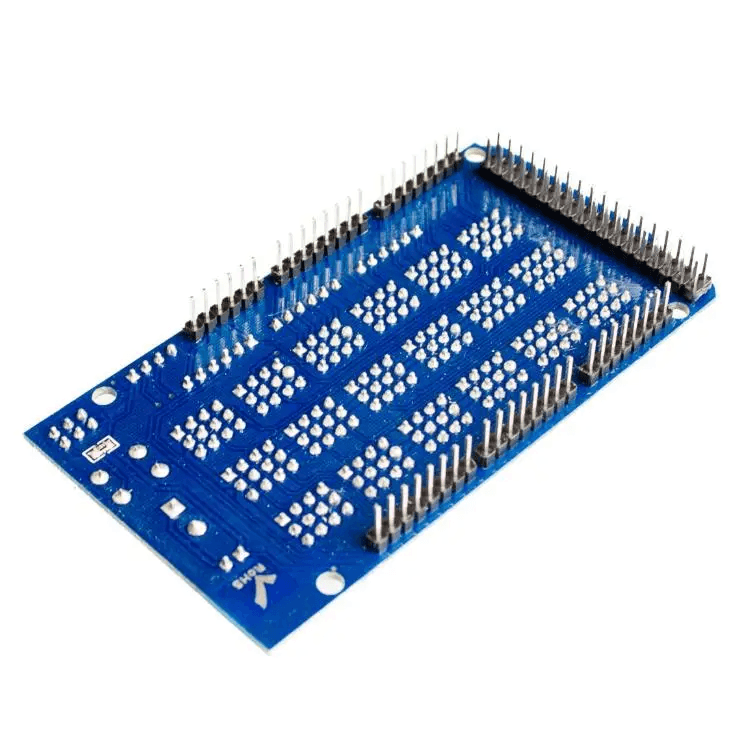

Mega 2560 R3 Sensor Shield V2.0 – Arduino Mega Sensor & Servo Expansion Board

Product Description

The Mega 2560 R3 Sensor Shield V2.0 is a versatile expansion board designed specifically for the Arduino Mega 2560 R3. It simplifies the connection of sensors, communication modules, displays, servos, and other peripherals by providing organized and easily accessible interfaces.

The shield uses a high-quality PCB immersion-gold process, providing improved contact reliability and resistance to oxidation for long-term use. Its layout is designed to make Arduino Mega projects easier to assemble by exposing the board’s digital and analog I/O pins in convenient 3-pin Power-GND-Signal configurations.

A major advantage of the V2.0 shield is its flexible power-management system. It includes a blue terminal block for an external power supply, allowing high-current devices such as multiple servos to receive adequate power without relying on the Arduino Mega’s onboard regulator.

The shield also includes dedicated interfaces for Bluetooth HC-05/HC-06 modules, SD card modules, APC220 RF modules, I2C devices, and RB URF ultrasonic sensors, making it suitable for advanced robotics, automation, wireless communication, and data-logging projects.

Features

• Designed for Arduino Mega 2560 R3
• Standard Mega shield footprint
• High-quality immersion-gold PCB
• 54 digital I/O interfaces with Power and Ground
• 16 analog input interfaces with Power and Ground
• Convenient 3-pin sensor connections
• Dedicated I2C interface
• Bluetooth HC-05/HC-06 interface
• SD card module interface
• APC220 RF module interface
• RB URF ultrasonic sensor interface
• Support for high-channel-count servo applications
• External power terminal for servos and other high-current devices
• Selectable internal or external power configuration
• Helps reduce wiring complexity
• Suitable for advanced robotics and automation projects

Specifications

Parameter	Specification
Product Type	Arduino Mega Sensor Expansion Shield
Model	Mega 2560 R3 Sensor Shield V2.0
Compatibility	Arduino Mega 2560 R3
Digital I/O Ports	54
Analog Input Ports	16
I/O Format	Power / Ground / Signal
Communication	I2C, UART, SPI
Bluetooth Interface	HC-05 / HC-06
Storage Interface	SD Card / SPI
Specialized Interfaces	RB URF, APC220
Servo Support	Up to 32 Channels*
PCB Process	Immersion Gold
Power Input	5V from Arduino or External Supply
External Power	Blue Screw Terminal
Mounting	Arduino Mega Shield Footprint

*The shield provides interfaces suitable for high-channel-count servo control; actual 32-channel operation depends on the controller, software, and servo-control hardware used.

Design and Construction

The Mega 2560 R3 Sensor Shield V2.0 is designed to mount directly onto an Arduino Mega 2560 R3, providing convenient access to the board’s available I/O pins.

Each digital and analog interface is arranged in a practical Power-GND-Signal format, allowing compatible sensors and modules to be connected easily using standard jumper wires.

The immersion-gold PCB finish provides a durable surface and helps improve long-term contact reliability and oxidation resistance.

The shield is also designed with dedicated connectors for commonly used modules, reducing the need for complex point-to-point wiring.

Working Principle

The shield acts as an interface and expansion layer between the Arduino Mega 2560 and external sensors, modules, servos, displays, and other peripherals.

It does not function as an independent controller. Instead, it routes the Mega’s power, ground, digital, analog, and communication signals to convenient connectors.

The Arduino Mega remains the main processing controller, while the shield provides organized access to the available interfaces and simplifies system wiring.

Intelligent Power Management

One of the main advantages of the V2.0 shield is its external power option for high-current applications.

When multiple servos or other power-hungry devices are connected, relying entirely on the Arduino Mega’s onboard regulator may result in insufficient current or overheating.

The shield provides a blue screw terminal for connecting an external power source. By changing the power-selection configuration and removing the appropriate SEL jumper, the external supply can be used for selected digital power rails while the analog section can continue using the Arduino’s filtered supply.

This configuration can help provide cleaner sensor power and sufficient current for servo applications.

Servo Applications

The shield is designed to simplify projects involving multiple servos, such as:

• Robotic arms
• Hexapod robots
• Humanoid robots
• Pan-tilt mechanisms
• Multi-servo automation
• Custom robotic joints

For more than a few small servos, use an appropriately rated external 5V power supply and ensure the grounds between the Arduino and external supply are correctly connected.

Specialized Interfaces

Bluetooth

The dedicated Bluetooth interface is suitable for compatible HC-05 and HC-06 modules, enabling wireless control and serial communication.

SD Card

The SD card interface can be used for data logging, configuration storage, measurement recording, and other storage applications.

APC220

The APC220 interface allows compatible RF modules to be integrated for wireless serial communication and telemetry.

I2C

The dedicated I2C interface allows easy connection of compatible sensors, displays, RTC modules, and other I2C peripherals.

RB URF Ultrasonic Sensor

A dedicated interface is provided for the compatible RB URF ultrasonic sensor, simplifying distance-sensing integration.

Typical Application Scenarios

Advanced Robotics

Suitable for robots requiring multiple sensors, servos, communication modules, and actuators, including hexapods and robotic arms.

Smart Home Systems

Can be used to connect temperature, light, motion, relay, and other sensors and actuators to an Arduino Mega-based automation system.

Wireless Data Logging

The combination of SD card, Bluetooth, and APC220 interfaces makes the shield useful for collecting and transmitting sensor data.

Educational Projects

The organized connectors and flexible power system make it suitable for teaching Arduino Mega programming, sensors, communication interfaces, and robotics.

Applications

• Arduino Mega robotics
• Multi-servo robot projects
• Hexapod robots
• Robotic arms
• Humanoid robots
• Smart home automation
• Wireless data logging
• Sensor networks
• Bluetooth control systems
• APC220 wireless communication
• SD card data logging
• Ultrasonic distance sensing
• Industrial automation prototypes
• Educational electronics
• IoT prototypes
• Advanced Arduino projects
• Embedded control systems
• Mechatronics projects

Package Includes

• 1 × Mega 2560 R3 Sensor Shield V2.0 – Compatible with Arduino

Product Disclaimer

Product images are shown for illustrative and representational purposes only. The actual shield may vary slightly in PCB colour, connector arrangement, component placement, jumper position, labeling, or other visual details depending on the manufacturing batch.

Arduino Mega 2560 R3, sensors, Bluetooth modules, SD cards, APC220 modules, ultrasonic sensors, servos, power supplies, jumper wires, and other accessories shown in product images are not included unless specifically mentioned in the package contents.

Actual compatibility and the number of simultaneously usable peripherals depend on the connected modules, Arduino software, available I/O resources, and power requirements.

Important Notes

External Servo Power

If using more than 2–3 small servos, remove the SEL jumper and connect a suitable 5V external power supply to the blue terminal block.

This helps prevent excessive load on the Arduino’s onboard regulator and provides adequate current for servo operation.

Ground Connection

When using an external power supply, make sure the external supply ground and Arduino ground are properly connected so that control signals have a common reference.

Power Selection

Check the shield’s power-selection arrangement before powering the system. Incorrect jumper configuration or incorrect external voltage may damage the Arduino or connected components.

High-Current Devices

Motors, servos, and other high-current devices should be powered from a suitable external supply rather than directly from the Arduino Mega’s regulator.
