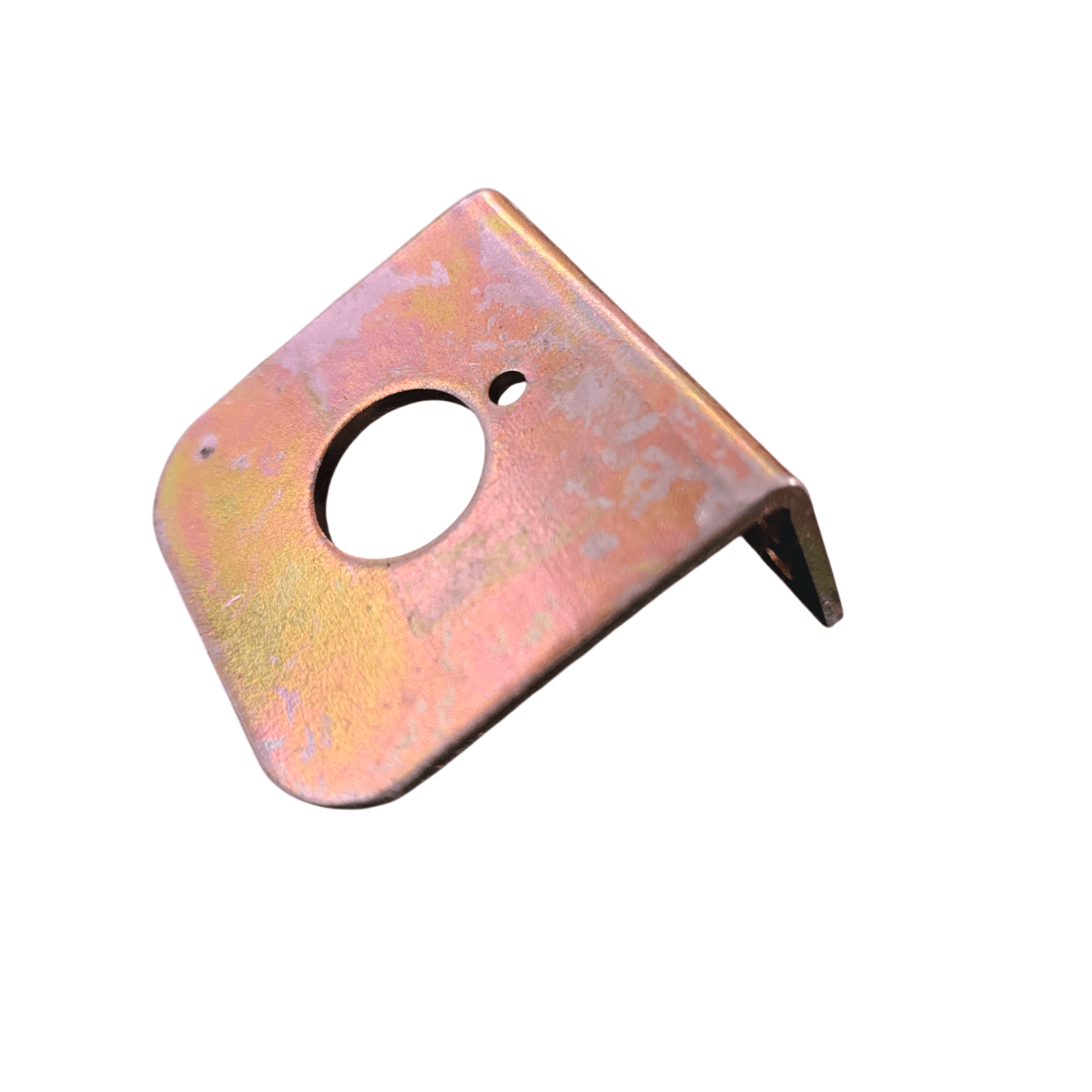

Center Shaft Motor L Clamp – 2mm Thick Heavy Duty Bracket

L Clamp Bracket for Center Shaft Gear Motors

Product Description

The L Clamp Bracket for Center Shaft Gear Motors is a heavy-duty metal mounting bracket designed specifically for Center Shaft DC Gear Motors. It provides a strong and stable mounting solution for robotics, RC vehicles, automation systems, and DIY mechanical projects.

Its 2mm thick Mild Steel construction helps the motor remain securely aligned during high-torque operation while reducing unwanted movement and vibration.

Heavy-Duty Construction

Made from 2mm thick Mild Steel (MS), the bracket is designed to withstand mechanical loads and provide additional rigidity compared with lightweight plastic motor mounts. Its L-shaped structure allows secure vertical mounting on flat robot chassis and other surfaces.

Precision Motor Fit

The bracket features an approximately 13.5mm central hole designed to accommodate the motor bushing. Pre-drilled mounting holes align with compatible Center Shaft Gear Motors, while the base includes approximately 3mm mounting holes suitable for M3 screws.

Key Features

• Heavy-duty 2mm Mild Steel construction
• Designed for Center Shaft DC Gear Motors
• Approx. 13.5mm motor shaft/bushing hole
• 3mm M3-compatible mounting holes
• L-shaped design for rigid mounting
• Helps maintain motor alignment
• Suitable for high-torque applications
• Rust-resistant finish

Technical Specifications

Feature	Specification
Material	Mild Steel (MS)
Thickness	Approx. 2mm
Compatibility	Center Shaft DC Gear Motors
Motor Shaft Hole	Approx. 13.5mm
Mounting Hole	3mm / M3 Compatible
Shape	L-Type Bracket

Typical Application Scenarios

Mobile Robots

Provides a secure mounting solution for drive motors on robotic chassis.

Pan/Tilt Mechanisms

Can be used to create stable pivot points for cameras, sensors, and other mechanisms.

Educational Robotics

Suitable for student robotics projects requiring a stronger motor mounting structure.

DIY Automation

Useful for mounting motors in small conveyors, pulley systems, and mechanical automation projects.

Applications

• Mobile robots
• Line-following robots
• RC vehicles
• Robotic arms
• Pan-tilt mechanisms
• Educational robots
• DIY automation
• Conveyor systems
• Pulley mechanisms
• Custom motorized platforms

Package Includes

• 1 × Center Shaft Gear Motor L Clamp

Product Disclaimer

Product specifications may vary slightly between manufacturers and production batches. Please verify motor dimensions, shaft/bushing size, and mounting-hole pattern before installation.

Product images are for illustrative purposes only and may differ from the actual product in colour, finish, dimensions, or other visual details.

Important Note

Motor Compatibility

This bracket is specifically designed for Center Shaft DC Gear Motors. Confirm the motor’s dimensions and mounting pattern before purchase.

Screw Selection

The mounting holes are approximately 3mm and are generally suitable for M3 screws. Select appropriate screw lengths for your chassis and motor.

Finish Variation

The actual colour or surface finish may vary depending on availability.
