L-Shaped Interconnect Servo Bracket – Aluminium Servo Mount

Product Description

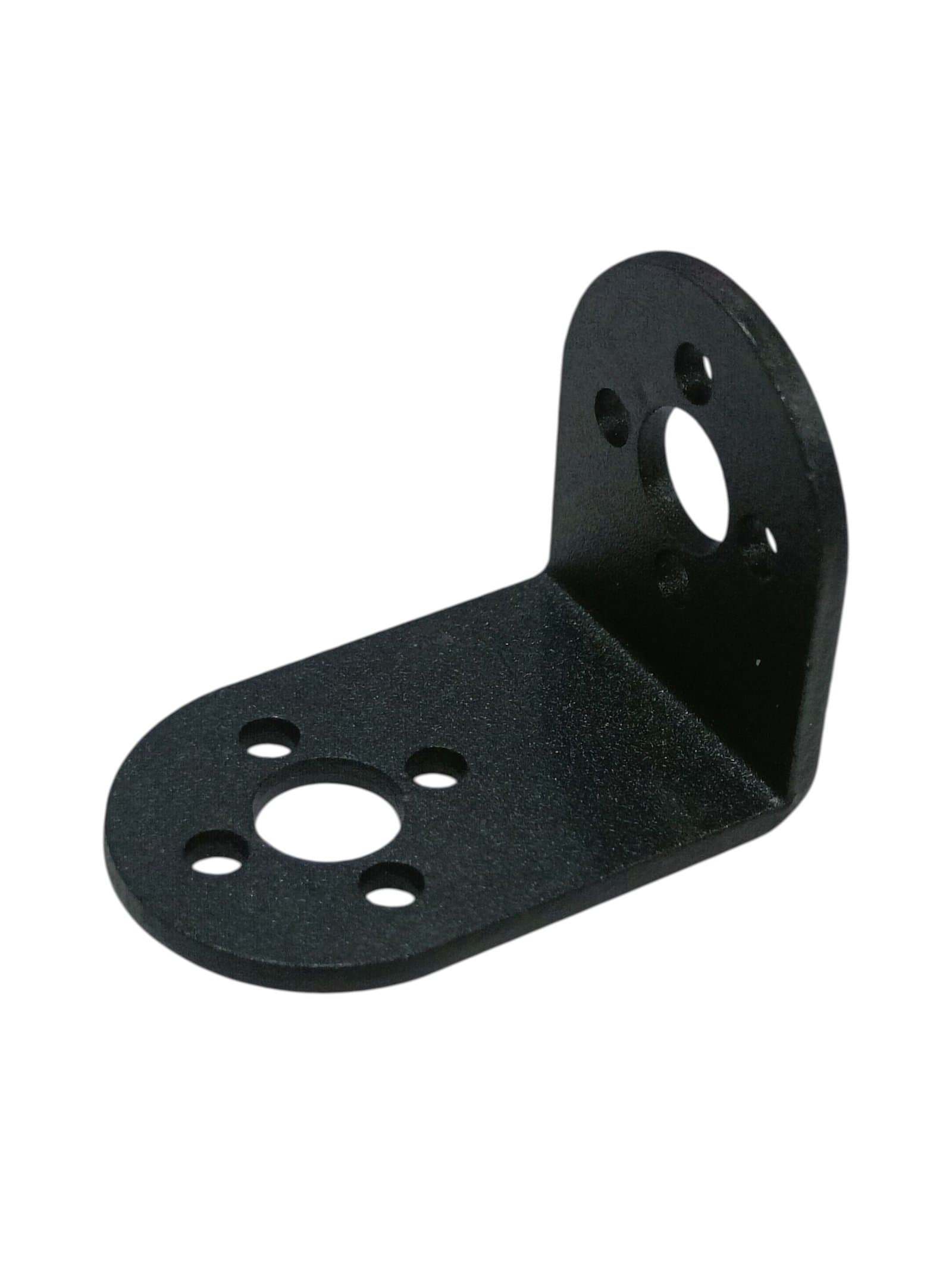

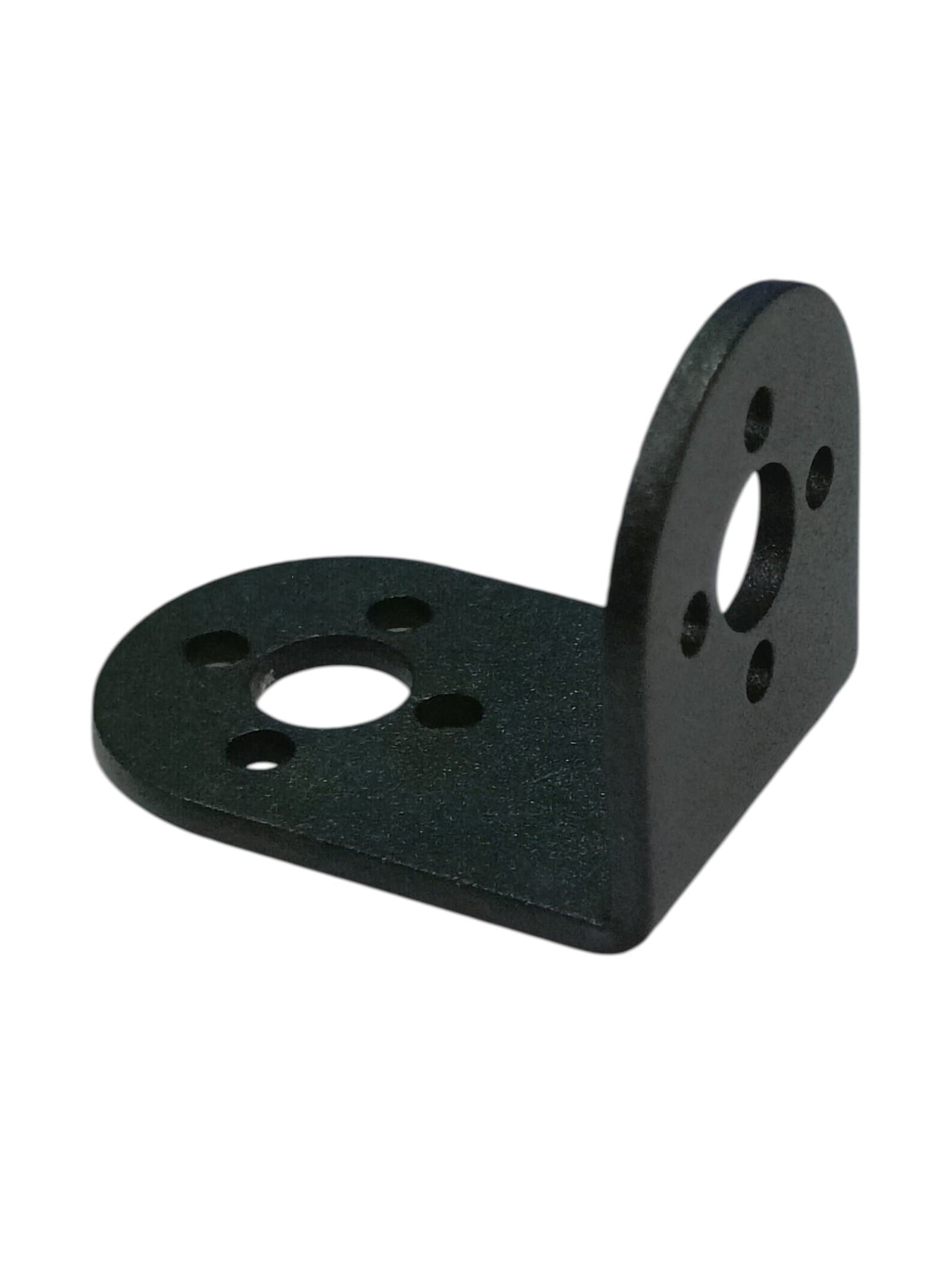

The L-Shaped Interconnect Servo Bracket is a lightweight, strong, and versatile mounting bracket designed for use with most standard-sized servo motors. It provides a convenient mechanical connection between servo motors and other components in robotic, RC, automation, and DIY projects.

The bracket is manufactured from 2mm hard aluminium, providing a good balance between strength, durability, and low weight. Its L-shaped construction allows servo motors and mechanical components to be connected at a 90-degree angle, making it suitable for creating custom robotic mechanisms and articulated structures.

Multiple mounting holes are provided on the bracket, allowing flexible installation and easy connection with compatible servo horns, servo motors, linkages, and other mechanical components. The various hole positions make it easier to design and build custom mechanisms using standard servo motors.

The bracket features a black sandblasting oxidation surface finish that gives it a clean appearance and helps provide a durable surface for regular mechanical use.

Features

• L-shaped interconnect servo mounting bracket
• Designed for most standard-sized servo motors
• Made from 2mm hard aluminium
• Lightweight and strong construction
• Black sandblasting oxidation finish
• Multiple mounting holes for flexible installation
• Suitable for connecting servo motors and mechanical components
• Allows creation of custom servo mechanisms
• Compact and lightweight design
• Suitable for robotic and automation applications
• Ideal for DIY and prototype projects
• Easy to integrate with standard servo components
• Suitable for Arduino and microcontroller-based robotics

Specifications

Parameter	Specification
Product Type	L-Shaped Interconnect Servo Bracket
Material	2mm Hard Aluminium
Surface Finish	Sandblasting Oxidation
Size	35 × 30 mm
Weight	Approximately 6 g
Colour	Black
Shape	L-Shaped
Servo Compatibility	Most Standard-Sized Servos
Mounting Type	Screw Mounting
Mounting Holes	Multiple Holes

Design and Construction

The L-Shaped Interconnect Servo Bracket is manufactured from 2mm hard aluminium to provide a strong yet lightweight mechanical mounting solution. The L-shaped design allows components to be mounted at an angle, making it useful for building articulated mechanisms and multi-axis robotic structures.

Multiple mounting holes are positioned along the bracket to provide flexibility when connecting servo motors, servo horns, linkages, and other mechanical parts. This allows users to select suitable mounting positions according to the requirements of their project.

With a weight of approximately 6 g, the bracket adds minimal load to servo-driven mechanisms while providing a rigid connection between components.

Working Principle

The bracket functions as a mechanical interconnect between a standard-sized servo motor and another mechanical component.

The servo motor or servo horn can be attached to the bracket using suitable screws through the available mounting holes. The opposite side of the L-shaped bracket can then be connected to another bracket, robot structure, linkage, or mechanical assembly.

When the servo rotates, the attached mechanism moves according to the servo’s rotation, allowing the bracket to be used for creating articulated joints, robotic movements, and custom mechanical mechanisms.

The bracket is a passive mechanical component and does not require any electrical power.

Applications

• DIY robotics projects
• Arduino robot projects
• Servo-controlled mechanisms
• Robotic arms
• Robotic joints
• Robot legs and walking robots
• Humanoid robot projects
• RC projects
• Custom servo mechanisms
• Multi-axis robotic assemblies
• Automation projects
• Mechanical prototypes
• Educational robotics
• Servo motor mounting
• Custom mechanical linkages
• Embedded robotics projects

Package Includes

• 1 × L-Shaped Interconnect Servo Bracket

Product Disclaimer

Product images are shown for illustrative and representational purposes only. The actual product may vary slightly in colour, dimensions, surface finish, hole positioning, or appearance depending on the manufacturing batch.

Servo motor, servo horn, screws, linkages, and other components shown in product images are not included unless specifically mentioned in the package contents.

Compatibility with a particular servo depends on the servo’s physical dimensions and mounting-hole arrangement. Please verify the dimensions and mounting pattern before installation.
