Side Shaft Motor Clamp for Johnson/Side Shaft Gear Motors

L Clamp for Side Shaft Motors

Product Description

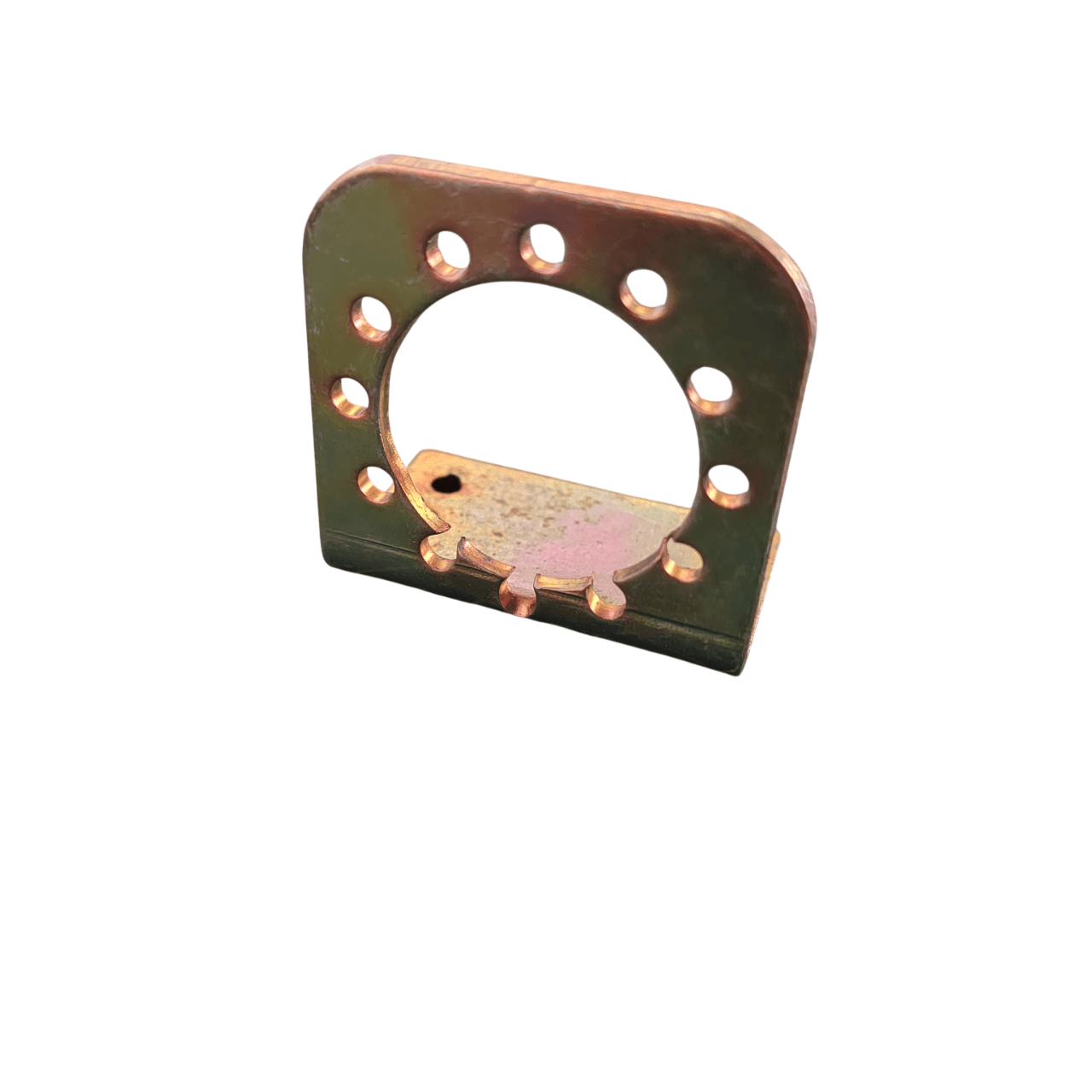

The L Clamp for Side Shaft Motors is a durable metal mounting bracket designed to securely attach off-centered side shaft motors and Johnson Gear Motors to robot chassis and mechanical platforms. Its strong construction provides a stable mounting solution for high-torque robotics, automation, and DIY mobile robot applications.

The L-shaped design allows motors to be mounted securely on flat chassis surfaces while helping maintain proper wheel and shaft alignment.

Maximum Stability

The bracket features 6 mounting holes on the base, providing multiple fixing points to distribute the motor load across the chassis. This helps reduce bracket movement, twisting, and loosening during vibration, high torque, rough terrain, or impact.

Universal Gearbox Compatibility

The clamp is designed for gearboxes commonly used with Side Shaft DC Motors and Johnson Gear Motors. The motor face sits against the bracket to provide a stable mounting position for drive systems.

Durable Metal Construction

Made from Mild Steel (MS) with an anti-rust finish, the bracket is designed to withstand mechanical loads and vibrations commonly encountered in robotics and automation projects.

Key Features

• Designed for Side Shaft / Off-Centered Motors
• Compatible with Johnson Gear Motors
• Strong Mild Steel construction
• L-shaped mounting design
• 6 base mounting holes
• Standard motor mounting holes
• Helps maintain motor and wheel alignment
• Suitable for high-torque applications
• Anti-rust black/zinc finish
• Easy to install

Technical Specifications

Feature	Specification
Material	Mild Steel (MS)
Shape	L-Type Bracket
Compatibility	Side Shaft DC Motors & Johnson Gear Motors
Chassis Mounting	6 Holes on Base
Motor Mounting	Standard Side Shaft Gearbox Face Holes
Finish	Anti-Rust Coating (Black/Zinc)
Screw Compatibility	M3/M4 Depending on Stock

Typical Application Scenarios

Mobile Robotics

Suitable for 2WD, 4WD, and 6WD robot platforms using side-shaft or Johnson gear motors.

All-Terrain Robots

Provides a secure motor mounting solution for rough-terrain and outdoor robotic platforms.

Combat Robotics

The multiple mounting holes help provide additional mechanical stability for robots exposed to vibration and impact.

Industrial Prototypes

Suitable for securely mounting motors in conveyors, lifting mechanisms, and other mechanical prototypes.

Custom Chassis

Useful for building custom robotic vehicles where reliable motor positioning and wheel alignment are important.

Applications

• Mobile robots
• 2WD robot cars
• 4WD robot cars
• 6WD robot platforms
• All-terrain robots
• Combat robots
• Johnson gear motor projects
• Side shaft motor projects
• DIY automation
• Conveyor mechanisms
• Motorized prototypes
• Custom robotic chassis

Package Includes

• 1 × L Clamp for Side Shaft Motors

Product Disclaimer

Product information may vary slightly between manufacturers, suppliers, and production batches. Please verify the actual bracket dimensions, hole spacing, and motor compatibility before installation.

Product images are for illustrative purposes only and may differ from the actual product in colour, finish, dimensions, or other visual details.

Important Note

Motor Compatibility

Before installation, confirm that your motor uses the Side Shaft / off-centered shaft configuration and that the gearbox mounting holes match the bracket.

Screw Selection

The mounting holes are generally compatible with M3/M4 screws, depending on the product version and available stock. Select screws of the correct length to avoid damage to the motor or chassis.

Finish Variation

The actual coating colour or finish may vary between black and zinc depending on availability.
