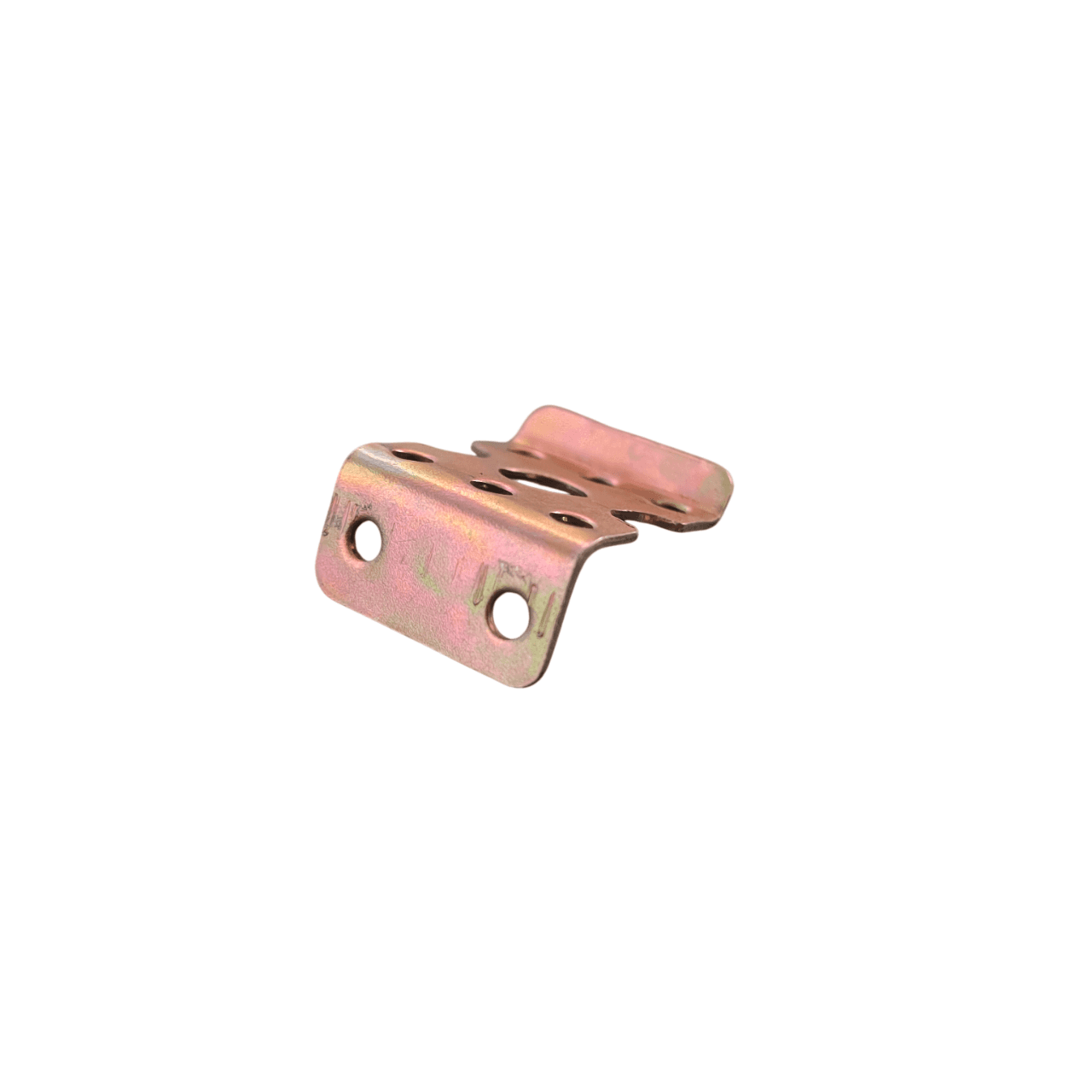

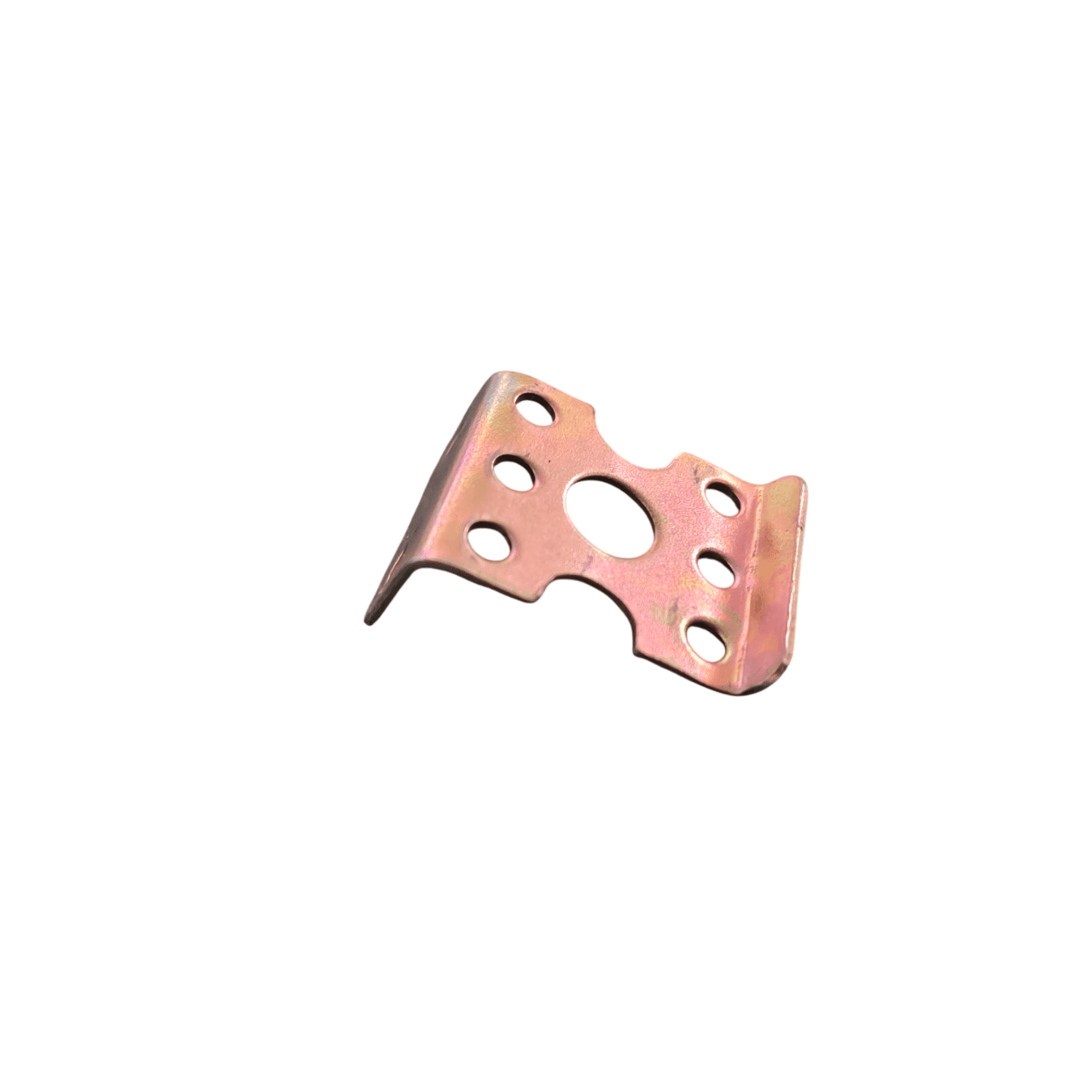

BO Motor Mounting Clamp

BO Motor Mounting Clamp

Product Description

The BO Motor Mounting Clamp is a compact and durable metal bracket designed specifically for standard yellow BO (Battery Operated) Motors. It provides a secure way to mount single-shaft or dual-shaft BO motors onto robot chassis and DIY mobile platforms.

Made from 1mm thick Mild Steel (MS), the clamp offers a good balance between strength, durability, and lightweight construction, making it suitable for small robotic vehicles and educational projects.

Precision Motor Fit

The clamp is designed to fit standard BO motor gearboxes and includes an 8mm diameter alignment hole that matches the motor’s mounting nub. This helps prevent the motor from rotating inside the bracket during operation and keeps the drive system securely positioned.

Easy Chassis Mounting

The base includes mounting holes that allow the bracket to be fixed to acrylic, wooden, metal, or other compatible robot chassis materials. Its compact design also helps save space for batteries, controllers, sensors, and other components.

Key Features

• Designed for standard BO Motors
• Compatible with single and dual-shaft motors
• Made from 1mm Mild Steel
• 8mm motor alignment hole
• Secure motor holding design
• Compact and lightweight
• Easy chassis installation
• Suitable for acrylic, wood, and metal chassis
• Ideal for 2WD and 4WD robot projects

Technical Specifications

Feature	Specification
Material	Mild Steel (M.S.)
Thickness	1mm
Motor Mounting Side	25mm (H) × 22mm (W)
Chassis Mounting Side	12mm (H) × 22mm (W)
Motor Hole Diameter	8mm
Compatibility	Standard BO Motors (L-Shape & Straight)

Typical Application Scenarios

Line Follower Robots

Suitable for securely mounting BO motors in line-following robotic platforms.

Obstacle Avoiding Robots

Ideal for 2WD and 4WD obstacle-avoiding robots and small mobile rovers.

RC Cars

Can be used to secure BO motors in DIY and hobby-grade robotic vehicles.

Educational Projects

A practical mounting solution for school, STEM, and beginner robotics projects.

Applications

• Line follower robots
• Obstacle avoiding robots
• 2WD robotic cars
• 4WD robotic cars
• DIY RC vehicles
• Arduino robotics
• Educational robotics
• STEM projects
• BO motor projects
• Small mobile robots

Package Includes

• 1 × BO Motor Mounting Clamp

Product Disclaimer

Product specifications may vary slightly between manufacturers and production batches. Product images are for illustrative purposes only and may differ from the actual product in colour, finish, dimensions, or other visual details.

Important Note

Motor Compatibility

This clamp is designed for standard yellow BO motors. Check the motor shape and mounting dimensions before installation to ensure proper fitment.

Installation

Use suitable screws according to your chassis material and verify that the motor is firmly secured before operating the robot.

Finish Variation

The actual colour or surface finish may vary depending on availability.
