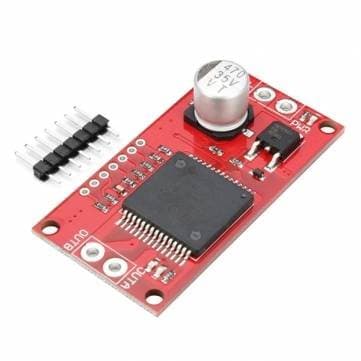

VNH2SP30 Motor driver module high current 30A

This is essentially a ramped up version of Ardumoto motor driver shield. For this monster shield we’ve replaced the L298 H-bridge with a pair of VNH2SP30 full-bridge motor drivers. We’ve also beefed up the support circuitry so this board is capable of driving a pair of high-current motors! The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires.

Features:?

Voltage max: 16V

Maximum current rating: 30 A

Practical Continuous Current: 14 A

Current sensing available to analog pin

MOSFET on-resistance: 19 m? (per leg)

Maximum PWM frequency: 20 kHz

Thermal Shutdown

Undervoltage and Overvoltage shutdown

Note:

When using this board in extreme high-demand applications it may be necessary to improve thermal performance with a heat-sink or fan and to solder the wires directly to the board instead of using a screw terminal (in addition to the myriad other complications present in a high-current system) However, when using the board at currents up to 6A the chips will barely become noticeably warm.

Package Included:

1 x 30A Mini VNH2SP30 Stepper Motor Driver ** The images shows are for representation only and actual product may slight differ in color and appearance.
