Optical Dust Sensor PM 2.5 Smoke Particle sensor

PM2.5 GP2Y1010AU0F Dust & Smoke Particle Sensor – Infrared-Based Air Quality Detection

The PM2.5 GP2Y1010AU0F Dust and Smoke Sensor is a high-precision optical sensor designed to detect fine airborne particles using an infrared emitting diode (IRED) and a phototransistor arranged diagonally. It measures the intensity of reflected light from particles, enabling accurate detection of dust, smoke, pollen, and spores in the air.

This sensor is especially effective for detecting fine particles such as cigarette smoke, and it can even distinguish smoke from regular house dust based on the pulse pattern of its output voltage. With its low power consumption (Max. 20mA) and compact design, it is widely used in air purifiers, air conditioners, dust removal systems, fire alarms, and air quality monitoring equipment.

Applications:

• Air quality detection in air purifiers and air monitors.

• Detection of dust, pollen, and smoke particles in various environments.

• Dust robots, fire alarm systems, and air conditioning units.

Key Features:

• RoHS Compliant: Environment-friendly and lead-free.

• Compact Size: 46.0 × 30.0 × 17.6 mm for easy integration.

• Low Current Consumption: Max. 20mA.

• Pulse-Based Detection: Detects particles with a single pulse photometry method.

• Distinguishes Smoke from Dust: Advanced output signal pattern analysis.

• Durable and Reliable: Designed for industrial and consumer applications.

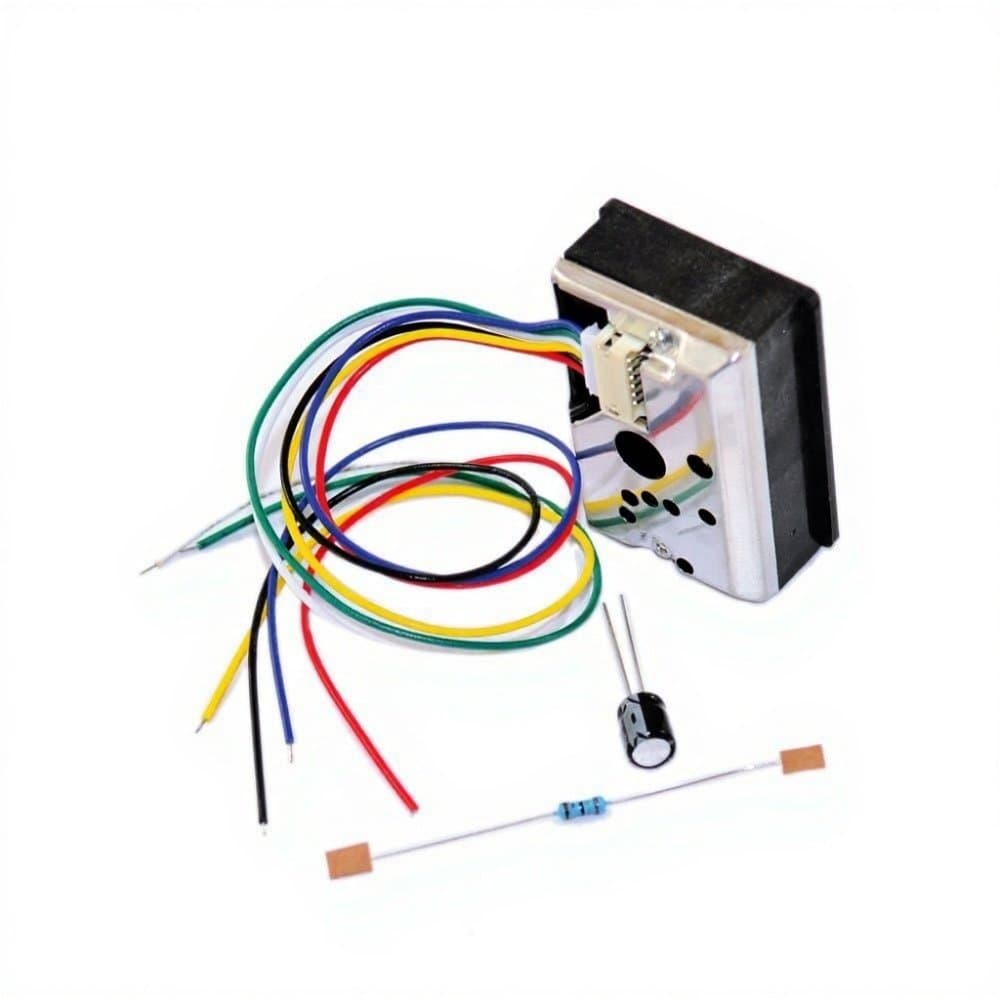

Package Includes:

• 1 x PM2.5 GP2Y1010AU0F Dust Smoke Particle Sensor.

• 1 x Connecting Cable.

• 1 x 150Ω Resistor.

• 1 x 220μF Capacitor.
