DSM501A PM2.5 Dust Sensor Module – Air Quality Monitor

DSM501A PM2.5 Dust Sensor Module

Product Description

The DSM501A PM2.5 Dust Sensor Module is a compact particle detection sensor designed to detect fine airborne particles as small as 1 micron, including smoke, pollen, house dust, and mites. It is suitable for air quality monitoring, smart air purifiers, HVAC systems, environmental sensing, and DIY projects.

The sensor uses a built-in heater-based thermal airflow system to naturally draw air into the sensing chamber without requiring an external fan. This provides quiet operation and makes the module easy to integrate into compact air-monitoring systems.

Thermal Airflow Detection

The DSM501A uses an internal heater to warm the surrounding air and create a natural upward convection flow. This airflow carries airborne particles through the sensing chamber, where the sensor detects their presence.

This design eliminates the need for an external fan and provides a simple, low-maintenance solution for particle detection.

Easy Microcontroller Interface

The sensor operates from a 5V DC supply and provides a PWM output based on low pulse occupancy time. This allows microcontrollers such as Arduino and other compatible systems to process the sensor signal and estimate particle concentration.

Key Features

• Detects particles as small as 1 micron
• Suitable for PM2.5/PM10-range particle detection
• Built-in heater for thermal airflow
• Silent operation without an external fan
• PWM low-pulse-occupancy output
• Adjustable sensitivity
• 5V DC operation
• Compact and lightweight design
• Suitable for Arduino and embedded projects
• Ideal for air quality monitoring

Technical Specifications

Feature	Specification
Model	DSM501A (Compatible with DSM501B)
Supply Voltage	5V DC
Output Signal	PWM (Low Pulse Occupancy)
Minimum Particle Size	1 Micron
Detectable Targets	Smoke, House Dust, Pollen, Mites
Warm-Up Time	~1–3 Minutes
Working Current	<90mA
Interface	5-Pin Connector
Connector Pins	VCC, GND, Vout1, Vout2, Control

Typical Application Scenarios

Smart Air Purifiers

Can be used to detect airborne particles and control an air purifier or ventilation fan automatically.

Air Quality Monitors

Suitable for DIY indoor air quality monitoring systems with displays or data logging.

HVAC Systems

Can be integrated into ventilation systems that respond to changes in airborne dust or smoke levels.

Environmental Monitoring

Useful for experimental and educational projects involving airborne particle detection.

Applications

• PM2.5 monitoring
• Air quality monitors
• Smart air purifiers
• HVAC systems
• Dust detection
• Smoke detection
• Environmental monitoring
• Arduino projects
• DIY air quality systems
• Educational electronics
• Embedded sensing systems
• Portable air monitors

Package Includes

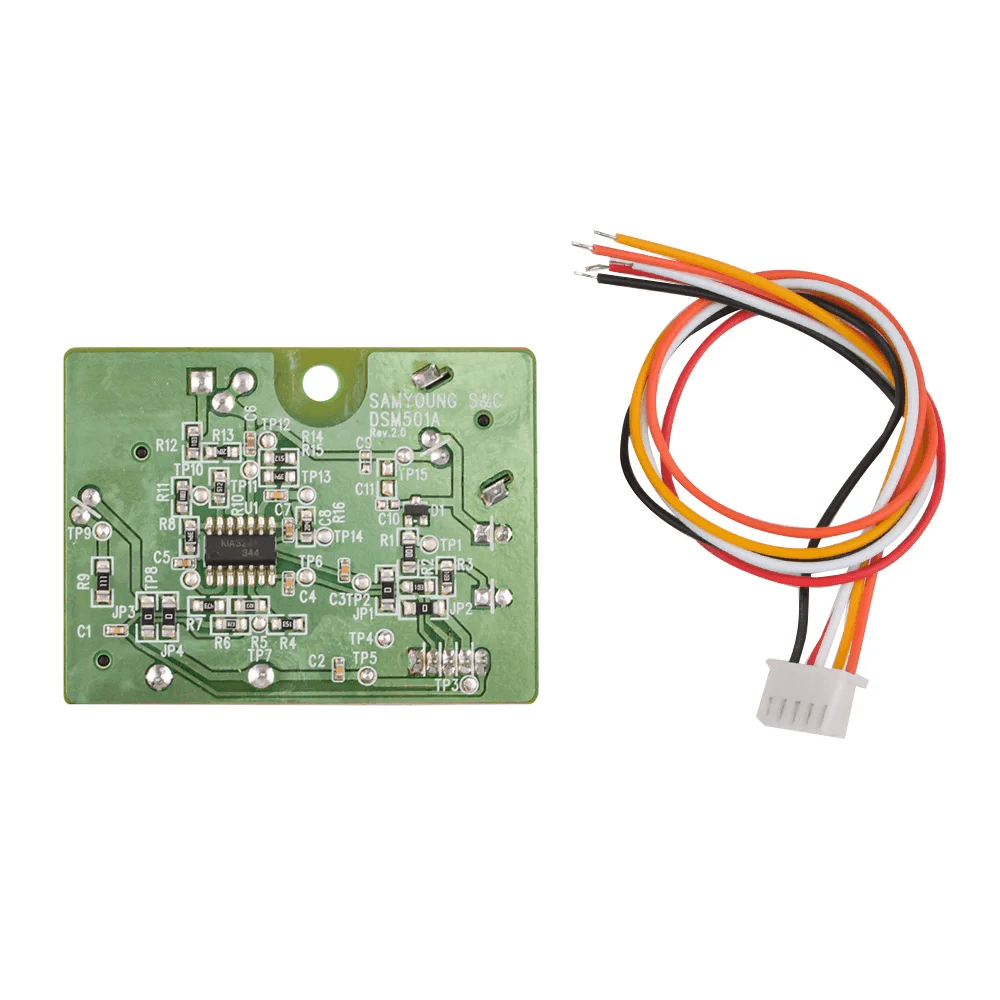

• 1 × DSM501A PM2.5 Dust Sensor Module
• 1 × Connecting Cable

Product Disclaimer

Product information provided on our website may not be entirely accurate as specifications can vary between manufacturers, suppliers, and production batches. Please verify the actual product specifications before using the sensor in critical applications.

Product images are for illustrative purposes only and may differ from the actual product in colour, component placement, connector design, or other visual details.

This sensor is intended for general air-quality and particle detection applications and should not be used as the sole safety device for critical smoke, fire, or hazardous-air monitoring.

Important Note

Mounting Orientation

The sensor relies on natural rising heat to create airflow and must be mounted vertically with the connector facing downward. Installing the sensor horizontally may prevent proper air circulation through the sensing chamber.

Warm-Up Time

Allow approximately 1–3 minutes after powering on for the internal heater to stabilize before taking measurements.

Label Variation

The product label may read DSM501B. According to the supplied product information, DSM501A and DSM501B are considered functionally identical in pinout and performance for this product.

Power Supply

Use a stable 5V DC power supply and ensure correct wiring before powering the module.
