5MP Raspberry Pi Camera Module (Rev 1.3)

Product Description

The 5MP Raspberry Pi Camera Module (Rev 1.3) is a compact and lightweight camera module designed for capturing high-resolution images and HD video with compatible Raspberry Pi boards. Featuring a 5-megapixel image sensor, it supports video recording up to 1080p at 30fps, making it suitable for surveillance, robotics, monitoring, and DIY projects.

The camera connects directly to the Raspberry Pi through the dedicated CSI (Camera Serial Interface) using the included 15-pin flexible ribbon cable. The CSI interface provides a direct connection between the camera and Raspberry Pi for efficient image and video data transfer.

With its 25 × 24 mm compact size and fixed-focus lens, the camera can be easily integrated into space-constrained projects. It is suitable for applications such as CCTV systems, robotic vision, time-lapse photography, drones, smart doorbells, and other embedded vision projects.

Features

• 5-megapixel camera sensor
• Supports HD video recording
• 1080p video at 30fps
• 720p video at 60fps
• VGA video modes up to 90fps
• CSI Camera Serial Interface
• Includes 15-pin flexible ribbon cable
• Fixed-focus lens
• Compact and lightweight design
• Easy integration with compatible Raspberry Pi boards
• Suitable for real-time vision applications
• No audio recording
• Ideal for DIY and embedded projects

Specifications

Parameter	Specification
Product Type	Raspberry Pi Camera Module
Revision	Rev 1.3
Sensor Resolution	5 Megapixel
Video Resolution	1080p @ 30fps
Video Resolution	720p @ 60fps
VGA Modes	640 × 480 @ 60/90fps
Interface	CSI Camera Serial Interface
Connector	15-Pin
Cable	Flexible Ribbon Cable
Lens Type	Fixed Focus
Camera Size	25 × 24 mm
Audio	Not Supported
Compatibility	Raspberry Pi boards with compatible CSI interface

Design and Construction

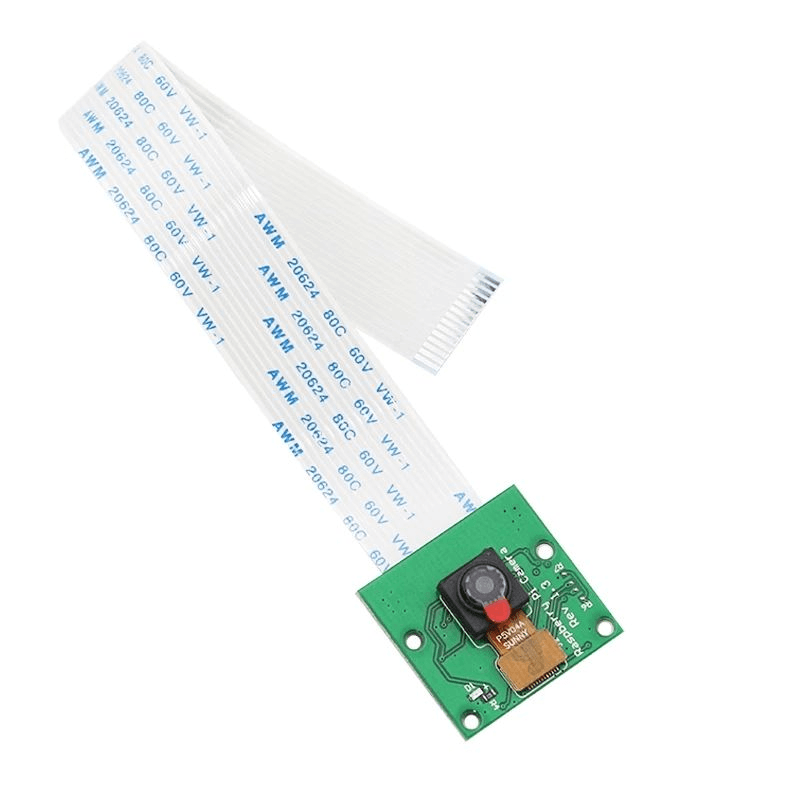

The camera features a small PCB-mounted camera sensor with a fixed-focus lens, providing a compact solution for embedded vision applications. Its lightweight construction makes it suitable for projects where space and weight are important considerations.

The included flexible ribbon cable allows the camera to be connected directly to the Raspberry Pi CSI camera interface. Its compact 25 × 24 mm form factor makes it easy to mount inside custom enclosures, robots, drones, monitoring systems, and other projects.

Working Principle

The camera sensor captures light through its fixed-focus lens and converts the optical information into digital image data. The data is transferred to the Raspberry Pi through the CSI interface, where it can be processed, displayed, stored, or used by software applications.

The camera can be used for both still-image capture and video recording. Depending on the selected resolution and frame rate, it supports modes such as 1080p at 30fps, 720p at 60fps, and VGA at up to 90fps.

Applications

• Raspberry Pi CCTV systems
• Home security cameras
• Robotics and machine vision
• Object detection projects
• Time-lapse photography
• Plant monitoring
• 3D printing monitoring
• Drone projects
• Smart doorbells
• Video surveillance
• DIY camera systems
• IoT vision projects
• Educational projects
• Embedded vision applications

Compatible Platforms

• Raspberry Pi 3 Model B
• Raspberry Pi 3 Model B+
• Raspberry Pi 4 Model B
• Other Raspberry Pi boards featuring a compatible CSI camera interface

Package Includes

• 1 × 5MP Raspberry Pi Camera Module (Rev 1.3)
• 1 × 15-Pin Flexible Ribbon Cable

Product Disclaimer

Compatibility depends on the Raspberry Pi model, CSI connector, operating system, and camera software being used. Please verify the camera interface and connector compatibility before installation.

The camera uses a fixed-focus lens and does not include an onboard microphone, so it is intended for image and video capture only.

Product images are for representation only. The actual product may vary slightly in colour, appearance, component placement, or construction depending on the manufacturing batch.
