HLK-FPM383F Mini Capacitive Fingerprint Sensor – 3.3V UART

HLK-FPM383F Capacitive Fingerprint Recognition Sensor Module – Low Power UART Fingerprint Sensor

Product Description

The HLK-FPM383F Capacitive Fingerprint Recognition Sensor Module is a compact biometric fingerprint sensor designed for modern security, authentication, and identification applications. Using capacitive fingerprint sensing technology, it provides a practical solution for embedded systems that require fingerprint-based user identification in a small form factor.

The module is designed for low-power applications and operates from a 3.3V supply, making it suitable for battery-powered devices, portable electronics, smart locks, security systems, and embedded IoT products.

Its low-power sleep mode can consume up to only 25µA, helping reduce energy consumption when the fingerprint sensor is not actively being used. The module also provides fast communication through a UART interface with a default baud rate of 57600 bps.

The HLK-FPM383F supports storage for up to 50 fingerprints, making it suitable for small user-authentication systems such as electronic locks, safes, access-control devices, and personal security products.

With integrated ±15kV static protection and an operating temperature range of -20°C to 55°C, the module is designed for reliable use in a variety of embedded environments.

Features

• Capacitive fingerprint sensing technology
• Compact biometric fingerprint recognition module
• 3.3V operating voltage
• Low-power operation
• Sleep mode current up to 25µA
• Supports up to 50 fingerprint templates
• UART communication interface
• Default baud rate of 57600 bps
• 256 grayscale pixel resolution
• ±15kV static / ESD protection
• 6-pin connector
• 1.0mm connector pitch
• Suitable for battery-powered applications
• Compact design for embedded systems
• Suitable for smart locks and security devices
• Ideal for portable biometric applications

Specifications

Parameter	Specification
Product Type	Fingerprint Recognition Sensor Module
Model	HLK-FPM383F
Sensor Type	Capacitive
Supply Voltage	3.3V
Supply Current	40mA (Max)
Sleep Mode Current	25µA (Max)
Fingerprint Storage	50 Fingerprints
Resolution	256 Grayscale Pixels
Communication	UART
Baud Rate	57600 bps
Static Protection	±15kV
Operating Temperature	-20°C to 55°C
Connector	6-Pin
Connector Pitch	1.0mm

Working Principle

The HLK-FPM383F uses capacitive sensing technology to detect the unique ridge and valley patterns of a fingerprint.

When a finger is placed on the sensor, the module captures the fingerprint pattern and processes the biometric information internally. The fingerprint can then be enrolled into the module’s internal memory or compared with previously stored fingerprint records for authentication.

The module communicates with the host controller through its UART interface. A compatible microcontroller can send commands to perform supported fingerprint functions such as enrollment, verification, identification, and user management.

Low-Power Operation

The module is designed for applications where power consumption is important. During normal operation, the module consumes up to approximately 40mA, while its sleep mode can reduce consumption to a maximum of approximately 25µA.

This makes the sensor suitable for battery-powered devices that remain in standby for long periods and only activate the fingerprint sensor when user interaction is detected or authentication is required.

ESD Protection

The HLK-FPM383F includes ±15kV static protection, helping improve the module’s resistance to electrostatic discharge during normal handling and operation.

This makes it suitable for embedded products such as locks, access-control devices, portable electronics, and other user-facing systems where the sensor may be touched frequently.

Communication Interface

The module uses a UART communication interface for connection with a compatible microcontroller or embedded controller.

The specified default communication speed is 57600 bps. The 6-pin, 1.0mm-pitch connector is located on the rear side of the module.

Users should refer to the supplied datasheet and pinout information before connecting the module to a microcontroller.

Typical Application Scenarios

Smart Door Locks

Suitable for fingerprint-enabled door locks and access-control systems where compact biometric authentication is required.

Jewelry Boxes and Safes

Can be integrated into small security products such as jewelry boxes, safes, lockers, and personal storage systems.

Access Control

Useful for user authentication in small access-control systems and equipment requiring fingerprint verification.

Portable Electronics

The low-power design makes it suitable for handheld and battery-powered devices requiring biometric protection.

Embedded Security

Can be integrated into IoT devices, custom controllers, and embedded security products for fingerprint-based user authentication.

Applications

• Fingerprint door locks
• Smart locks
• Electronic safes
• Jewelry boxes
• Security cabinets
• Access control systems
• User authentication systems
• Portable biometric devices
• Battery-powered security products
• POS and identification systems
• Embedded IoT security
• Arduino fingerprint projects
• ESP32 fingerprint projects
• Microcontroller biometric systems
• Custom security devices
• Educational biometric projects

Package Includes

• 1 × HLK-FPM383F Fingerprint Recognition Sensor Module

Product Datasheet

Download the HLK-FPM383F Datasheet

Product Disclaimer

Product images are shown for illustrative and representational purposes only. The actual module may vary slightly in PCB colour, connector placement, dimensions, sensor appearance, component arrangement, or labeling depending on the manufacturing batch.

Microcontroller boards, cables, power supplies, mounting hardware, enclosures, and other accessories shown in product images are not included unless specifically mentioned in the package contents.

Fingerprint recognition performance may vary depending on fingerprint condition, sensor cleanliness, installation, environmental conditions, and software configuration.

Important Notes

Connection Detail

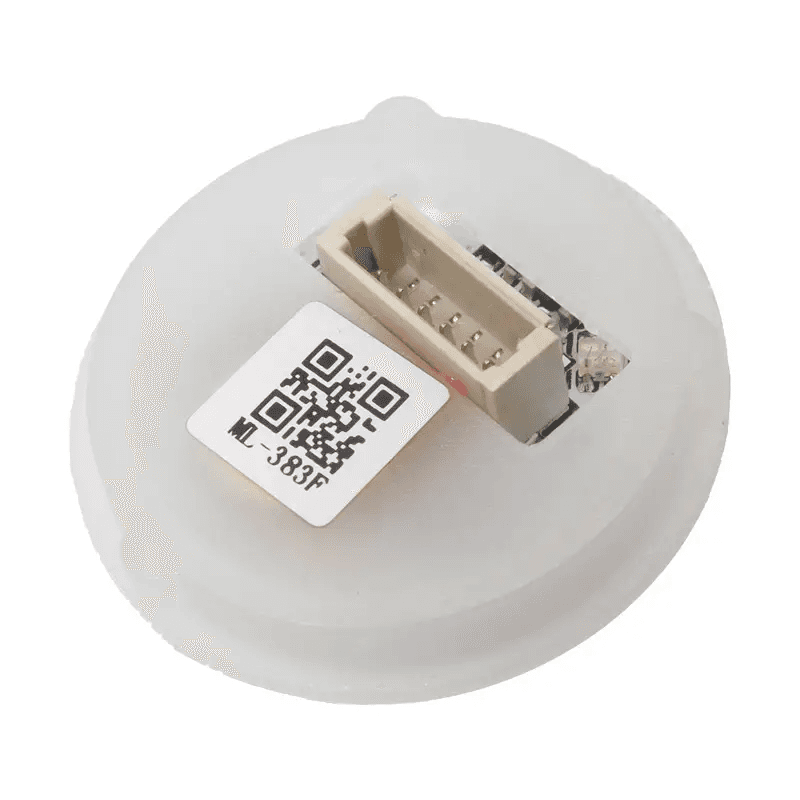

The module uses a 6-pin connector with a 1.0mm pitch located on the back of the sensor.

Wiring

Use the pinout information provided in the product images and datasheet to correctly connect the module to a compatible 3.3V microcontroller.

Power Supply

Use a stable 3.3V supply and ensure the power source can provide sufficient current for normal sensor operation.
