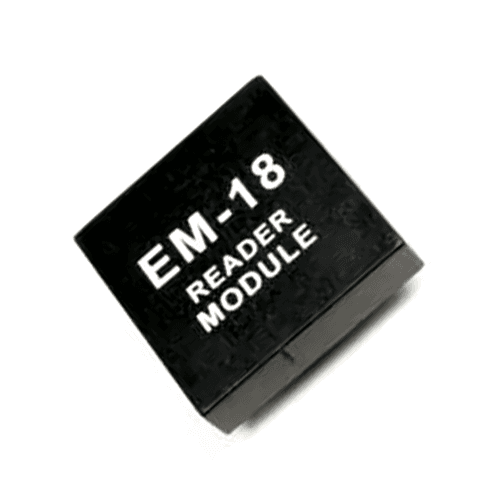

EM18 RFID Module

EM-18 RFID Reader is one of the commonly used module for Radio Frequency Identification Projects. It can be directly interfaced with a microcontrollor using UART communication and with a PC using a RS232 converter. This module can work with any 125KHz RFID tags and it can provide UART / Wiegand26 output formats. Pitch of output pins are 2.54mm, thus it can be directly inserted to a breadboard for project developing. This is EM18 Module with PCB for TTL interface as well as RS232 Interface.

Features:

• This RFID Reader Module 125Khz is eary to use
• It is Low Cost
• It gives RS-232 and TTL Output
• Need very less external component to drive
• TTL Level Compatible (Directly connected to microcontroller)
• Small Buzzer & LED available to know about the card presence
• High Quality PCB material & Original component only
• Each module tested with automatic testing machine

Applications:

• Security & Surveillance
• Smart Home System
• Automotive Domain
• Industrial Domain

Specifications:

• Compatible Card codes:Manchester64-bit,modules64
• Current Rating: 35mA (Max)
• Output:TTL and UART

Pin Details:

• GND: Ground of the unit
• TX: TTL Tx out
• VCC: 5V
• Pin: 1 to 3

Please Note: Images are for representation only. The actual Product may differ slightly in appearance.
