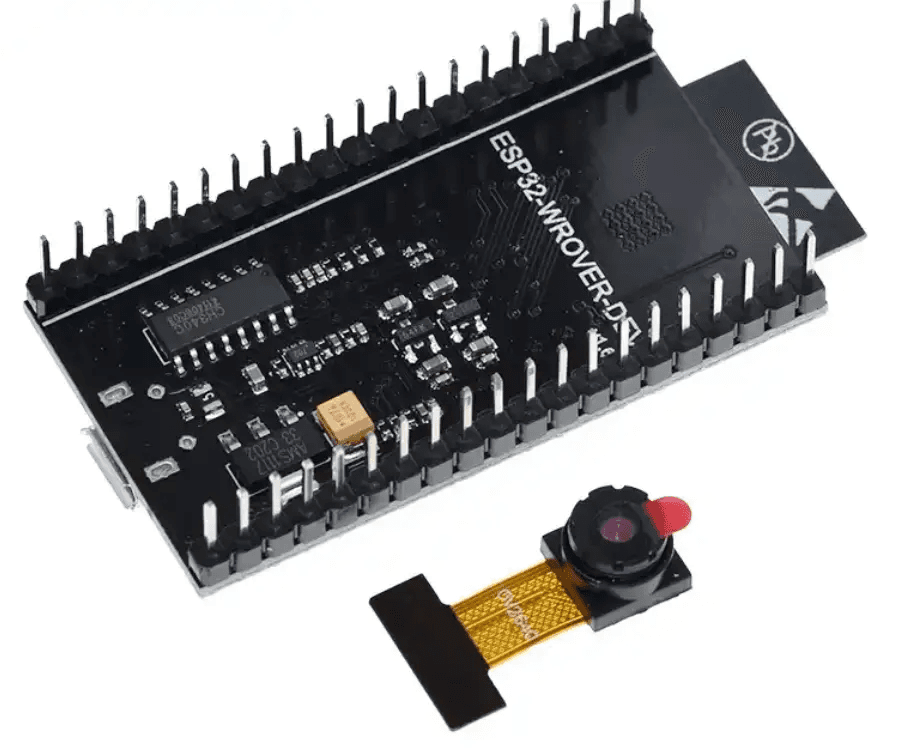

ESP32-WROVER CAM Board with OV2640 Camera

ESP32-WROVER CAM Board with OV2640 Camera

ESP32-WROVER CAM Board with OV2640 Camera is a compact Wi-Fi and Bluetooth camera development board for IoT camera projects, wireless video streaming, robotic vision, remote monitoring, image capture, smart home monitoring, and embedded vision learning. It is based on the Espressif ESP32 platform and includes an OV2640 camera module, therefore it is useful for projects where image capture or live camera output is required in a small form factor.

This board is suitable for students, makers, hobbyists, developers, and embedded system engineers who want to build ESP32 camera-based projects using Arduino IDE, ESP-IDF, C, or C++. It can be used for local Wi-Fi camera streaming, image capture, IoT camera monitoring, robotic camera systems, automation projects, and remote observation prototypes.

Why Use ESP32-WROVER CAM Board?

The ESP32-WROVER CAM Board combines camera support, wireless connectivity, and ESP32 processing in one compact development board. Since it supports Wi-Fi, users can create a camera web server and view the camera output over a local network. Bluetooth support can also be used for selected short-range communication, setup, or control applications depending on the firmware.

The onboard OV2640 camera is suitable for basic image capture, video streaming experiments, remote monitoring, robotic vision prototypes, and object observation projects. For heavy AI image processing, a more powerful edge AI board or external server may be required.

ESP32-WROVER CAM Board Features

ESP32-based Wi-Fi and Bluetooth camera development board

Built-in OV2640 camera module for image capture and video streaming

Suitable for IoT camera projects and wireless monitoring applications

Can be used for local Wi-Fi camera streaming using suitable firmware

Useful for robotic vision, smart home monitoring, and automation projects

Processor speed up to 240 MHz, depending on ESP32 configuration

Supports Arduino IDE, ESP-IDF, C, and C++ development

Compact board size for space-limited embedded camera projects

Suitable for educational, DIY, prototype, and development use

Can be integrated with web servers, IoT platforms, MQTT systems, or custom applications using suitable firmware

ESP32-WROVER CAM Board Compatibility

The ESP32-WROVER CAM Board with OV2640 Camera is compatible with common ESP32 development environments and project workflows. It can be programmed using Arduino IDE and ESP-IDF. Advanced users can develop custom firmware using C or C++.

Arduino IDE: Supported with ESP32 board package and compatible ESP32 camera examples

ESP-IDF: Supported for advanced ESP32 firmware development

C / C++: Supported

MicroPython: Limited or firmware-dependent camera support

Wi-Fi Camera Streaming: Supported using suitable ESP32 camera web server firmware

IoT Integration: Possible using HTTP, MQTT, web API, or custom firmware

Robotics Projects: Suitable for basic robotic vision and remote camera viewing

Typical Applications of ESP32-WROVER CAM Board

IoT camera projects

Wireless video streaming

ESP32 camera web server projects

Robotic vision systems

Remote monitoring devices

Smart home camera projects

Security and surveillance prototypes

Image capture projects

Automation systems with camera feedback

Sensor-based camera trigger projects

Embedded vision learning

Camera-based attendance prototypes

Object monitoring experiments

Educational ESP32 camera projects

How ESP32-WROVER CAM Board Can Be Used

Users can start by installing the ESP32 board package in Arduino IDE and uploading an ESP32 camera web server example. After entering the Wi-Fi SSID and password in the code, the board can stream camera output over a local network. The camera feed can be viewed in a browser using the IP address shown in the serial monitor.

For advanced projects, the ESP32-WROVER CAM Board can be connected to a local server, cloud server, IoT dashboard, MQTT platform, or custom application. It can also be used in robotics projects where remote camera viewing or basic image capture is required.

Important Usage Notes

Use a stable 5V power supply for reliable camera streaming.

Use a good-quality USB cable or programming connection.

Camera pin configuration may vary depending on the exact board version.

Available GPIO pins may be limited because many pins are used by the camera interface.

Do not connect motors, relays, or high-current loads directly to ESP32 GPIO pins.

For heavy AI vision processing, use an external server or dedicated edge AI board.

Package Includes

1 × ESP32-WROVER CAM Board with OV2640 Camera

Product Disclaimer

Product specifications, flash memory, PSRAM, PCB color, camera connector, antenna type, pinout, board layout, dimensions, markings, and minor hardware details may vary depending on stock availability, supplier batch, or manufacturer updates. Please verify the actual board, pinout, and technical details before using this product in final projects.

Images are for representation only. The actual product may differ slightly in appearance, color, size, shape, markings, layout, packaging, or accessories.
