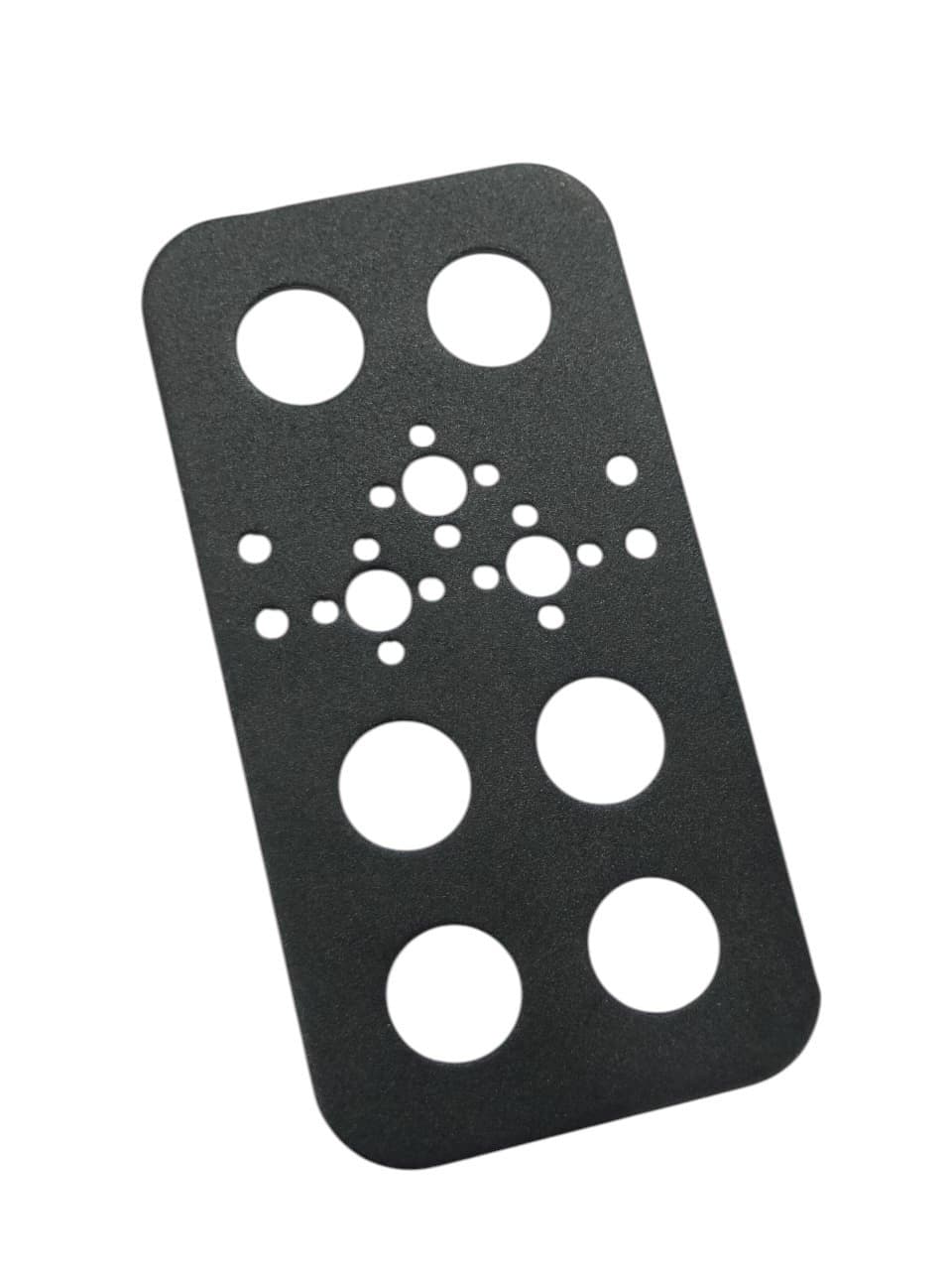

Robot Foot Base Mount Bracket – Aluminium Servo Bracket

Product Description

The Robot Foot Base Mount Bracket is a lightweight and durable aluminium mounting bracket designed for building robotic legs, feet, and servo-driven mechanisms. It is suitable for mounting standard-sized servos in DIY robotics, Arduino projects, RC applications, automation systems, and custom mechanical assemblies.

Manufactured from 2mm hard aluminium, the bracket provides a strong yet lightweight mounting solution for robotic structures. Its rigid construction helps provide stable support for the servo while keeping the overall weight of the robot low.

The bracket features a black sandblasted and oxidized surface finish that provides a clean appearance and helps improve surface durability. Its compact design makes it suitable for use in robot foot assemblies and other servo-based mechanical structures.

This servo bracket can be used with most standard-sized servos, making it a convenient component for robot-building and prototyping applications. It can be combined with servo motors, servo horns, linkages, brackets, and other mechanical components to create articulated robotic systems.

Features

• Robot foot base mounting bracket
• Designed for most standard-sized servos
• Made from 2mm hard aluminium
• Lightweight yet strong construction
• Black surface finish
• Sandblasting oxidation surface treatment
• Suitable for robotic leg and foot assemblies
• Provides stable servo mounting support
• Compact and practical mechanical design
• Suitable for DIY robotics and automation projects
• Easy to integrate with custom robot structures
• Ideal for Arduino and microcontroller-based robotics
• Suitable for prototype and educational projects

Specifications

Parameter	Specification
Product Type	Robot Foot Base Mount Bracket
Material	2mm Hard Aluminium
Surface Finish	Sandblasting Oxidation
Colour	Black
Weight	Approximately 32 g
Servo Compatibility	Most Standard-Sized Servos
Mounting Type	Mechanical Screw Mounting
Application	Robot Foot / Servo Mounting

Design and Construction

The Robot Foot Base Mount Bracket is manufactured from 2mm hard aluminium to provide a balance between strength and weight. The aluminium construction helps maintain structural rigidity while minimizing unnecessary weight in robotic assemblies.

The sandblasting oxidation treatment gives the bracket a black, durable surface finish and a clean professional appearance. The rigid metal construction makes it suitable for repeated mechanical movement in servo-operated robot assemblies.

Its compact form allows it to be incorporated into custom robot feet, legs, joints, and other servo-driven mechanisms.

Working Principle

The bracket acts as a mechanical mounting interface between a standard-sized servo motor and the robot’s foot or structural assembly.

The servo is secured to the bracket using suitable mounting screws. The bracket can then be attached to the robot’s foot, leg, frame, or other mechanical structure. When the servo rotates, the attached mechanical linkage or servo horn transfers the servo movement to the robotic structure.

The bracket itself does not contain any electrical components and does not require a separate power supply.

Applications

• DIY robot projects
• Robot foot assemblies
• Robotic leg mechanisms
• Arduino robotics projects
• Servo-controlled robots
• RC robotics applications
• Educational robotics projects
• Custom robotic arms and mechanisms
• Servo motor mounting
• Automation projects
• Mechanical prototype development
• Custom robot chassis
• Walking robot projects
• Humanoid robot projects
• Embedded robotics systems

Package Includes

• 1 × Robot Foot Aluminium Servo Bracket

Product Disclaimer

Product images are shown for illustrative and representational purposes only. The actual product may vary slightly in colour, dimensions, surface finish, hole positioning, or appearance depending on the manufacturing batch.

Servo motor, screws, servo horn, robot foot, and other components shown in product images are not included unless specifically mentioned in the package contents.

Compatibility with a particular servo depends on the servo’s physical dimensions and mounting-hole arrangement. Please verify the dimensions and mounting pattern before installation.
