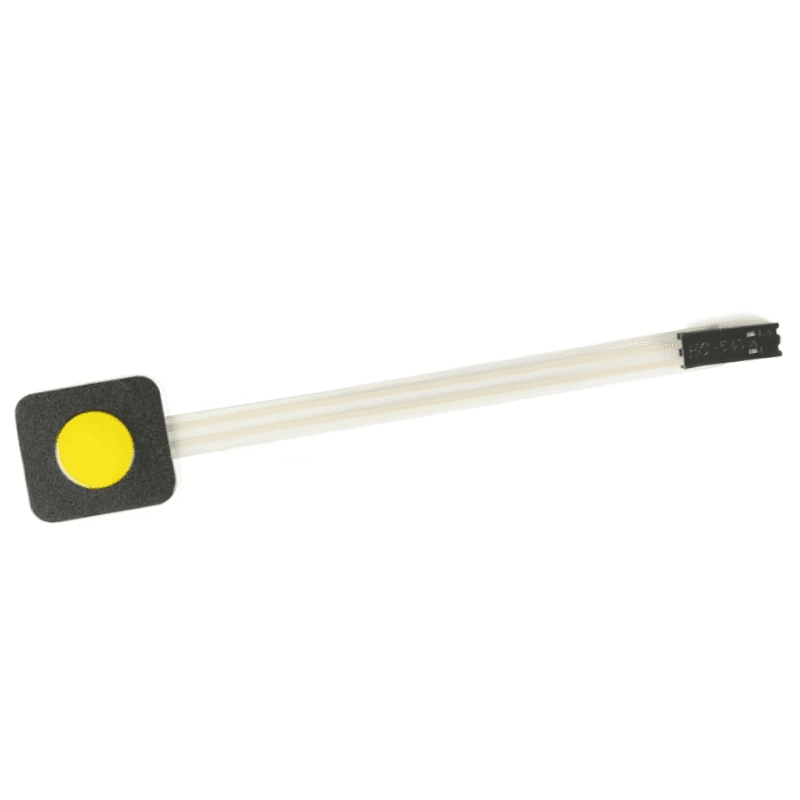

1 Key 1×1 Matrix Membrane Switch Keypad – Yellow

The 1 Key 1×1 Matrix Membrane Switch Keypad – Yellow is a compact, lightweight, and durable input switch designed for microcontroller, embedded electronics, automation, and DIY projects. It features a single yellow membrane button that can be used for simple control functions such as start, stop, reset, trigger, mode selection, or menu navigation.

The keypad operates as a normally open momentary switch. When the button is pressed, the internal contacts close the circuit and generate an input signal. Once released, the switch automatically returns to its normally open state.

Its slim and flexible construction makes it suitable for mounting on control panels, project enclosures, machines, and electronic prototypes. The self-adhesive backing allows quick installation without requiring additional screws or brackets. A simple 2-pin interface makes the keypad easy to connect to Arduino, Raspberry Pi, ESP32, ESP8266, and other development boards.

Features

• Single-key 1×1 membrane keypad
• Yellow circular push button
• Momentary normally open switch
• Slim, lightweight, and flexible construction
• Self-adhesive backing for easy mounting
• Simple 2-pin electrical interface
• Suitable for low-voltage digital circuits
• Easy to interface with microcontrollers
• Ideal for start, stop, reset, and trigger functions
• Suitable for educational and industrial projects

Specifications

Parameter	Specification
Key Configuration	1×1 Matrix
Number of Keys	1
Switch Type	Momentary
Contact Type	Normally Open (NO)
Output Interface	2-Pin Connector
Connector Pitch	2.54 mm
Button Colour	Yellow
Pad Size	23 × 20 mm
Overall Length	Approximately 115 mm
Thickness	Approximately 1 mm
Weight	Approximately 3 g
Mounting Type	Self-Adhesive Backing
Operating Voltage	Suitable for Low-Voltage Digital Circuits
Operating Temperature	-40°C to 85°C

Working Principle

The two output pins remain electrically open when the button is not pressed. Pressing the yellow membrane key closes the internal contacts, allowing current to pass through the switch. When the button is released, the contacts open again.

The keypad can be connected between a microcontroller input pin and ground. The internal pull-up resistor of the microcontroller may be enabled to obtain a stable digital input.

Applications

• Arduino projects
• Raspberry Pi projects
• ESP32 and ESP8266 projects
• DIY electronic circuits
• Home automation systems
• Industrial control panels
• Reset and trigger switches
• Start and stop controls
• Menu selection buttons
• Robotics projects
• Embedded system interfaces
• Educational electronics projects
• Prototype development
• Custom control enclosures

Package Includes

• 1 × 1 Key 1×1 Matrix Membrane Switch Keypad – Yellow

Product Disclaimer

Product images are shown for illustrative and representational purposes only. The colour, dimensions, connector design, printing, or appearance of the actual product may vary slightly depending on the manufacturing batch.
