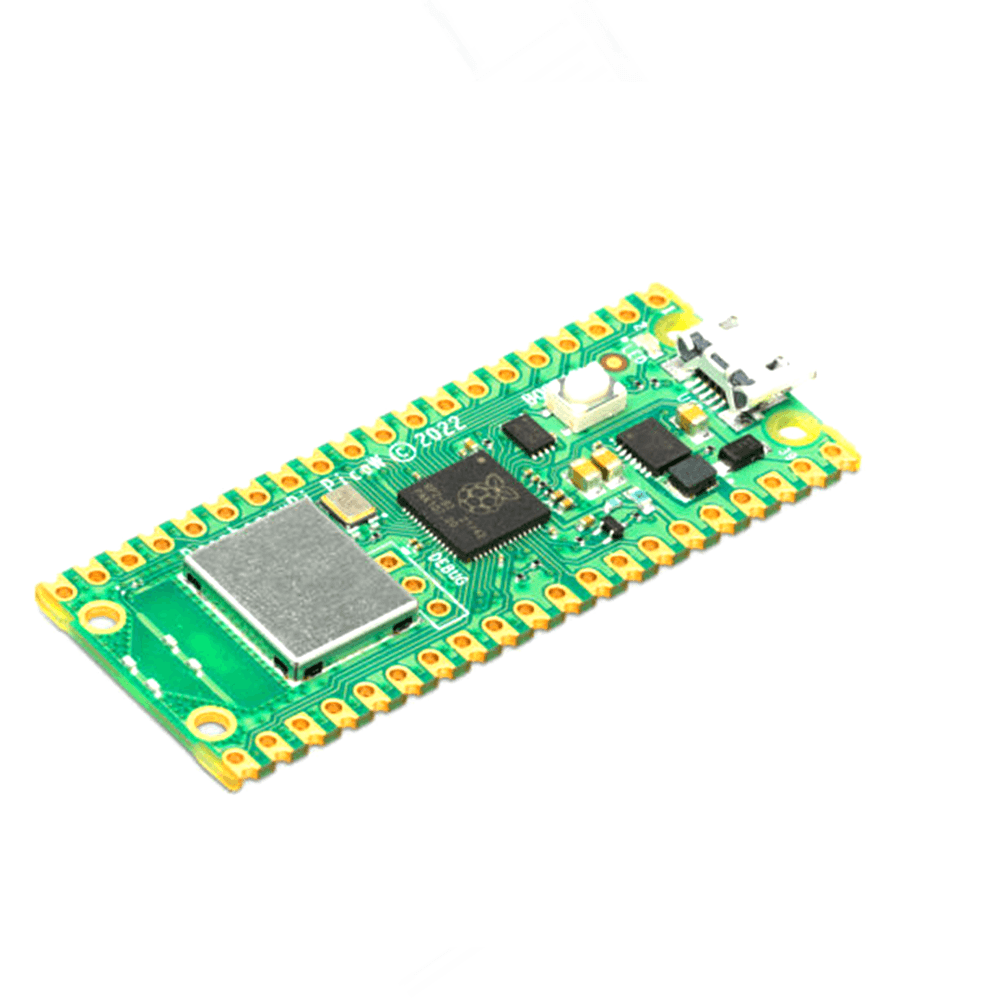

Raspberry Pi Pico W

Raspberry Pi Pico W is Raspberry Pi‘s first wireless microcontroller board, designed especially for physical computing. It is the successor of the popular Raspberry Pi Pico board. Similar to the Pico board, which we discussed earlier, the Pico W board is also built around the Raspberry Foundation in-house ARM chip RP2040. The main improvement is the addition of Wi-Fi and Bluetooth functionality. Raspberry Pi Pico W incorporates an Infineon CYW43439 wireless chip that supports IEEE 802.11 b/g/n wireless LAN, and Bluetooth 5.2. Raspberry Pi Pico W Specifications

• RP2040 microcontroller chip designed by Raspberry Pi in
• Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
• 264kB of SRAM, and 2MB of onboard Flash memory
• On-board single-band 2.4GHz wireless interfaces (802.11n)
• Castellated module allows soldering directly to carrier boards
• USB 1.1 Host and Device support
• Low-power sleep and dormant modes
• Drag & drop programming using mass storage over USB
• 26 multi-function GPIO pins
• 2×SPI, 2×I2C, 2×UART, 3×12-bit ADC, 16×controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating point libraries on-chip
• 8×Programmable IO (PIO) state machines for custom peripheral support

Please Note: Images are for representation only. The actual Product may differ slightly in appearance.
