Product Description

The Raspberry Pi Cobbler Plus is a convenient prototyping accessory designed to make working with the Raspberry Pi’s 40-pin GPIO header easier and more organized. It breaks out the Raspberry Pi’s GPIO, power, I2C, SPI, and other header connections onto a breadboard-friendly interface, making it simple to build and test electronic circuits.

The Cobbler Plus is especially useful for solderless breadboard prototyping, allowing you to connect sensors, LEDs, switches, displays, motors, and other electronic modules without repeatedly working directly on the Raspberry Pi header. Its straightforward breakout design makes circuit development faster and more convenient for both beginners and experienced makers.

It is ideal for experimenting with Raspberry Pi GPIO functions, developing prototypes, testing circuits, and building DIY electronics, robotics, automation, and IoT projects.

Features

• Designed for Raspberry Pi 40-pin GPIO header
• Breaks out GPIO connections for easy access
• Provides convenient access to power and ground pins
• Supports I2C and SPI connections
• Designed for solderless breadboard prototyping
• Simplifies circuit wiring and experimentation
• Easy to connect external electronic components
• Suitable for sensors, LEDs, switches, and modules
• Compact and convenient prototyping solution
• Ideal for Raspberry Pi DIY and educational projects

Specifications

Parameter	Specification
Product Type	Raspberry Pi Cobbler Plus
GPIO Interface	40-Pin
Compatible Header	Raspberry Pi 40-Pin GPIO
Breakout	GPIO, Power, Ground, I2C, SPI
Connection Type	Breadboard Prototyping
Breadboard Type	Solderless
Application	Prototyping and Circuit Development
Compatibility	Raspberry Pi Boards with 40-Pin GPIO Header

Design and Construction

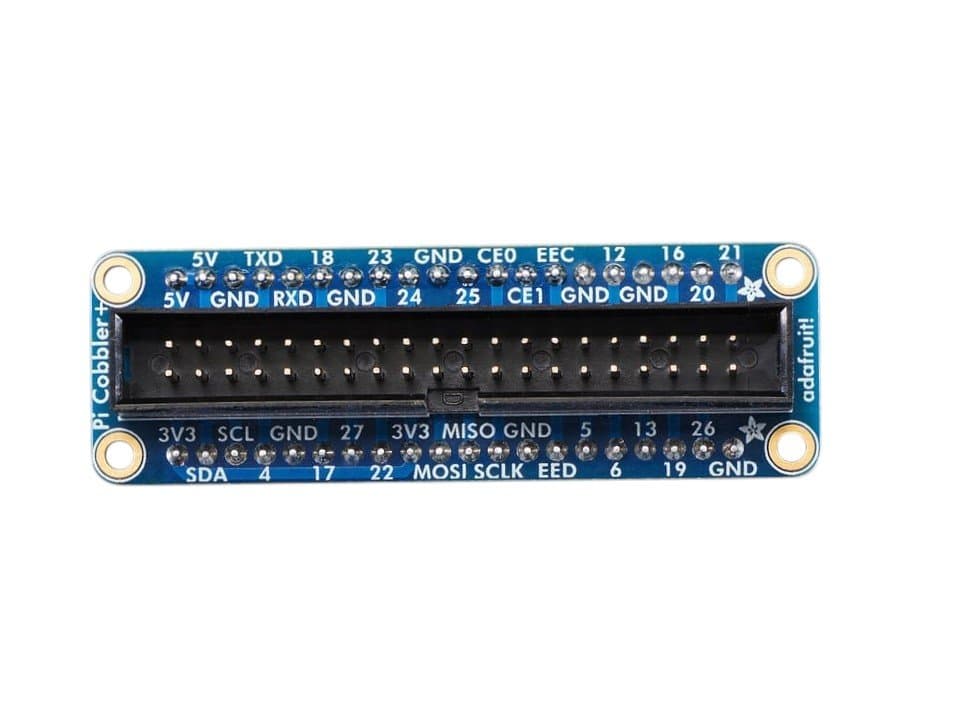

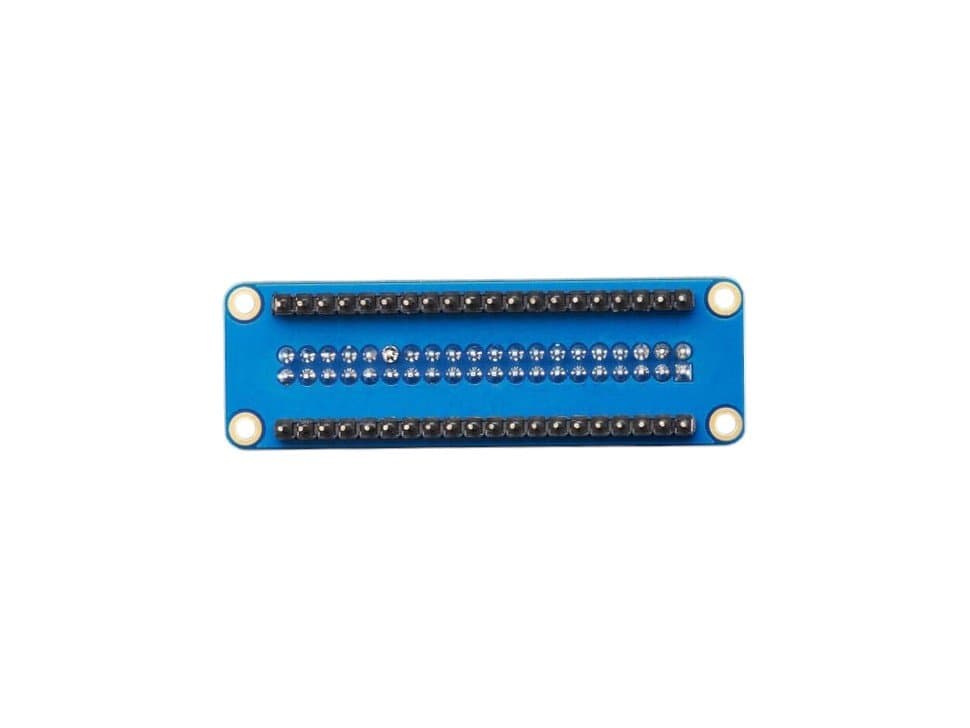

The Cobbler Plus is designed as a 40-pin GPIO breakout interface, providing an organized way to access the Raspberry Pi header connections. It allows the pins to be routed conveniently to a solderless breadboard, reducing the need for complicated direct connections to the Raspberry Pi.

The clearly organized breakout arrangement makes it easier to identify and connect GPIO, power, ground, I2C, and SPI signals during circuit development.

Working Principle

The Cobbler Plus connects to the Raspberry Pi through its 40-pin GPIO header and exposes the corresponding connections for use with external circuits. GPIO signals can be connected to electronic components on a solderless breadboard, while power and ground connections provide the required electrical connections for compatible circuits.

The I2C and SPI pins can also be accessed for connecting supported sensors, displays, communication modules, and other peripherals.

Applications

• Raspberry Pi breadboard experiments
• GPIO prototyping
• DIY electronics projects
• Robotics projects
• IoT projects
• Sensor interfacing
• I2C module testing
• SPI module testing
• LED and switch experiments
• Automation projects
• Educational electronics
• Circuit development
• Rapid prototyping

Package Includes

• 1 × Raspberry Pi B+ Cobbler Plus 40-Pin GPIO Expansion Board

Product Disclaimer

This product is a GPIO breakout/prototyping accessory and does not add extra GPIO functionality to the Raspberry Pi. It provides convenient access to the existing connections available on the 40-pin GPIO header.

Please verify that your Raspberry Pi board has a compatible 40-pin GPIO header before use. Raspberry Pi board, breadboard, jumper wires, and electronic components are not included unless specifically mentioned in the package contents.

Product images are for representation only. The actual product may vary slightly in colour, appearance, connector placement, or construction depending on the manufacturing batch.
