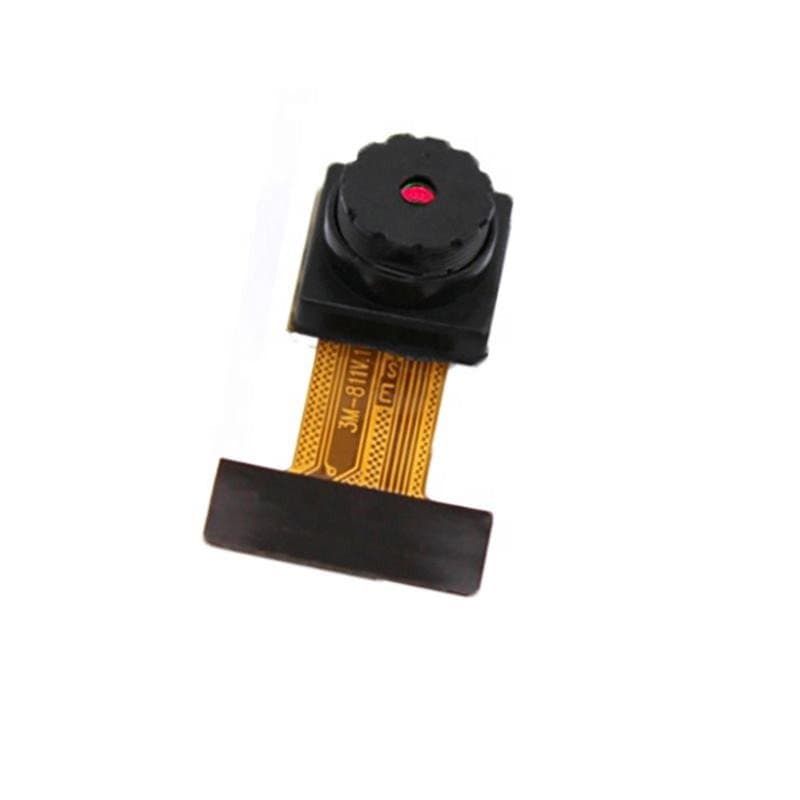

OV2640 Camera 2MP Module For ESP32 CAM Development Without Connector(Only Camera)

Overview: The OV2640 stands out as a 1/4-inch CMOS UXGA (1632*1232) image sensor, featuring a standard SCCB interface. Its compact size makes it ideal for various applications, offering both video and snapshot capabilities. Key Features: 1. High Sensitivity for Low-Light Operation: – Designed for superior performance in low-light conditions, ensuring optimal image quality. 2. Low Operating Voltage for Portable Apps: – Operates at a low voltage, making it suitable for embedded and portable applications. 3. Line Optical Black Level Output Capability: – Provides black level output capability for enhanced image quality. 4. Zooming, Panning, and Windowing Functions: – Supports dynamic control over image framing and composition. 5. Internal/External Frame Synchronization: – Offers flexibility with both internal and external frame synchronization options. 6. Variable Frame Rate Control: – Allows adjustment of the frame rate based on specific application requirements. 7. Supports LED and Flash Strobe Mode: – Versatile support for different lighting conditions. 8. Supports Scaling and Compression: – Features scaling and compression capabilities for diverse imaging needs. 9. Embedded Microcontroller: – Comes with an embedded microcontroller for efficient and integrated functionality. Specifications: – Output support for Raw RGB, RGB (RGB565/555), GRB422, YUV (422/420), and YCbCr (4:2:2) formats. – Supports various image sizes, including UXGA, SXGA, SVGA, and scalable sizes down to 40×30. – Image quality controls encompass color saturation, gamma, sharpness, lens correction, white pixel canceling, noise canceling, and 50/60 Hz luminance detection. – Automatic image control functions, including Automatic Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic Band Filter (ABF), and Automatic Black-Level Calibration (ABLC). – Weight: 3 g Application: – Cellular and Camera Phones – Toys – PC Multimedia – Digital Still Cameras

Please Note: Images are for representation only. The actual Product may differ slightly in appearance. The product doesnot come with SCCB Connector. Only Camera will be shipped
