Long U Aluminium Servo Bracket – Multi-Axis Servo Joint Mount

Product Description

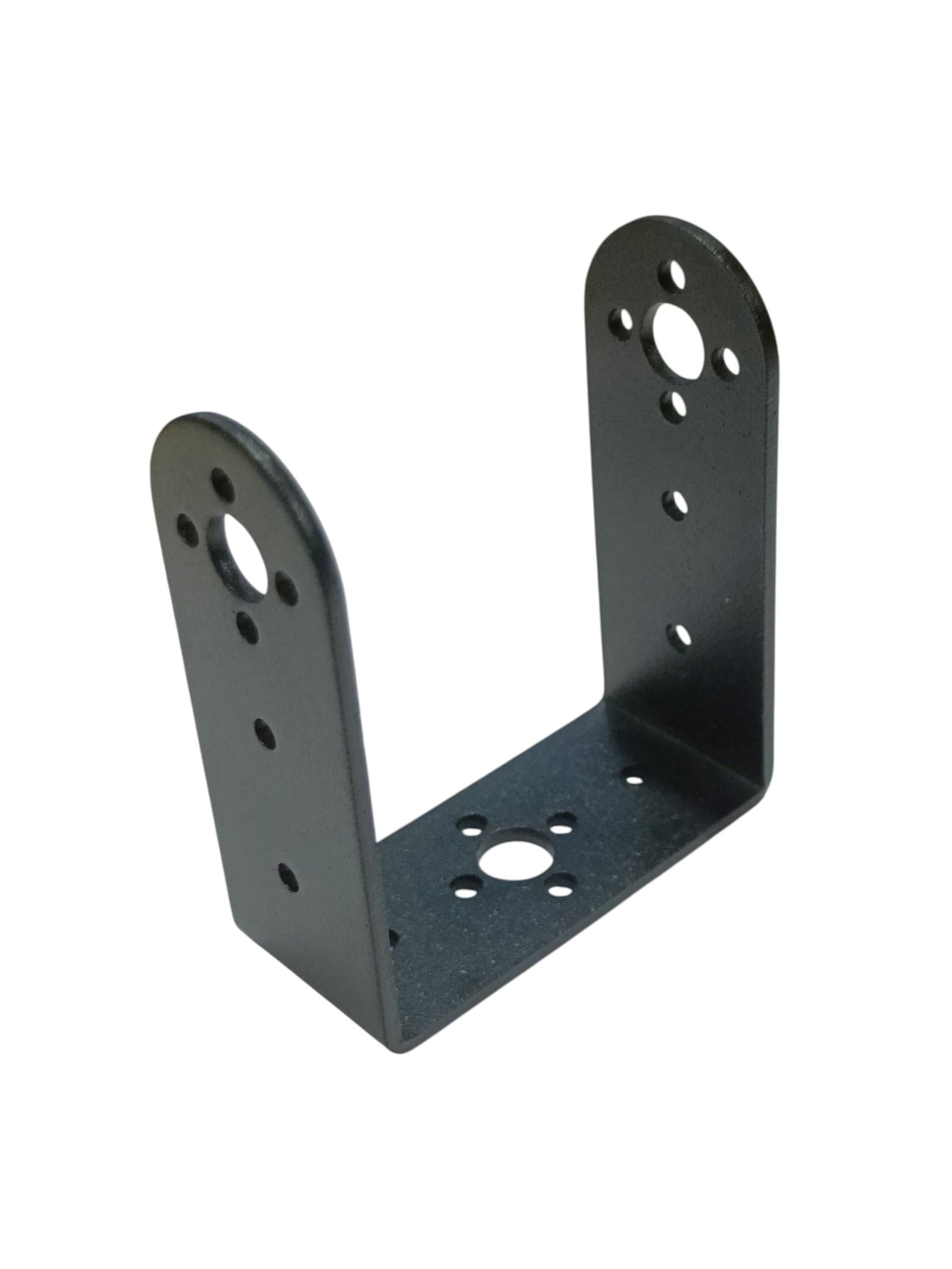

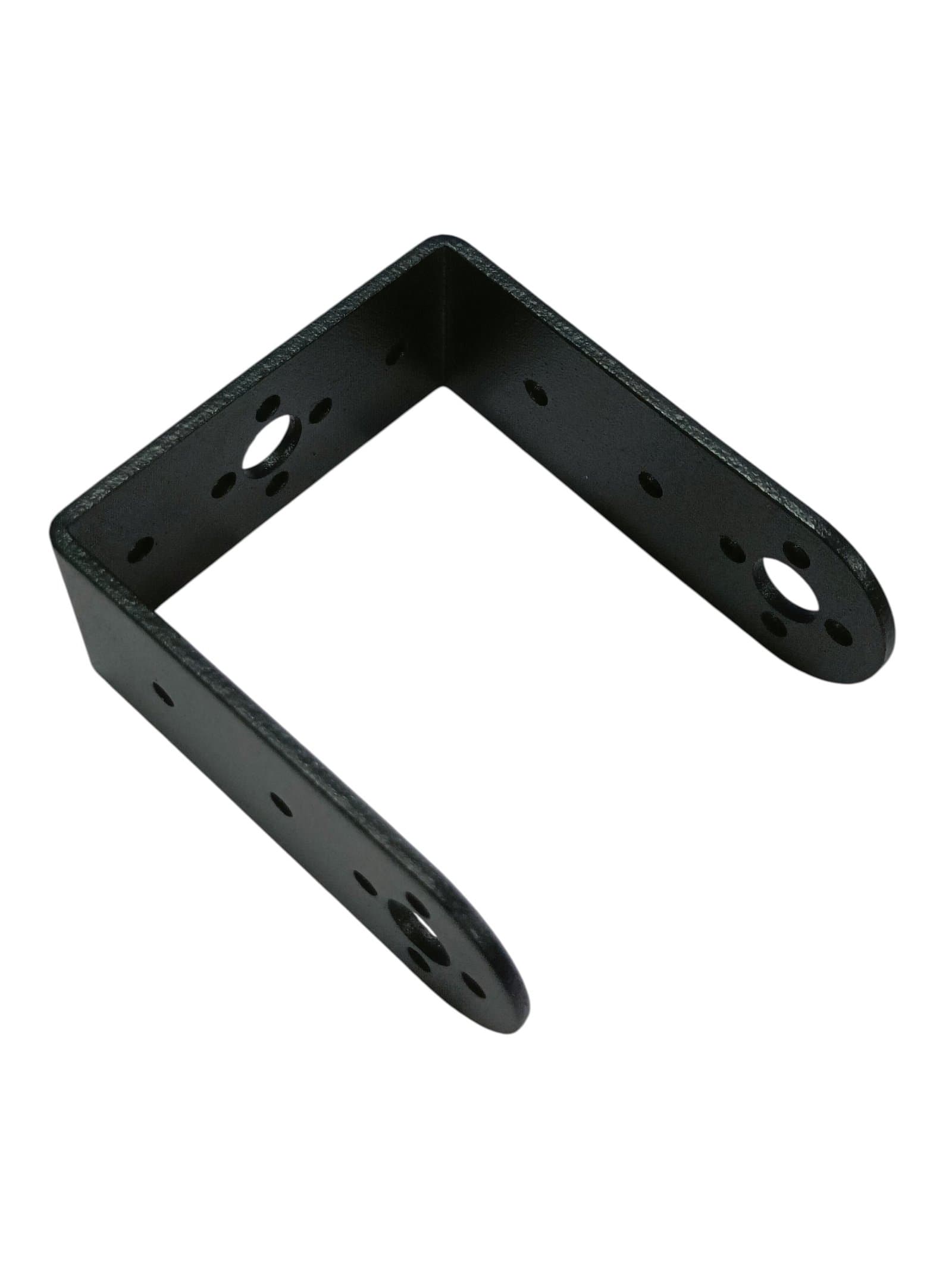

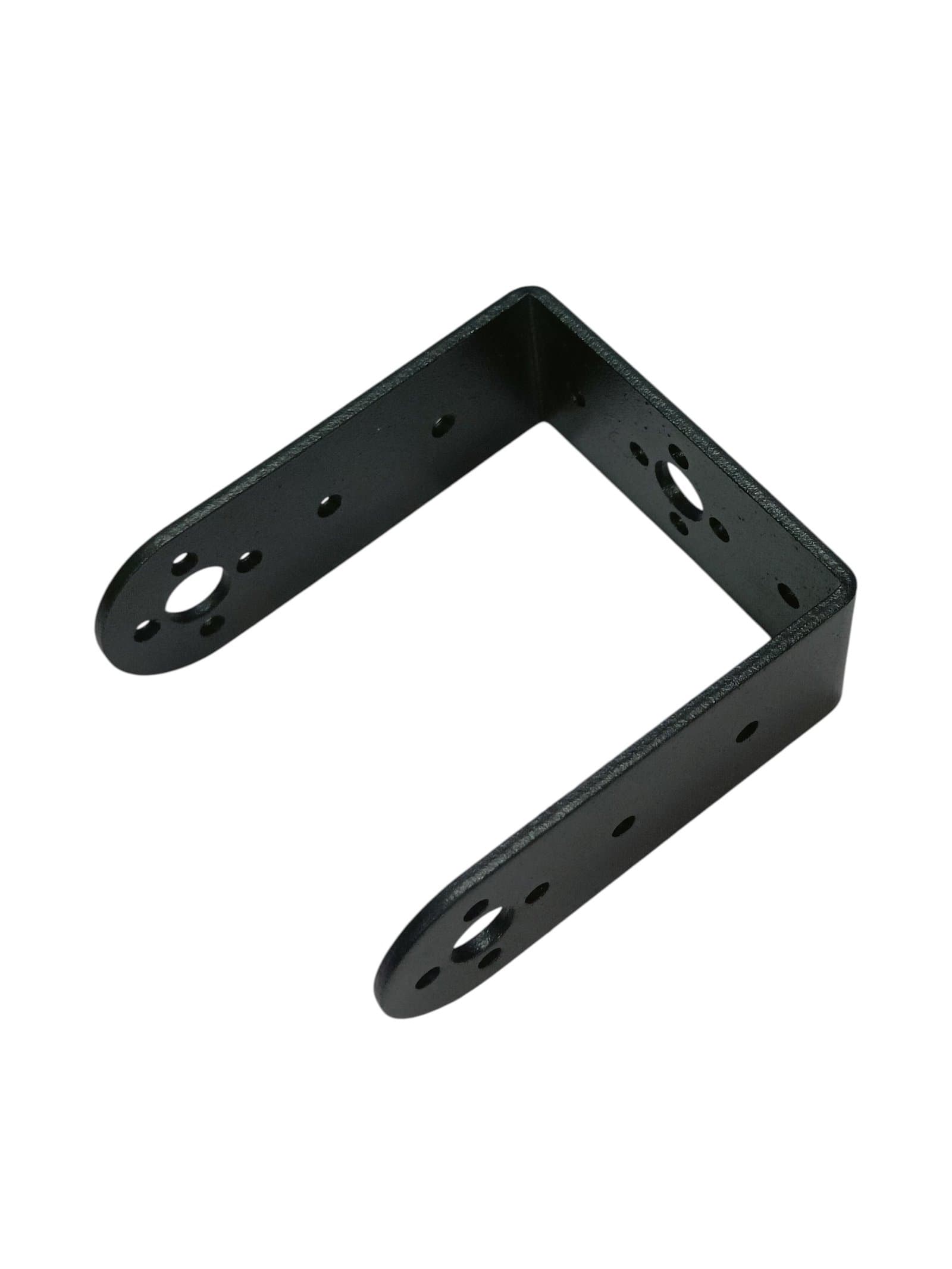

The Long U Aluminium Servo Bracket is a lightweight, strong, and versatile mounting bracket designed to fit most standard-sized servo motors. Its long U-shaped construction provides a rigid and reliable mechanical mounting solution for robotic arms, legs, joints, and custom servo-driven mechanisms.

Manufactured from 2mm hard aluminium, the bracket offers a good balance of strength, durability, and low weight. The long U-shaped design makes it particularly useful for creating multi-axis joints and articulated mechanisms where additional structural support and connection between components are required.

Various mounting holes are provided on the bracket to accommodate compatible servo horns, screws, linkages, and other mechanical components. The numerous mounting positions allow users to easily create custom mechanisms using standard servo motors.

The bracket is especially suitable for building multi-axis joints for robot arms and legs. It can be combined with other aluminium servo brackets to create articulated robotic structures with multiple degrees of movement.

The black sandblasting oxidation surface finish provides a clean appearance and a durable surface suitable for regular mechanical applications.

Features

• Long U-shaped aluminium servo bracket
• Designed for most standard-sized servo motors
• Made from 2mm hard aluminium
• Lightweight yet strong construction
• Long U-shaped structural design
• Multiple mounting holes
• Suitable for compatible servo horns
• Ideal for multi-axis robotic joints
• Suitable for robot arms and legs
• Useful for articulated robotic mechanisms
• Enables custom servo mechanism construction
• Suitable for DIY robotics projects
• Ideal for Arduino and microcontroller-based robots
• Black sandblasting oxidation finish
• Suitable for automation and prototype development
• Can be combined with other servo brackets

Specifications

Parameter	Specification
Product Type	Long U Aluminium Servo Bracket
Design	Long U-Shaped
Material	2mm Hard Aluminium
Surface Finish	Sandblasting Oxidation
Colour	Black
Weight	Approximately 20 g
Servo Compatibility	Most Standard-Sized Servos
Mounting Type	Mechanical Screw Mounting
Mounting Features	Multiple Holes
Application	Multi-Axis Joints, Robot Arms and Legs

Design and Construction

The Long U Aluminium Servo Bracket is manufactured from 2mm hard aluminium to provide a strong and rigid mechanical connection while keeping the overall weight low.

Its elongated U-shaped design provides additional structural support and makes the bracket suitable for applications where components need to be positioned or connected over a longer mounting section.

Multiple mounting holes provide flexible installation options for servo motors, servo horns, linkages, and other mechanical components. The different mounting positions make it easier to align components and create custom robotic mechanisms.

With a weight of approximately 20 g, the bracket provides a lightweight solution for servo-driven structures while maintaining the rigidity required for articulated mechanisms.

The bracket features a black sandblasting oxidation surface finish for a clean and durable appearance.

Working Principle

The bracket functions as a mechanical mounting and interconnecting component for standard-sized servo motors and other robotic components.

A servo motor can be secured to the bracket using suitable mounting screws. A compatible servo horn, linkage, or another bracket can then be connected through the available mounting holes.

The long U-shaped structure allows the bracket to form part of an articulated joint. When the servo rotates, its movement is transferred through the servo horn or connected linkage, allowing the attached robotic component to move.

By combining multiple brackets and servo motors, users can create multi-axis joints for robotic arms, legs, walking robots, and other articulated mechanisms.

The bracket is a passive mechanical component and does not require electrical power.

Applications

• Multi-axis robotic joints
• Robotic arms
• Robotic legs
• Walking robots
• Humanoid robots
• Biped robots
• DIY robotics projects
• Arduino robot projects
• Servo-controlled mechanisms
• Articulated robot joints
• Robot arm joints
• Robot leg joints
• Custom servo mechanisms
• Multi-axis mechanisms
• Servo motor mounting
• Mechanical linkages
• RC robotics projects
• Automation projects
• Educational robotics
• Mechanical prototype development
• Custom robot structures
• Embedded robotics systems

Package Includes

• 1 × Long U Aluminium Servo Bracket

Product Disclaimer

Product images are shown for illustrative and representational purposes only. The actual product may vary slightly in colour, dimensions, surface finish, hole positioning, slot dimensions, or appearance depending on the manufacturing batch.

Servo motor, servo horn, screws, linkages, additional brackets, robot parts, and other components shown in product images are not included unless specifically mentioned in the package contents.

Compatibility with a particular servo depends on the servo’s physical dimensions and mounting-hole arrangement. Please verify the dimensions and mounting pattern before installation.
