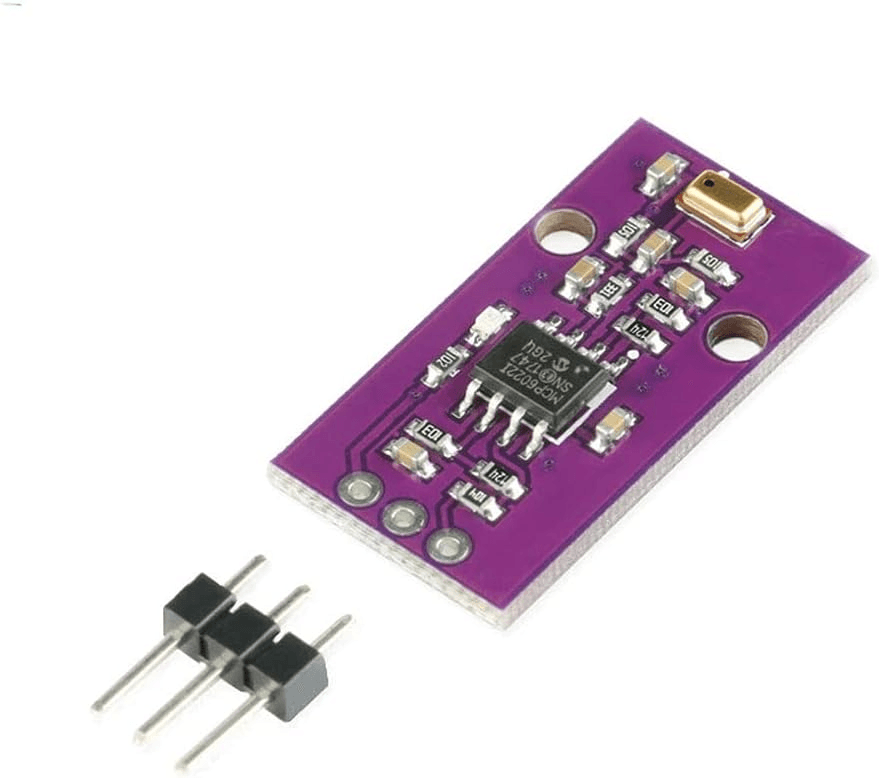

MCP6022 Sound Sensor MIC Silicon Microphone Rail-to-Rail Operational Amplifier Simulated Output

The MCP6021, MCP6021R, MCP6022, MCP6023 and MCP6024 from Microchip Technology Inc. are rail-torail input and output operational amplifiers with high performance. Key specifications include: wide bandwidth (10 MHz), low noise (8.7 nV/Hz), low input offset voltage and low distortion (0.00053% THD+N). The MCP6023 also offers a Chip Select pin (CS) that gives power savings when the part is not in use. The single MCP6021 and MCP6021R are available in SOT-23-5 packages. The single MCP6021, single MCP6023 and dual MCP6022 are available in 8-lead PDIP, SOIC and TSSOP packages. The Extended Temperature single MCP6021 is available in 8-lead MSOP. The quad MCP6024 is offered in 14-lead PDIP, SOIC and TSSOP packages. The MCP6021/1R/2/3/4 family is available in Industrial and Extended temperature ranges. It has a power supply range of 2.5V to 5.5V. Application:
Automotive Multi-Pole Active Filters Audio Processing DAC Buffer Test Equipment Medical Instrumentation Features: .Rail-to-Rail Input/Output • Wide Bandwidth: 10 MHz (typical) • Low Noise: 8.7 nV/Hz at 10 kHz (typical) • Low Offset Voltage: – Industrial Temperature: ±500 μV (max.) – Extended Temperature: ±250 μV (max.) • Mid-Supply VREF: MCP6021 and MCP6023 • Low Supply Current: 1 mA (typical) • Total Harmonic Distortion: – 0.00053% (typical, G = 1 V/V) • Unity Gain Stable • Power Supply Range: 2.5V to 5.5V • Temperature Range: – Industrial: -40°C to +85°C – Extended: -40°C to +125°C
