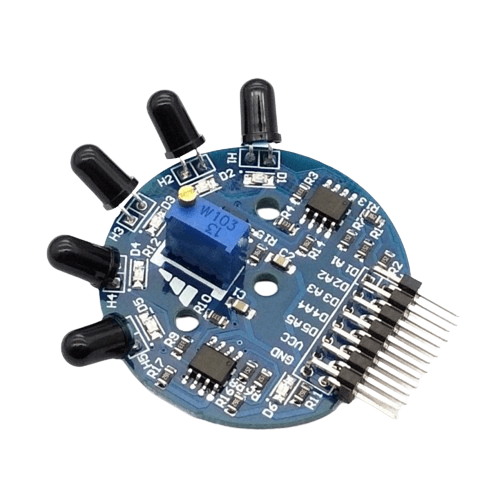

5 Channel Flame Sensor module for multi direction flame/Fire sensing

The Five-Channel Flame Sensor Module serves as a highly effective 5-channel flame detection system designed for identifying flames within larger areas with temperatures exceeding 120 degrees. Ideal for robotics applications requiring fire detection, this module employs five flame sensors arranged across a 30-degree span.Generating both analog and digital signals, the module offers enhanced precision and user flexibility. The digital output sensitivity can be easily adjusted using the onboard potentiometer. For debugging purposes, five LED indicators are incorporated, providing valuable visual feedback during operation.This sensor module exhibits heightened sensitivity to flames and radiation, making it adept at detecting fire occurrences. Additionally, it can identify normal light sources within a wavelength range of 760nm to 1100nm. The module excels in flame detection, with a lighter flame test distance of up to 80cm, extending further as the flame intensity increases.Key Features:1. Analog and digital signal outputs for versatile applications. ** The images shows are for representation only and actual product may slight differ in color and appearance.2. On-board potentiometer and LED indicators aid in customization and debugging.3. Utilizes 1% resistors, ensuring reliability and precision surpassing other flame sensors.4. Analog signal output allows for precise measurements in high-precision applications.5. Adjustable detection range for digital output and customizable analog output sensitivity, providing design flexibility.
