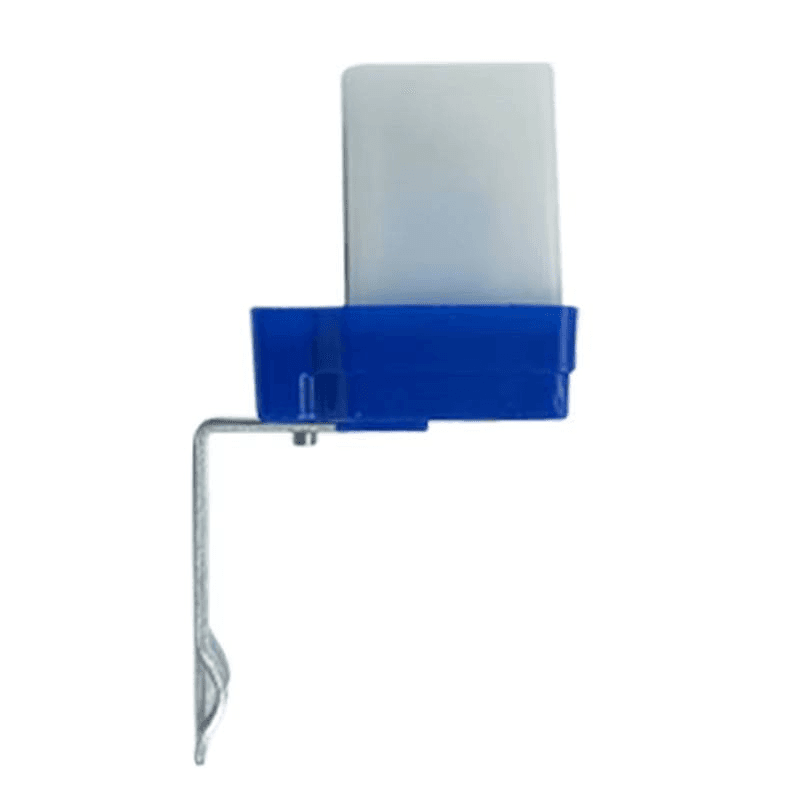

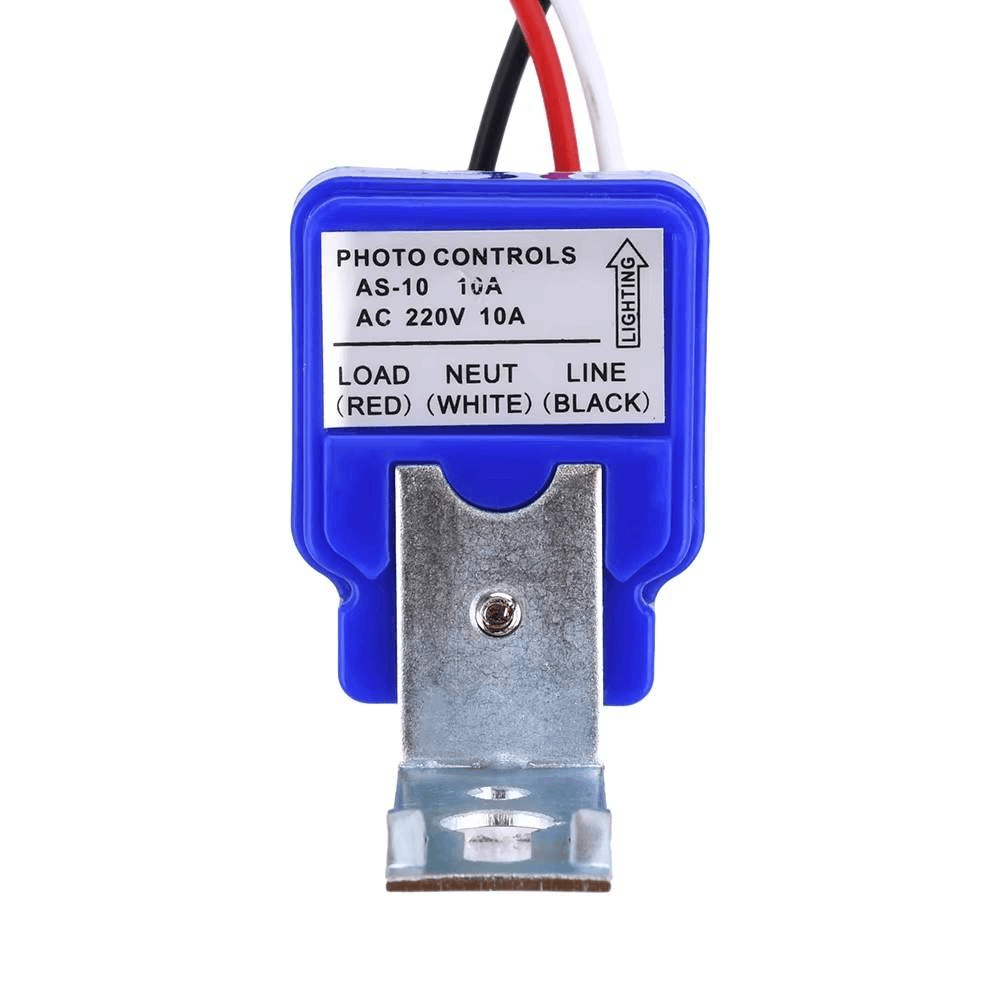

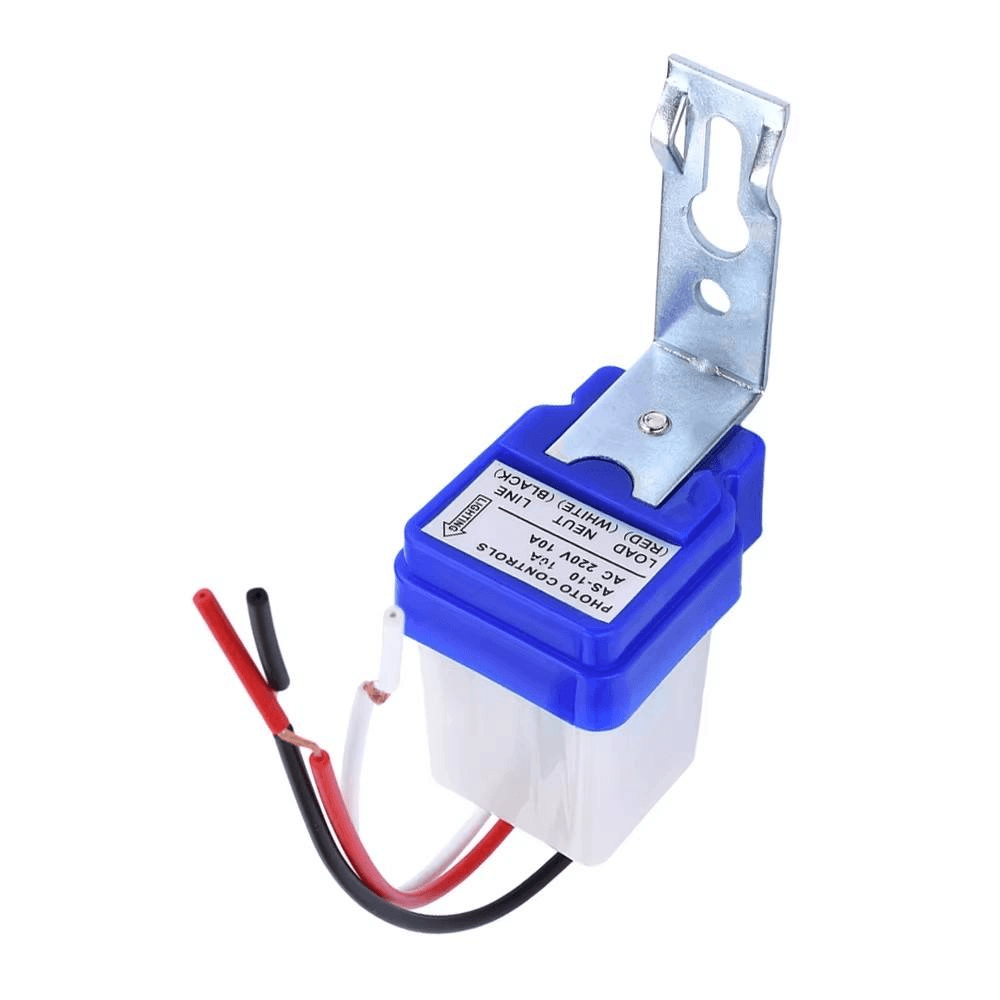

Automatic On/Off Photocell Street Lamp Light Switch Controller AC 220V 50-60Hz 10A

Product Description

The Automatic On/Off Photocell Street Lamp Light Switch Controller is a compact and reliable light-sensitive switch designed to automate outdoor lighting based on ambient light conditions. It automatically switches connected lights ON when it becomes dark and OFF when daylight returns, providing convenient dusk-to-dawn lighting control without the need for manual operation.

Designed for AC 220V, 50–60Hz electrical systems, this photocell controller supports a maximum load current of 10A and a maximum load power of up to 2200W. It is suitable for controlling street lamps, garden lights, security lights, pathway lighting, parking-area lights, and other compatible outdoor lighting equipment.

The controller uses a photocell-based light detection system to sense changes in surrounding illumination. Its automatic operation makes it useful for residential, commercial, industrial, agricultural, and outdoor lighting applications where lights need to operate according to day and night conditions.

The compact construction allows the controller to be easily integrated into suitable lighting installations. Its simple operating principle also makes it a practical component for DIY electronics, lighting automation, and electrical control projects.

Features

• Automatic ON/OFF control based on ambient light
• Turns connected lights ON automatically at dusk
• Turns connected lights OFF automatically at dawn
• Supports AC 220V operating voltage
• Compatible with 50–60Hz electrical systems
• Maximum load current of 10A
• Supports loads up to 2200W
• Photocell-based automatic light detection
• Compact and practical design
• Suitable for outdoor lighting automation
• Reduces the need for manual switching
• Useful for residential and commercial lighting systems
• Suitable for street lamps, garden lights, security lights, and pathways
• Easy to integrate into compatible lighting installations

Specifications

Parameter	Specification
Product Type	Automatic Photocell Light Switch
Item Type	Sensor
Model Type	Photo Switch Sensor
Operating Voltage	AC 220V
Frequency	50–60Hz
Maximum Load Current	10A
Maximum Load Power	2200W
Dimensions	45 × 35 × 50 mm
Weight	Approximately 61 g
Operating Mode	Automatic Day/Night Switching
Detection Method	Ambient Light Detection

Design and Construction

The Automatic Photocell Street Lamp Controller features a compact and practical housing designed for use in automatic lighting applications. Its light-sensitive photocell detects changes in the surrounding illumination and controls the connected electrical load accordingly.

The compact 45 × 35 × 50 mm size makes it suitable for installations where space is limited. The lightweight construction, approximately 61 g, allows it to be incorporated into various lighting systems without adding significant weight.

The controller is designed for simple integration into compatible AC lighting circuits. Its construction makes it suitable for applications requiring automatic switching based on natural daylight conditions.

Working Principle

The photocell controller continuously senses the level of ambient light around the sensor.

During the daytime, sufficient natural light is detected, so the controller keeps the connected lamp OFF.

As the surrounding light level decreases toward dusk, the photocell detects the reduced illumination and automatically switches the connected lamp ON.

When daylight returns, the increased ambient light is detected by the photocell, causing the controller to switch the lamp OFF again.

This automatic day/night switching cycle allows outdoor lights to operate without requiring a user to manually turn them on or off.

Applications

• Street Lighting: Automatic control of street lamps from dusk to dawn.
• Garden Lighting: Controls garden and landscape lights according to daylight conditions.
• Security Lighting: Automatically provides illumination during nighttime.
• Driveway Lighting: Automates entrance and driveway lights.
• Pathway Lighting: Controls outdoor pathway and walkway lighting.
• Parking Area Lighting: Useful for automatic parking and entrance lighting.
• Solar Lighting Systems: Suitable for compatible solar-powered lighting installations.
• Billboard Lighting: Automatically controls outdoor advertising illumination.
• Park Lighting: Provides automatic night-time lighting for outdoor areas.
• Farm and Rural Lighting: Useful for automatic lighting in outdoor agricultural areas.
• Commercial Lighting: Suitable for compatible shops, buildings, warehouses, and parking facilities.
• Industrial Lighting: Can be used in suitable outdoor industrial lighting systems.
• DIY Automation Projects: Useful for electronics and automatic lighting control projects.
• Smart Lighting Projects: Can be incorporated into basic automatic day/night lighting systems.

Physical Attributes

• Dimensions: 45 × 35 × 50 mm
• Weight: Approximately 61 g
• Design: Compact photocell controller
• Installation: Suitable for compatible AC lighting circuits

Package Includes

• 1 × Automatic On/Off Photocell Street Lamp Light Switch Controller AC 220V 50–60Hz 10A Photo Control Photo Switch Sensor

Product Disclaimer

Product images are provided for reference and may vary slightly from the actual product in terms of colour, dimensions, housing design, markings, or appearance depending on the manufacturing batch.

The product is intended for use within its specified electrical ratings. The 10A maximum load rating and AC 220V operating voltage must not be exceeded.

This product operates with mains AC voltage. Electrical installation and wiring should be performed by a qualified person. Always disconnect the power supply before installation, wiring, inspection, or maintenance.
