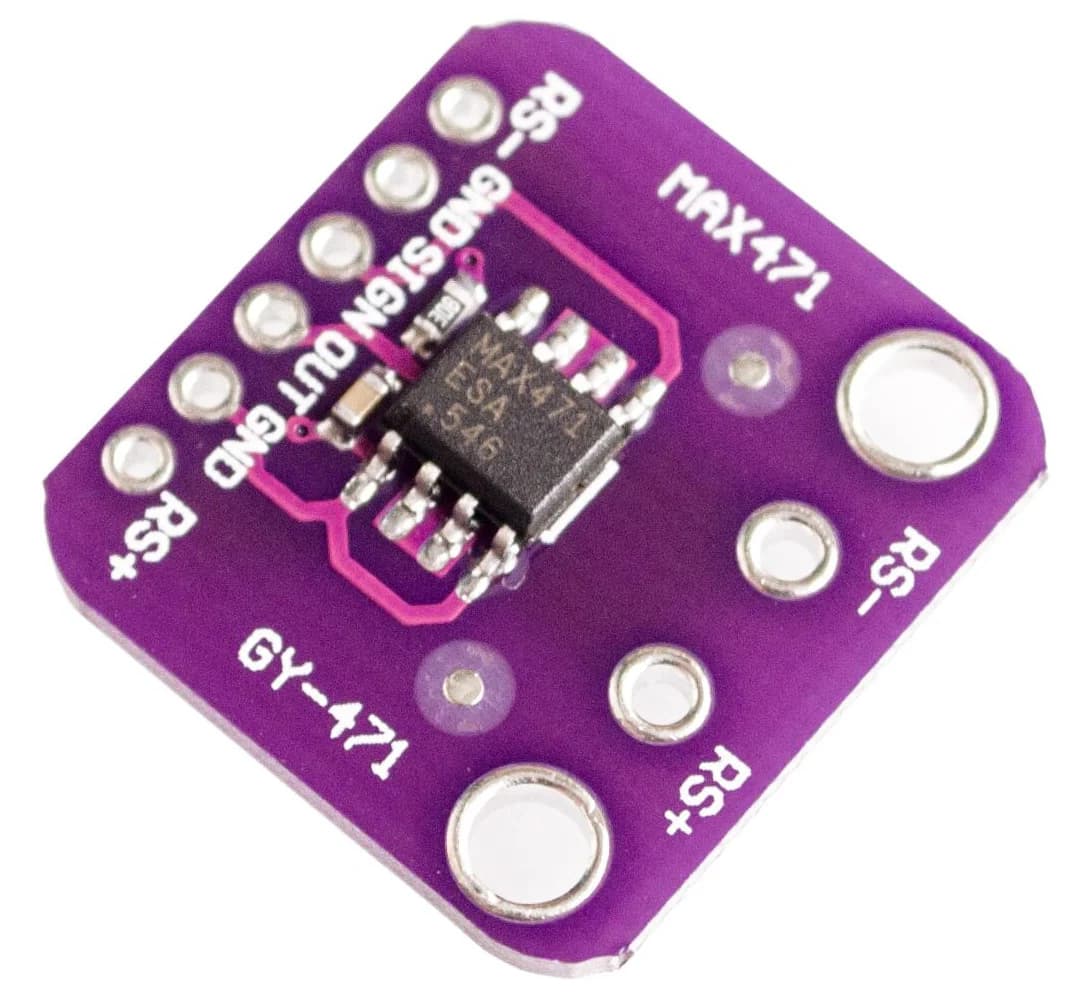

GY-471 3A Range MAX471 Current Sensor Module

GY-471 3A Range MAX471 Current Sensor Module

The GY-471 3A Range MAX471 Current Sensor Module is a compact and versatile high-side bidirectional current sensing module designed for monitoring current in DC-powered and battery-operated systems. Built around the MAX471 current-sense IC, the module provides a convenient way to measure current without interrupting the system’s ground path.

With an integrated 35mΩ precision sense resistor, the module can monitor current flowing in either direction, making it useful for applications such as battery charging and discharging, DC motor monitoring, power supply measurement, robotics, and embedded energy management.

The module provides an analog current-sense output along with a SIGN direction indicator, allowing a compatible microcontroller to determine both the approximate current level and the direction of current flow.

High-Side Current Sensing

The GY-471 uses a high-side current-sensing configuration, meaning the sensing element is placed in the positive supply path rather than the ground return path.

This approach has several advantages for embedded systems because the load ground can remain connected directly to the system ground. It is particularly useful in battery-powered applications where maintaining a common ground reference is important.

Bidirectional Current Measurement

The module can detect current flowing in both directions, making it suitable for systems where current may alternate between charging and discharging.

For example, in a battery-powered system, the module can be used to monitor:

• Charging current
• Discharging current
• Load current
• Power supply current
• Motor current

The SIGN output indicates the direction of current flow, while the analog output can be monitored by a microcontroller to determine the current level.

Integrated Precision Shunt Resistor

A 35mΩ precision sense resistor is integrated into the module. The resistor creates a small voltage difference proportional to the current flowing through it, which is then processed by the MAX471 IC.

Because the sensing resistor has a low resistance value, the voltage drop introduced into the power path is kept relatively small compared with higher-resistance sensing methods.

Up to ±3A Current Measurement

The GY-471 is designed for current monitoring applications up to approximately ±3A, depending on the module configuration and operating conditions.

The bidirectional capability makes it particularly useful for battery and power-management projects where the current direction changes during operation.

For accurate results, the current should remain within the module’s specified range and the board should be used with appropriately rated wiring and connections.

Wide Supply Voltage Range

The module supports a supply voltage range of approximately 3V to 36V, making it suitable for a wide variety of low- and medium-voltage DC systems.

It can be incorporated into battery-powered electronics, motor systems, embedded devices, and other DC power-monitoring applications.

Always ensure that the applied voltage and current remain within the specifications of the actual module supplied.

Low Power Consumption

The MAX471-based design is intended for low-power monitoring applications. The module has a typical operating consumption of approximately 100µA and supports a low-power shutdown mode with a maximum current of around 18µA.

This makes it useful for applications where the current-monitoring circuit itself should have minimal impact on overall system power consumption.

SIGN Output for Current Direction

The module provides an open-collector SIGN output that can be used to identify the direction of current flow.

This is particularly useful for battery-management projects because the controller can distinguish between:

• Current flowing into the battery
• Current flowing out of the battery

The SIGN signal can be connected to a suitable digital input on a microcontroller.

Analog Current Output

The MAX471 provides an output signal that can be monitored by a microcontroller’s analog input. The output can be used to determine the approximate current flowing through the sensing resistor.

This makes the module suitable for real-time current monitoring and data logging applications.

Users can process the analog signal using software to display current values, calculate power consumption, detect abnormal current conditions, or record energy usage.

Easy Microcontroller Integration

The GY-471 can be integrated into projects using popular development platforms such as:

• Arduino
• ESP32
• STM32
• Other compatible microcontrollers

A microcontroller can read the analog output and monitor the SIGN signal to determine current magnitude and direction.

When connecting the module to a 3.3V microcontroller, verify that the module’s output voltage levels are compatible with the controller’s analog and digital inputs.

Compact Design

The GY-471 uses a compact module format that can be easily incorporated into DIY electronics and embedded systems.

Its integrated current-sensing resistor and MAX471 IC reduce the number of external components required for basic current monitoring.

Key Features

• MAX471-based current sensing
• High-side current measurement
• Bidirectional current monitoring
• Measures approximately ±3A
• Integrated 35mΩ precision sense resistor
• Current-direction SIGN output
• Analog current-sense output
• Approximately 2% accuracy across the specified temperature range
• Wide 3V–36V supply range
• Low operating current
• Low-power shutdown mode
• Suitable for Arduino, ESP32, and other microcontrollers
• Compact and easy to integrate

Specifications

Specification	Details
Product Type	GY-471 MAX471 Current Sensor Module
Sensor IC	MAX471
Current Measurement	Up to ±3A
Sensing Type	High-Side, Bidirectional
Sense Resistor	35mΩ
Accuracy	Approx. 2%*
Supply Voltage	3V–36V
Typical Operating Current	Approx. 100µA
Shutdown Current	Up to approx. 18µA
Direction Output	SIGN, Open Collector
Current Output	Analog
Package Style	Compact 8-Pin DIP/SO Design
Controller Compatibility	Arduino, ESP32, Other MCUs

*Actual measurement accuracy can vary depending on temperature, current level, module design, wiring, calibration, and operating conditions.

Applications

The GY-471 MAX471 Current Sensor Module is suitable for:

• Battery monitoring
• Battery charging and discharging analysis
• Power supply monitoring
• DC motor current measurement
• Robotics
• Automation systems
• Portable electronics
• Smart battery systems
• IoT energy monitoring
• Embedded power management
• Electronic test equipment
• Current consumption monitoring
• DIY electronics projects

Battery Monitoring

The bidirectional sensing capability makes the GY-471 particularly useful for battery monitoring applications.

A microcontroller can monitor the current direction and magnitude to determine whether the battery is charging or supplying power to a load.

This information can be combined with voltage measurements to estimate instantaneous power and track system energy usage.

DC Motor Monitoring

The module can also be used to monitor current drawn by DC motors in robotics and automation projects.

Monitoring motor current can provide useful information about:

• Motor load
• Stall conditions
• Changes in mechanical resistance
• Battery consumption
• System performance

For motor applications, appropriate filtering and software processing may be required because motor switching can introduce electrical noise.

Arduino and ESP32 Integration

The analog output can be connected to an appropriate analog input on an Arduino, ESP32, or other microcontroller, while the SIGN output can be connected to a digital input.

The controller can then process the measurements to display or record current information.

When using the module with an ESP32 or other 3.3V controller, carefully verify the module’s output levels and ensure they do not exceed the controller’s input limits.

Installation Tips

For reliable measurements:

• Connect the module in the correct high-side configuration.
• Ensure the current flows through the integrated sensing resistor.
• Use appropriately rated wires and connectors.
• Keep high-current connections short and secure.
• Check current polarity and SIGN output behavior during testing.
• Avoid exceeding the recommended current range.
• Use suitable filtering when measuring noisy motor loads.
• Verify voltage compatibility with the connected microcontroller.

Package Includes

• 1 × Unsoldered GY-471 3A Range MAX471 Current Sensor Module

Important Notes

• This product is supplied as an unsoldered module and may require connection or header installation depending on your application.
• The module is designed for current measurement within its specified range; exceeding the recommended current can damage the sensing resistor or module.
• Actual accuracy depends on temperature, current level, wiring, PCB characteristics, and system calibration.
• The stated ±3A range should be treated according to the specifications of the exact module version supplied.
• The module’s analog output must be compatible with the ADC input of the selected microcontroller.
• When used with ESP32, Raspberry Pi, or other 3.3V systems, verify signal-level compatibility before connection.
• Use suitable protection and current-limiting measures in high-energy battery or power systems.
• Product appearance, PCB layout, component placement, and connector configuration may vary slightly between production batches.

Why Choose the GY-471 MAX471 Module?

The GY-471 3A Range MAX471 Current Sensor Module provides a simple and effective way to add bidirectional high-side current monitoring to DC and battery-powered projects. With its integrated 35mΩ precision resistor, analog current output, SIGN direction output, wide 3V–36V supply range, and low-power operation, it is well suited for battery management, robotics, motor monitoring, IoT systems, and embedded power-monitoring applications.
