A733P PNP Bipolar Junction Transistor – Pack of 5

A733P PNP Bipolar Junction Transistor – Pack of 5

SKU: TT-590F3DBBDF79

₹0.00

GST classification pending administrator review

A733P PNP Bipolar Junction Transistor (2SA733P) – Pack of 5 The A733P (2SA733P) is a PNP silicon bipolar junction transistor intended for general-purpose switching and…

Delivery options

Courier from ₹79.00 per order · Free above ₹999.00

View shipping details

Product description

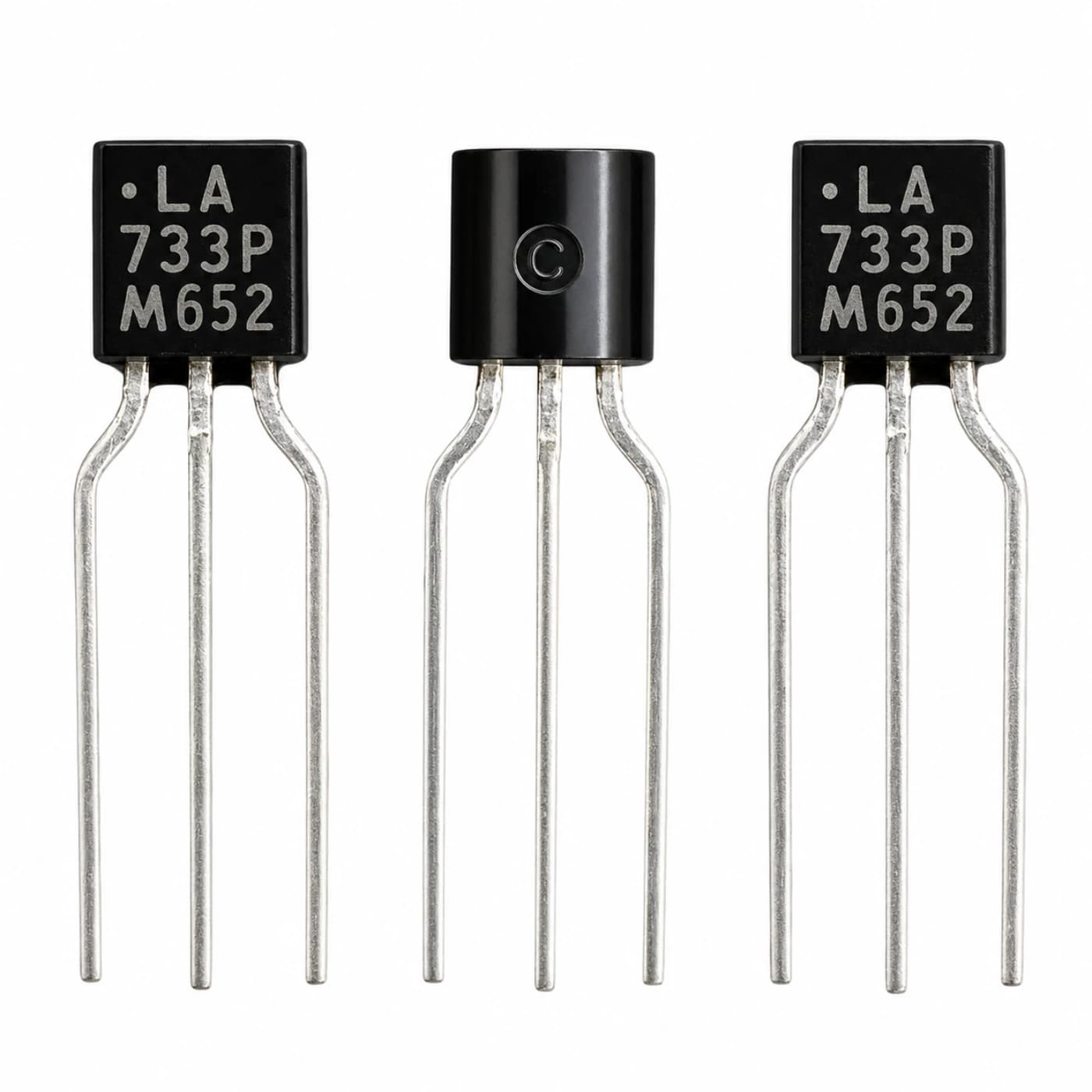

A733P PNP Bipolar Junction Transistor (2SA733P) – Pack of 5

The A733P (2SA733P) is a PNP silicon bipolar junction transistor intended for general-purpose switching and audio-frequency (AF) amplifier applications. It is supplied in a 3-pin TO-92 through-hole package suitable for PCB assembly and breadboard prototyping.

Specifications

SpecificationValue
Transistor TypePNP Silicon BJT
Part Number2SA733P / A733P
Collector-Base Voltage (VCBO)60 V
Collector-Emitter Voltage (VCEO)50 V
Emitter-Base Voltage (VEBO)5 V
Collector Current (IC)150 mA
DC Current Gain (hFE)200–400 (P Rank)
Power Dissipation250 mW at 25°C
Collector-Emitter Saturation Voltage0.3 V max.
Gain Bandwidth Product (fT)100 MHz min., 190 MHz typ.
PackageTO-92, 3-Pin
QuantityPack of 5

Features

  • PNP silicon transistor for general-purpose applications
  • Suitable for AF signal amplification
  • Can be used for low-power switching
  • High DC current gain (P rank, hFE 200–400)
  • Compact TO-92 through-hole package
  • Suitable for breadboard and PCB prototyping

Applications

  • AF amplifiers
  • Signal amplification
  • Switching circuits
  • Educational and electronics projects

Package Contents

  • 5 x A733P PNP Bipolar Junction Transistors
