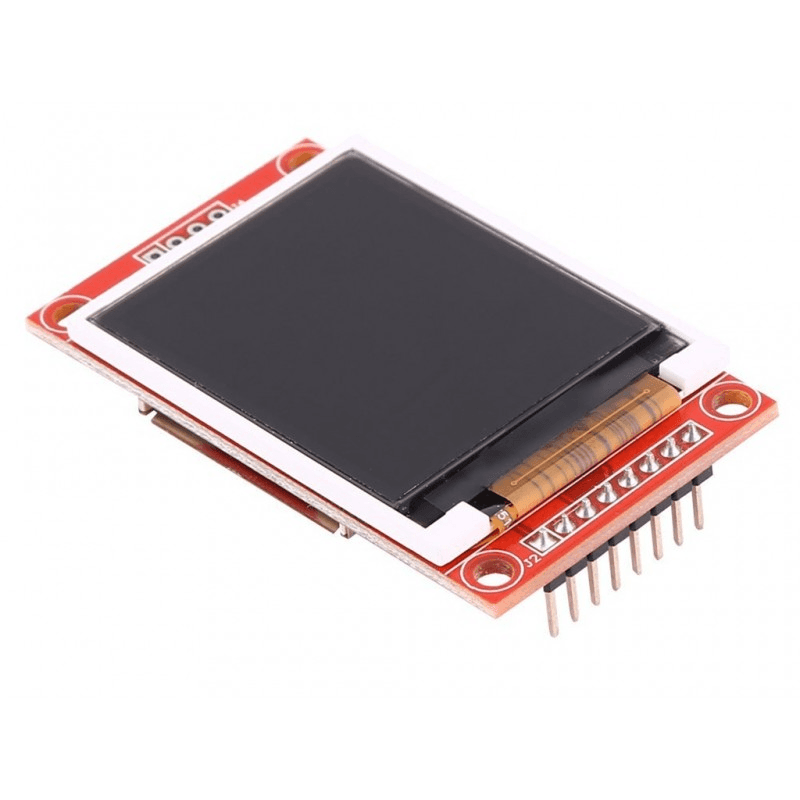

1.8 Inch TFT SPI LCD Display Module

Introducing the 1.8-inch TFT LCD Module – a versatile display solution that communicates seamlessly via a 4-wire SPI interface, equipped with its own pixel-addressable frame buffer. This LCD module is designed to be compatible with a wide range of microcontrollers, making it suitable even for small devices with limited memory and few available pins.

Featuring a vibrant 1.8-inch TFT LCD display with 128×160 color pixels, this module stands out as a genuine TFT display, unlike the low-cost alternatives such as the “Nokia 6110” and similar LCDs that utilize CSTN technology, resulting in poor color reproduction and slow refresh rates. The ST7735R TFT driver employed in this module boasts the capability to render full 18-bit color, offering an impressive spectrum of 262,144 shades.

Ensuring code compatibility across different instances, the LCD module consistently incorporates the same driver chip. The display is seamlessly integrated into the breakout, utilizing a delicate flex-circuit connector. Additionally, it features an ultra-low-dropout 3.3V regulator and a 3/5V level shifter, providing the flexibility to power and interface with the module using either 3.3V or 5V logic. Elevate your projects with this high-quality and versatile TFT LCD display module.

** The images shows are for representation only and actual product may slight differ in color and appearance.
