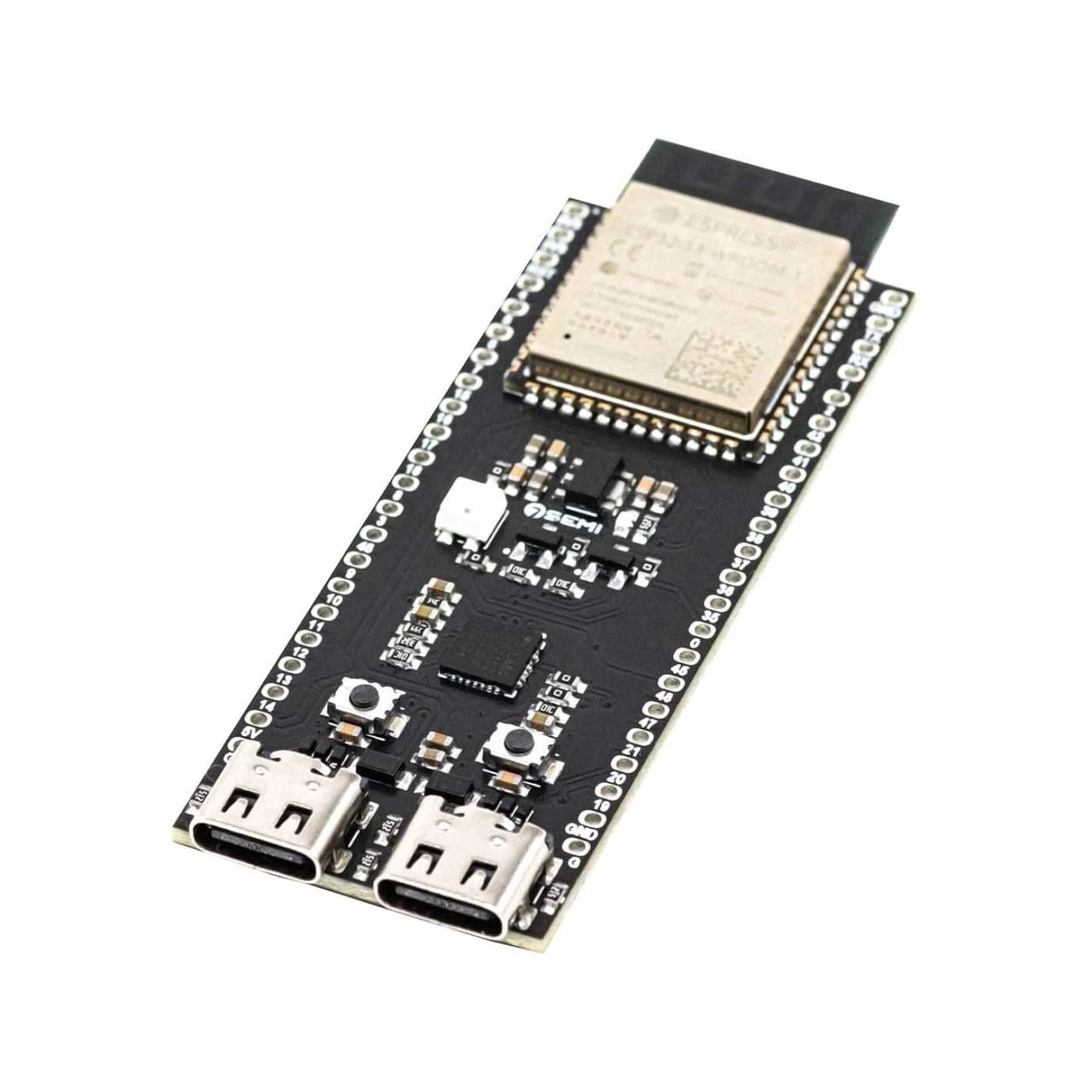

7Semi ESP32-S3-Dev-BoardC-1-N8R8 WiFi, Bluetooth, Dual USB-C, RGB LED

Name: 7Semi ESP32-S3-Dev-BoardC-1-N8R8 WiFi, Bluetooth, Dual USB-C, RGB LED
SKU: TT-6A9841B5ADEC
Availability: InStock

SKU: TT-6A9841B5ADEC

₹0.00

GST classification pending administrator review

7Semi ESP32-S3-Dev-BoardC-1-N8R8 The 7Semi ESP32-S3-Dev-BoardC-1-N8R8 is a development board built around the ESP32-S3-WROOM-1 module, combining Wi-Fi and Bluetooth…

Delivery options

Courier from ₹79.00 per order · Free above ₹999.00

View shipping details

Product description

7Semi ESP32-S3-Dev-BoardC-1-N8R8

The 7Semi ESP32-S3-Dev-BoardC-1-N8R8 is a development board built around the ESP32-S3-WROOM-1 module, combining Wi-Fi and Bluetooth connectivity with dual USB-C ports and an onboard RGB LED for IoT and embedded development.

Features

Xtensa dual-core 32-bit LX7 processor
2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5.0
8 MB Flash and 2 MB PSRAM (Quad SPI)
Dual USB-C ports: USB-to-UART for programming and USB OTG for JTAG/debugging
Onboard 5V to 3.3V LDO regulator
GPIO headers broken out (all available pins except flash SPI bus)
RGB LED and 3.3V power-on LED indicators
USB-to-UART bridge up to 3 Mbps; USB OTG (JTAG)
Compact PCB antenna

Specifications

Parameter	Specification
Product Name	ESP32-S3-Dev-BoardC-1-N8R8
Primary Module	ESP32-S3-WROOM-1
Processor	Xtensa dual-core 32-bit LX7
Wireless Connectivity	Wi-Fi 2.4 GHz (802.11 b/g/n), Bluetooth 5.0
Flash Memory	8 MB
PSRAM	2 MB (Quad SPI)
USB Interfaces	Dual USB-C (USB-to-UART & USB OTG)
Power Regulation	Onboard 5V to 3.3V LDO
GPIO Breakout	All available pins (except flash SPI bus)
Indicators	RGB LED, 3.3V Power-On LED
Programming/Debug	USB-to-UART Bridge up to 3 Mbps, USB OTG (JTAG)
Antenna	Compact PCB Antenna
