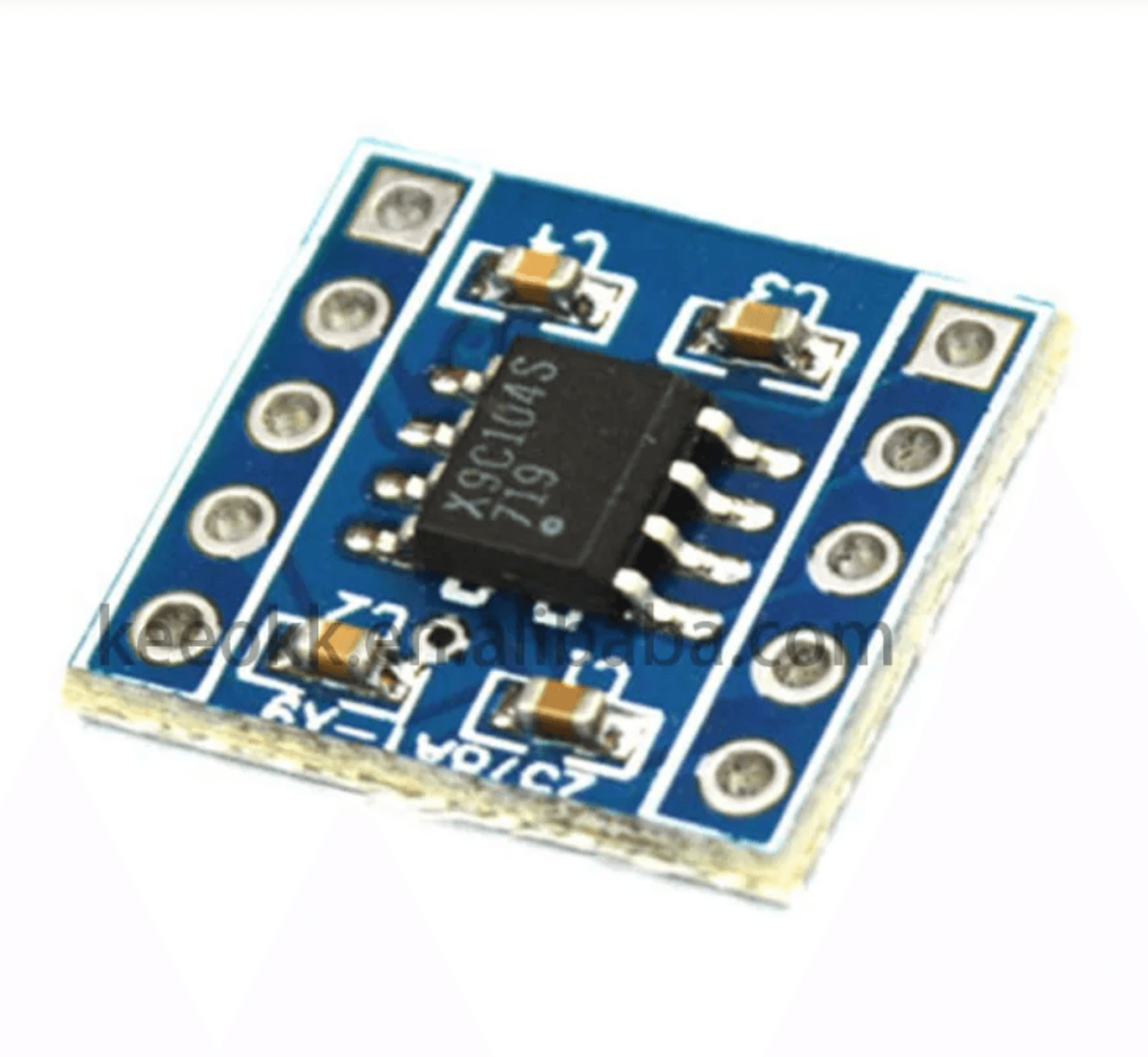

X9C104 Digital Potentiometer Module For Arduino

The X9C104 100K Digital Potentiometer Module is a compact and versatile electronic module that provides digitally controlled variable resistance without the need for a traditional mechanical potentiometer. Based on the X9C104 integrated circuit, it uses internal resistor elements and an electronically controlled wiper to provide 100 selectable resistance positions across a total resistance of 100kΩ.

The module can be controlled directly by a microcontroller through the CS, U/D, and INC digital control pins. By applying the appropriate control signals, the wiper position can be moved upward or downward through the available resistance steps, allowing the resistance to be adjusted electronically and repeatedly through software.

With approximately 99 series-connected resistor elements and 100 selectable tap positions, the module provides a linear resistance adjustment with approximately 1kΩ per step. This makes it useful for applications where a variable resistance or programmable voltage divider is required without physically turning a knob.

The X9C104 operates from a typical 5V supply and has a low typical operating current of approximately 3mA. It can be used in electronic experiments, sensor calibration, analog signal adjustment, programmable voltage control, and other microcontroller-based applications.

The module is designed to operate with signals within the applied supply-voltage range. Negative voltages should not be applied to any of the device pins, making proper voltage and signal-level selection important during circuit design.

Features

• Digital potentiometer module based on X9C104
• Total resistance of 100kΩ
• Provides 100 selectable resistance positions
• Approximately 99 internal series-connected resistor elements
• Approximately 1kΩ resistance per step
• Linear resistance adjustment
• Electronic wiper control without mechanical adjustment
• Controlled through CS, U/D, and INC digital inputs
• Typical operating voltage of 5V
• Typical operating current of approximately 3mA
• Suitable for microcontroller-controlled resistance adjustment
• Useful for programmable voltage dividers
• Suitable for analog signal adjustment
• Useful for sensor calibration and tuning
• Suitable for digital volume-control experiments
• Useful for variable-gain circuits
• Compact module design
• Suitable for educational and experimental electronics projects
• Supports resistance adjustment through software control
• No mechanical knob required

Specifications

Parameter	Specification
Product Type	Digital Potentiometer Module
IC	X9C104
Total Resistance	100kΩ
Number of Taps	100
Resistance Per Step	Approximately 1kΩ
Adjustment Mode	Linear
Operating Voltage	5V Typical
Typical Operating Current	3mA
Control Interface	CS, U/D, INC
Operating Temperature	-40°C to +85°C
Module Pin Count	10 Pin Including Breakout Headers
Module Dimensions	Approximately 14mm × 15mm × 3mm
Application	Variable Resistance, Voltage Control & Calibration

Design and Construction

The X9C104 module is built around the X9C104 digital potentiometer IC and provides convenient breakout connections for power, control, and resistor-network terminals.

Internally, the device contains a series of resistor elements connected between the Vh (high) and Vl (low) terminals. The electronically controlled Vw (wiper) terminal can be positioned at different points along this resistor network.

The module provides dedicated control pins for changing the wiper position. CS is used to select or enable the device, U/D determines the direction of resistance adjustment, and INC is used to step the wiper position.

The compact PCB design makes the module suitable for breadboard experiments, embedded prototypes, microcontroller projects, and circuits where a digitally adjustable resistance is required.

Working Principle

The X9C104 operates using an internal resistor network containing approximately 99 series-connected resistance elements. These elements create 100 selectable wiper positions across the total resistance range.

The microcontroller controls the module through the CS, U/D, and INC pins. The U/D input determines whether the wiper moves toward the high or low end of the resistor network, while the INC input advances the wiper by one step when the appropriate control sequence is applied.

By changing the wiper position, the resistance between Vh and Vw or between Vw and Vl can be varied electronically. This allows the module to function similarly to a traditional potentiometer while providing software-controlled adjustment.

For a 100kΩ version, the total resistance is approximately 100kΩ, with the 100 available positions providing approximately 1kΩ change per step.

The module can therefore be connected as a variable resistor or as a programmable voltage divider, depending on the circuit configuration.

The X9C104 operates within the applied supply-voltage range, typically from 0V to Vcc. Negative voltages should not be applied to the device pins.

Pin Interface

Pin	Name	Function
1	CS	Chip Select – Enables the device when low
2	U/D	Controls the direction of resistance change
3	INC	Steps the wiper position when toggled
4	Vh	High end of the resistor network
5	Vw	Adjustable wiper output
6	Vl	Low end of the resistor network
7	Vcc	Power supply, typically 5V
8	GND	Ground connection

Applications

• Programmable voltage dividers
• Digital volume control
• Electronic volume adjustment
• Sensor calibration
• Sensor sensitivity adjustment
• Analog signal adjustment
• Variable resistance control
• Variable gain amplifier experiments
• Programmable analog circuits
• Microcontroller-controlled resistance
• Electronic tuning circuits
• Analog interface experiments
• Educational electronics projects
• Arduino potentiometer projects
• ESP32 control experiments
• ESP8266 analog-control projects
• Embedded electronics
• Automation projects
• DIY electronics
• Circuit prototyping
• Laboratory experiments
• Electronic calibration systems
• Digital control of analog parameters
• Software-controlled analog adjustment

Package Includes

• 1 × X9C104 100K Digital Potentiometer Module

Pin Interface

Pin	Name	Function
1	CS	Chip Select – Enables the device when low
2	U/D	Controls the direction of resistance change (Up/Down)
3	INC	Steps the wiper position when toggled
4	Vh	High end of the resistor network
5	Vw	Adjustable wiper output
6	Vl	Low end of the resistor network
7	Vcc	Power supply (5V)
8	GND	Ground connection

// X9C104 Digital Potentiometer Example Code // Controls resistance up/down using digital pins // Define pin connections for the X9C104 const int CS_PIN = 10; // Chip Select const int INC_PIN = 9; // Increment const int UD_PIN = 8; // Up/Down void setup() { // Set pin modes pinMode(CS_PIN, OUTPUT); pinMode(INC_PIN, OUTPUT); pinMode(UD_PIN, OUTPUT); // Initialize pins digitalWrite(CS_PIN, HIGH); // Disable the device initially digitalWrite(INC_PIN, HIGH); // Default INC state digitalWrite(UD_PIN, LOW); // Default direction } void loop() { // Example: Increase resistance by 10 steps digitalWrite(CS_PIN, LOW); // Enable the device digitalWrite(UD_PIN, HIGH); // Direction: Increase resistance for (int i = 0; i < 10; i++) { digitalWrite(INC_PIN, LOW); // Trigger step delayMicroseconds(5); // Short delay (minimum 1 µs) digitalWrite(INC_PIN, HIGH); // Reset increment pin delayMicroseconds(5); } digitalWrite(CS_PIN, HIGH); // Disable device delay(1000); // Wait 1 second // Example: Decrease resistance by 5 steps digitalWrite(CS_PIN, LOW); digitalWrite(UD_PIN, LOW); // Direction: Decrease resistance for (int i = 0; i < 5; i++) { digitalWrite(INC_PIN, LOW); delayMicroseconds(5); digitalWrite(INC_PIN, HIGH); delayMicroseconds(5); } digitalWrite(CS_PIN, HIGH); delay(1000); }

Product Disclaimer

Product images are shown for illustrative and representational purposes only. The actual product may vary slightly in colour, dimensions, PCB layout, component placement, pin-header arrangement, or appearance depending on the manufacturing batch.

Arduino boards, ESP32 boards, connecting wires, breadboards, power supplies, displays, sensors, and other components shown in product images are not included unless specifically mentioned in the package contents.

The X9C104 is a digital potentiometer, not a direct replacement for every mechanical potentiometer application. Its allowable voltage, current, power dissipation, and signal range must be considered when designing the connected circuit.

The device operates within the applied supply-voltage range, typically 0V to Vcc. Negative voltages must not be applied to the module pins.

The resistance adjustment is divided into discrete steps rather than providing infinitely variable mechanical adjustment. The actual resistance and step values may vary slightly according to device tolerance and operating conditions.
