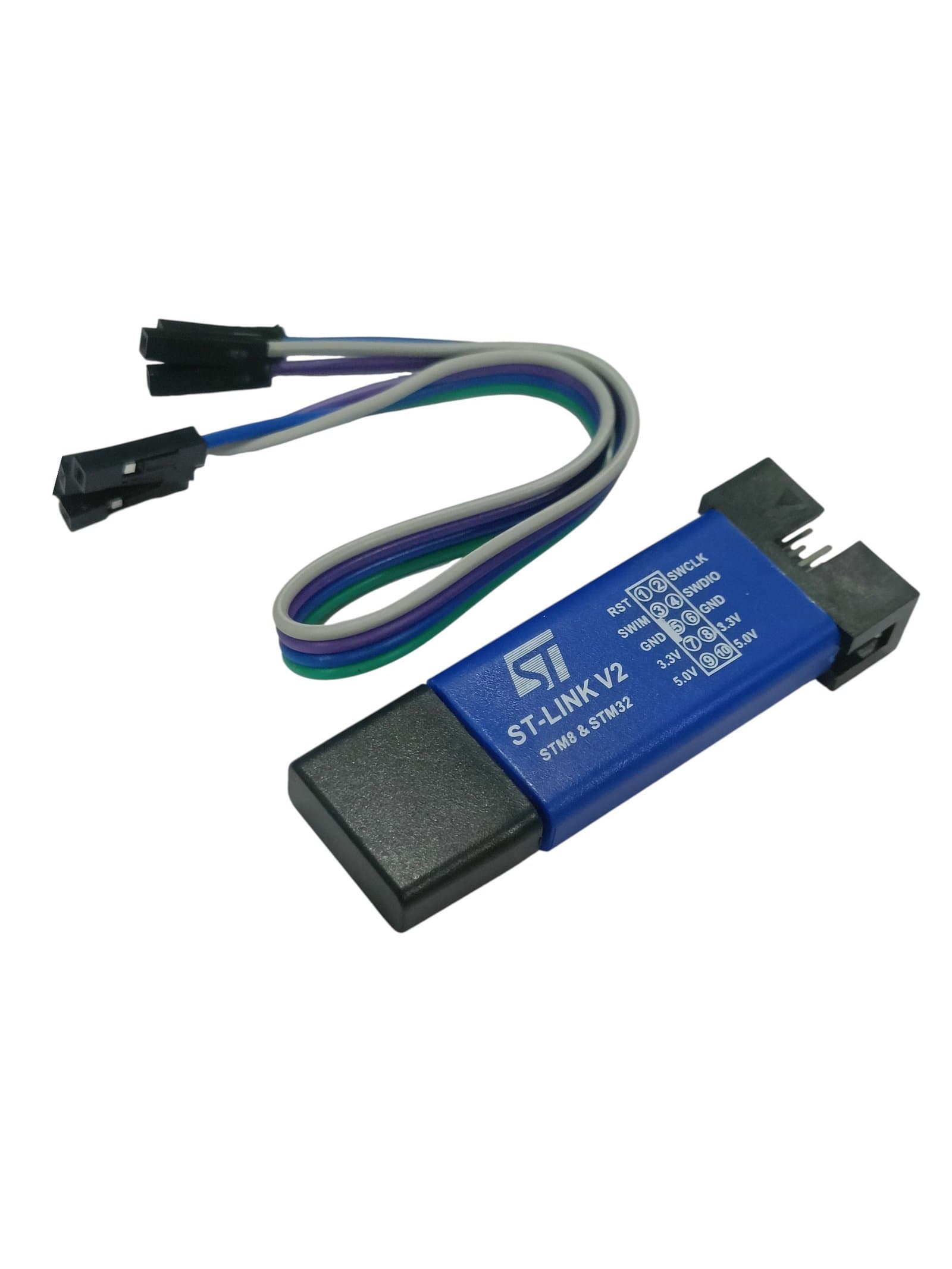

ST-Link V2 Mini STM8 STM32 Simulator Downloader Programmer

ST-Link V2 Mini STM8 STM32 Simulator Downloader Programmer

The ST-Link V2 Mini Programmer and Debugger is a compact and reliable in-circuit programming and debugging tool designed for STM8 and STM32 microcontrollers from STMicroelectronics. It allows users to program, debug, and test embedded applications directly from a computer, making it suitable for electronics enthusiasts, students, developers, and embedded-system projects.

The programmer connects to a computer through USB 2.0 and supports both SWIM programming for STM8 devices and SWD programming and debugging for STM32 devices. Its compact design makes it convenient for development boards, prototype circuits, and laboratory applications.

With support for common debugging functions such as breakpoints, single-step execution, register inspection, and variable monitoring, the ST-Link V2 Mini provides an efficient solution for developing and troubleshooting STM8 and STM32 firmware.

Key Features

• Compact and lightweight ST-Link V2 Mini programmer and debugger
• Supports STM8 and STM32 microcontrollers
• STM8 programming and debugging through the SWIM interface
• STM32 programming and debugging through the SWD interface
• USB 2.0 interface for easy connection to a computer
• USB-powered operation without requiring an external power supply
• 3.3V and 5V output voltage options for flexible development
• Built-in 500mA resettable protection fuse
• Supports firmware programming and debugging functions
• Provides breakpoints and single-step debugging
• Allows monitoring of registers and variables during debugging
• Supports programming of compatible Flash memory, EEPROM, and other device memory
• Firmware can be upgraded for compatibility with additional supported STM devices
• Suitable for development boards, prototypes, and embedded electronics projects

ST-Link V2 Mini Pin Connection

The ST-Link V2 Mini provides connections for programming and debugging compatible STM8 and STM32 development boards.

STM8 SWIM connection:

• SWIM
• GND
• VCC

STM32 SWD connection:

• SWDIO
• SWCLK
• GND
• VCC

Always check the target microcontroller’s pinout before making connections.

Specifications

Specification	Details
Product Type	ST-Link V2 Mini Programmer & Debugger
Supported MCUs	STM8 and STM32
STM8 Interface	SWIM
STM32 Interface	SWD
Computer Interface	USB 2.0
Output Voltage	3.3V / 5V
Protection	500mA Resettable Fuse
Power	USB Powered
Programming	Flash, EEPROM and compatible memory
Debugging	Breakpoints, single-step, registers and variables

Supported Software

The ST-Link V2 Mini can be used with compatible STMicroelectronics and third-party development environments, including:

• ST-LINK Utility
• STVD
• STVP
• IAR EWARM
• IAR EWSTM8
• Keil MDK / RVMDK
• Atollic TrueSTUDIO

Software and device compatibility may vary depending on the microcontroller and development environment being used.

Applications

The ST-Link V2 Mini is suitable for a wide range of embedded electronics applications, including:

• STM8 microcontroller programming
• STM32 microcontroller programming
• Firmware uploading and testing
• Embedded-system debugging
• Development board programming
• IoT device development
• Robotics and automation projects
• Industrial electronics prototypes
• Smart-device development
• Educational electronics projects
• Laboratory and embedded-system experiments

How It Works

The ST-Link V2 Mini acts as a bridge between your computer and STM8/STM32 microcontroller. After connecting the programmer to the target board, compatible software can be used to upload firmware, erase or program memory, and debug the application.

For STM8 devices, the SWIM interface is used, while STM32 devices generally use the SWD interface. The programmer receives power through USB and can also provide a suitable voltage output to the target circuit when required.

Package Includes

• 1 × ST-Link V2 Mini STM8 STM32 Simulator Downloader Programmer
• 4 × Dupont Connection Cables

Important Note

• Ensure the VCC, GND, and programming/debugging pins are connected correctly before powering the target board.
• Select the appropriate 3.3V or 5V supply according to the requirements of your target circuit.
• The actual supported devices and software features depend on the ST-Link firmware and target microcontroller.
• Random color may be supplied depending on stock availability.
• This product comes in plastic  casing body .
