SMA Female to U.FL (IPX) Pigtail Cable – 50cm Extension

50cm U.FL (IPX) to SMA Female Antenna Cable

Product Description

The 50cm U.FL (IPX) to SMA Female Antenna Cable is a flexible RF adapter cable designed to connect devices with small U.FL/IPX/IPEX connectors to standard SMA antennas. It is ideal for ESP32, GSM, GPS, LoRa, and other wireless modules that require an external antenna connection.

The 50cm cable length provides installation flexibility, allowing the wireless module to be placed inside an enclosure while the antenna can be mounted externally for improved signal access.

Flexible Installation

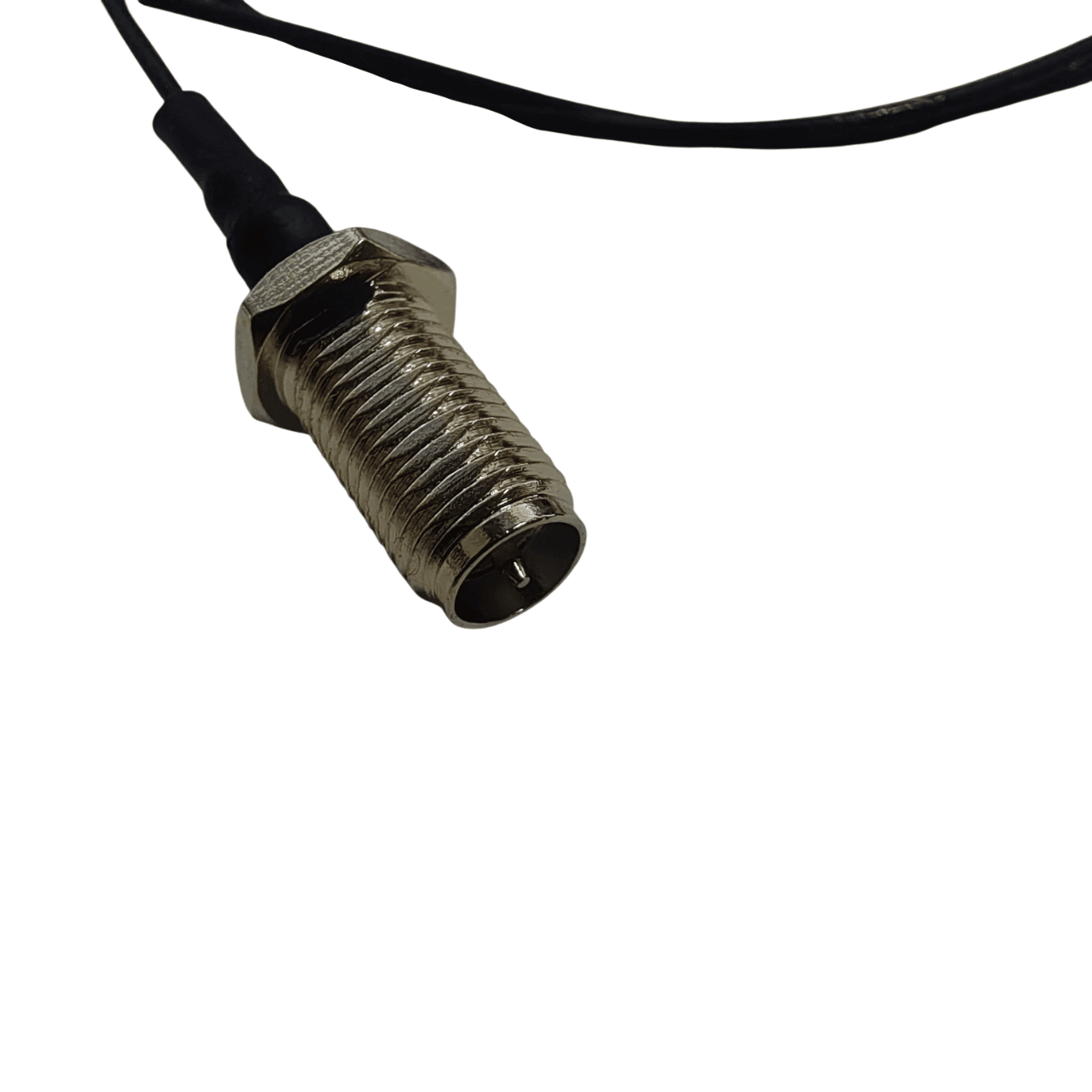

The cable provides extended reach for projects where the antenna and wireless module cannot be installed close together. The SMA end includes a bulkhead mounting design with nut and washer, allowing secure installation through suitable panels or project enclosures.

Low-Loss RF Connection

The cable uses a 50-ohm coaxial design intended for stable RF signal transmission. It is suitable for wireless applications across frequencies up to the specified 6GHz range.

Key Features

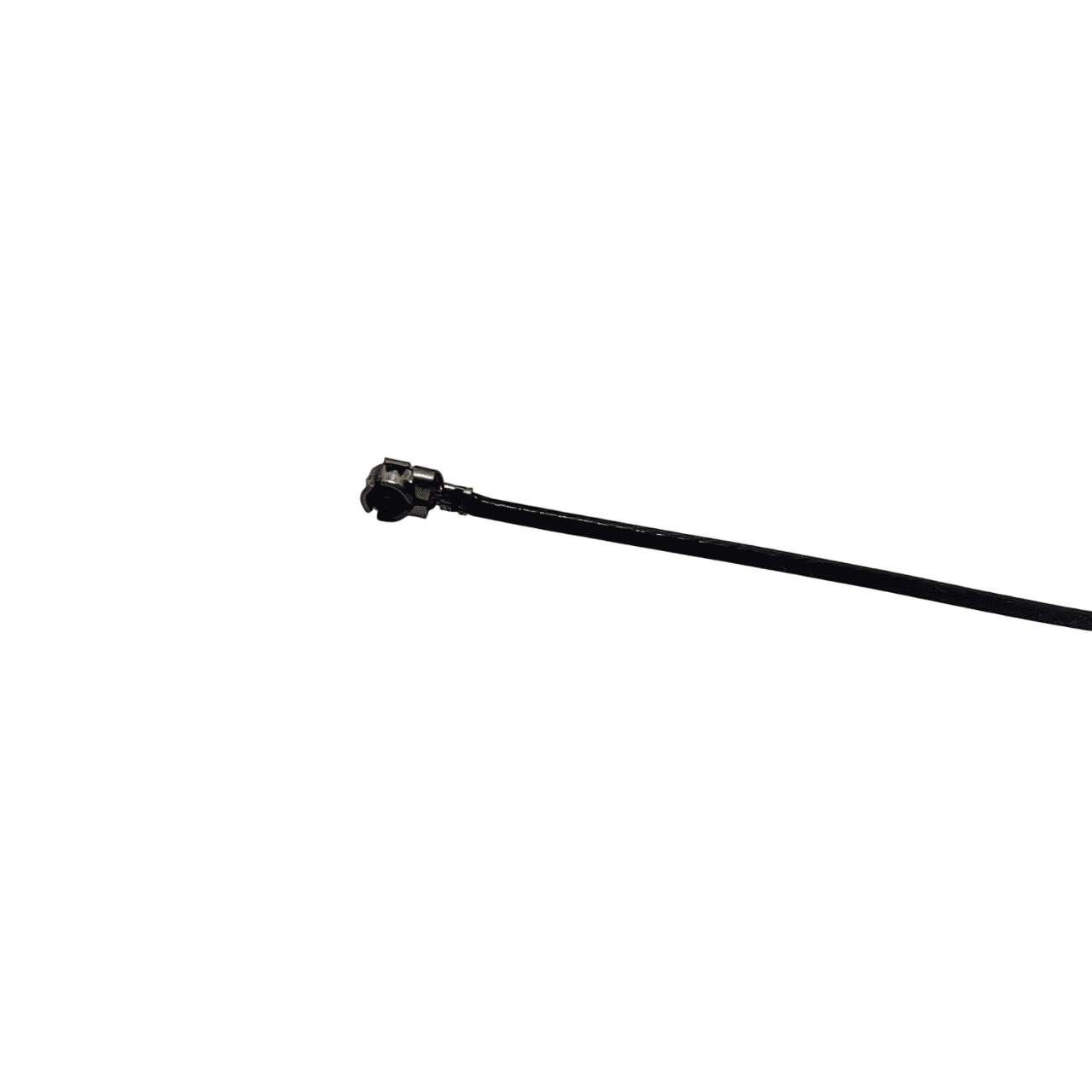

• U.FL / IPX / IPEX to SMA Female adapter
• 50cm flexible cable
• 50Ω impedance
• SMA bulkhead mounting design
• Low-loss coaxial cable
• Gold-plated contacts
• Supports common wireless frequency bands
• Suitable for ESP32, GSM, GPS, and LoRa projects
• Easy installation inside project enclosures

Technical Specifications

Feature	Specification
Connector A	U.FL / IPX / IPEX
Connector B	SMA Female, Bulkhead
Cable Length	50cm
Impedance	50Ω
Frequency Range	0–6GHz
Cable Type	Low-Loss Coaxial
Cable Size	1.13mm or Similar
Insulation	High-Temperature Compatible

Typical Application Scenarios

IoT Enclosures

Useful for connecting an external Wi-Fi or Bluetooth antenna to wireless modules installed inside project boxes.

GSM/GPRS Modules

Suitable for connecting SIM800, SIM900, and compatible modules to external cellular antennas.

GPS Systems

Can be used to position a GPS antenna away from the main electronics for flexible installation.

LoRa Projects

Suitable for connecting external antennas to compatible 433MHz, 868MHz, or 915MHz LoRa modules.

Applications

• ESP32 wireless projects
• ESP32-CAM antenna extension
• GSM/GPRS modules
• GPS tracking systems
• LoRa/LoRaWAN nodes
• Wi-Fi devices
• Bluetooth devices
• IoT enclosures
• Wireless development boards
• External antenna installations

Package Includes

• 1 × U.FL (IPX) to SMA Female Antenna Cable, 50cm

Note: Antenna and wireless modules are not included.

Important Note

Connector Compatibility

Before purchasing, confirm that your device uses a U.FL/IPX/IPEX connector. Also verify that your antenna requires a standard SMA Female connection rather than RP-SMA.

Installation

Avoid excessive bending or pulling on the miniature U.FL connector, as it is designed for compact RF connections and can be damaged by excessive mechanical force.

Product Disclaimer

Product specifications may vary slightly between manufacturers and production batches. Please verify connector type, frequency requirements, and dimensions before installation.

Product images are for illustrative purposes only and may differ slightly from the actual product.
