SimpleFOCMini Brushless DC Motor Driver Board Module FOC Control Driver SVPWM/SPWM Control Algorithm

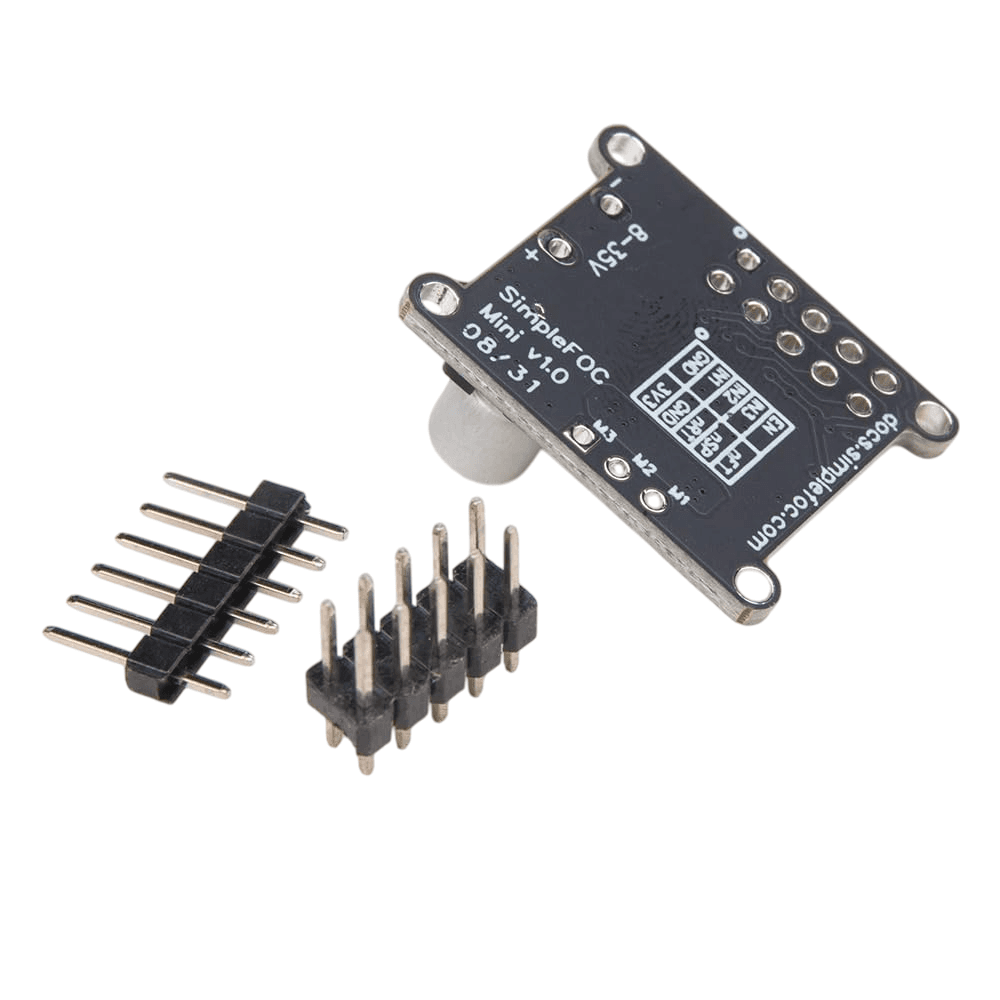

SimpleFOCMini Simple FOC Mini is a compact, low-cost, and modular brushless DC motor driver designed for running gimbal BLDC motors with advanced Field-Oriented Control (FOC) algorithms. Built around the MS8313 chip, this board provides three independently controllable half H-bridge drivers, making it ideal for precise control of low-power BLDC motors in robotics, drones, gimbals, and hobby electronics.

Check out our high-power solutions: MKS ESP32 FOC Mega and the MKS ESP32 FOC V2.0 Dual Channel Board.

Powered by the MS8313 chipset, this board is engineered to deliver precision motor control, high efficiency, and robust protection. Its versatile design supports advanced motor control methods, making it a dependable choice for both professional and hobbyist applications. The MS8313 is a generic variant of the Texas Instruments DRV8313 chip, shares the same architecture and can be programmed identically.

The board supports SPWM and SPVMW control algorithms and integrates seamlessly with the Arduino SimpleFOC library, allowing developers to quickly prototype and control motor current, torque, velocity, and position. With input voltage support from 8–30V, output current up to 2.5A per phase, and compatibility with both 3.3V and 5V control signals, SimpleFOCMini offers flexibility for a wide range of projects.

Its key advantages include a small footprint, affordable cost, long-term component availability, and full compatibility as a drop-in replacement for the SimpleFOCShield v1. By combining powerful features with an open-source control library, SimpleFOCMini enables accessible and intuitive BLDC motor control, making it a perfect solution for fast prototyping and DIY motor control applications.

SimpleFOC (Simple Field Oriented Control) is an open-source library and ecosystem for controlling brushless DC (BLDC) motors, stepper motors, and gimbal motors using the Field-Oriented Control (FOC) algorithm.

• Field-Oriented Control (FOC) is a modern motor control technique that allows very smooth, precise, and efficient control of motor torque, speed, and position. It’s widely used in robotics, drones, gimbals, electric vehicles, and industrial automation.

• The SimpleFOC library makes it easy for hobbyists, researchers, and developers to use FOC without needing deep motor control expertise. It integrates with Arduino and other microcontrollers, providing a simple API to control current, velocity, and position.

• Along with the library, the SimpleFOC hardware boards (like SimpleFOCMini and SimpleFOCShield) give users ready-to-use driver modules for BLDC and gimbal motors

Key Benefits of SimpleFOC

1. Open-source & community-driven – free to use and constantly improving.

2. User-friendly – abstracts away complex motor control math.

3. Modular – works with many MCUs (Arduino, STM32, ESP32, etc.).

4. Smooth & silent operation – thanks to FOC, motors run with less noise and vibration.

5. Flexible – supports control of torque, velocity, and angle (position).

Specifications:
Model:-SIMPLEFOC-MINI
Product Size: Approx. 25.8 x 21mm
Weight: 3g
Material: PCB
Colour: Black

Features:
1. Input Power Supply Voltage: 8~30V
2. Maximum Output Current Per Channel is 2.5A
3. On-Board 3.3v Ldo Output, Maximum Current 10mA
4. Input Control Signal Compatible with 3.3V and 5V.
5. Support Spwm and Spvmw Control Algorithms ; Powerful Open Source Libraries, Fast Start.

Coding connections and Examples avaialble here
Please note: Images are for references only. The actual image of the product may vary slightly in appearance. Please cross check teh documentation for exact features at the link given above.
