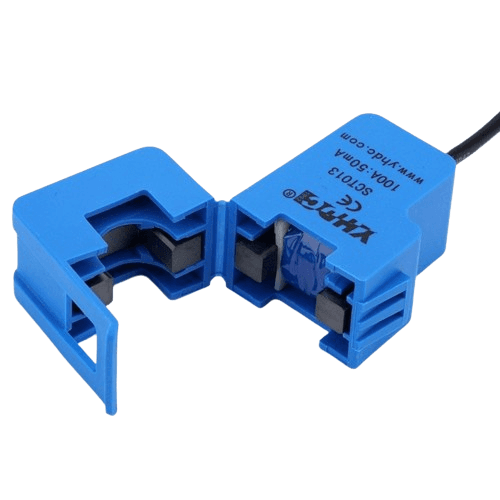

SCT-013-100 Non-Invasive AC Current Sensor Clamp Sensor 100A

The SCT 013 000 100A Non-Invasive AC Current Sensor is a split-core type clamp meter sensor designed for measuring AC current up to 100 amperes. As a current transformer (CT), it is particularly useful for gauging alternating current, with applications such as monitoring total building power consumption. The split-core design of the SCT-013-000 makes it ideal for Direct Installation Equipment (DIE) use, allowing easy attachment to either the live or neutral wire entering the building without the need for extensive high-voltage electrical work.

Similar to other transformers, the current transformer comprises a primary winding, a magnetic core, and a secondary winding. In building monitoring applications, the primary winding is connected to either the live or neutral wire entering the building, passing through the CT’s aperture. The secondary winding consists of multiple turns of fine wire housed within the transformer casing.

Features:
1. Non-invasive current transformer.
2. Suitable for various applications, including lighting equipment, AC motors, air compressors, monitoring, current measurement, and protection.
3. Complies with UL94-V0 flame retardant properties.
4. Offers two forms of output: current and voltage (voltage output built-in the sampling resistor).
5. Non-linearity of ±3% (10%-120% rated input current).
6. Equipped with a 3.5mm output plug.

The SCT 013 000 current sensor provides a versatile and safe solution for accurate AC current measurements, with a user-friendly split-core design suitable for diverse applications.

Please Note: Images are for representation only. The actual Product may differ slightly in appearance.
