nanoESP32-C6 N8 ESP32 C6 Development Board with Wi-Fi 6, BLE 5, Zigbee, Thread and Dual USB Type-C

Description

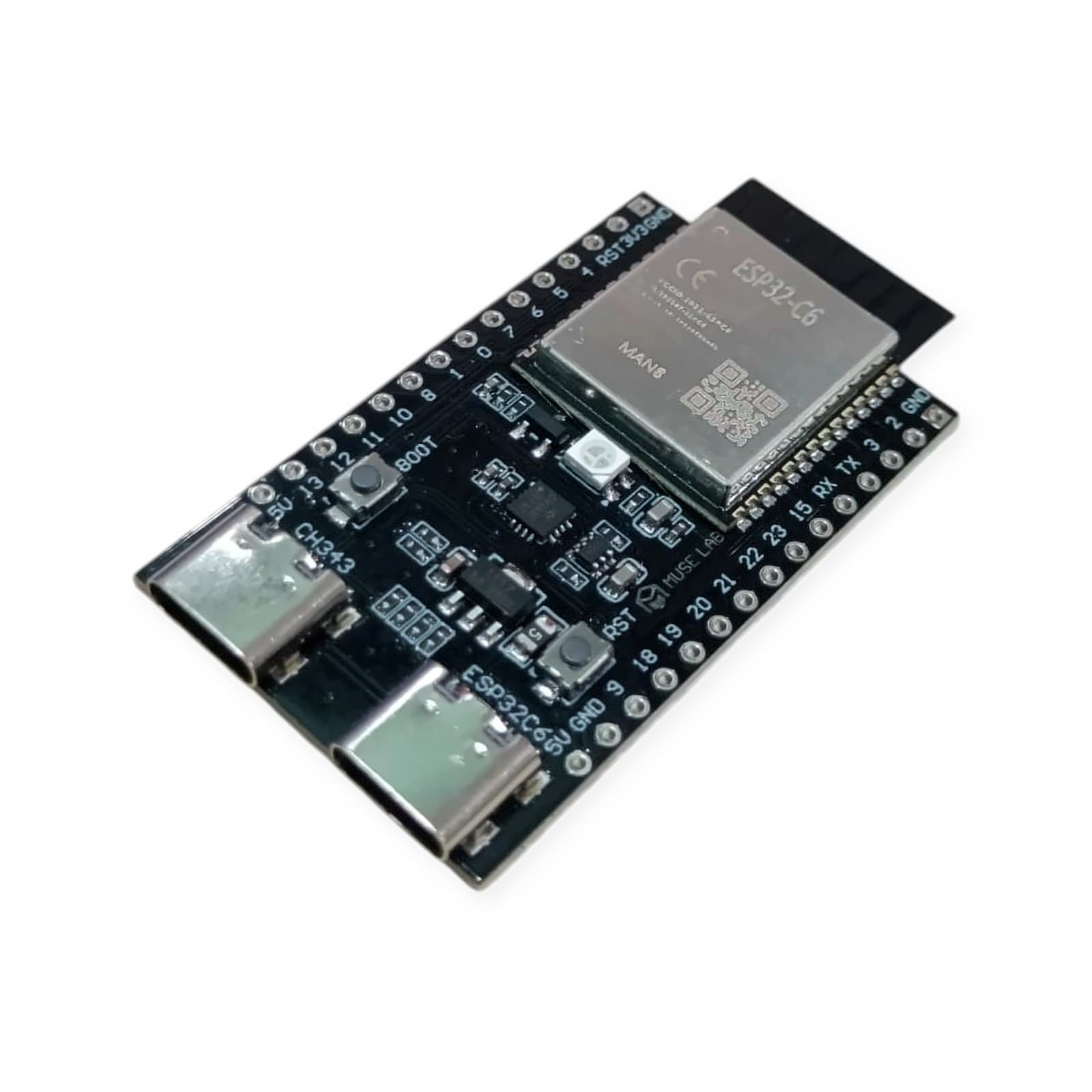

The MuseLab nanoESP32-C6 N8 is a compact ESP32 C6 development board designed for IoT, wireless automation, smart-home, Matter, Zigbee, Thread and embedded-system projects.

It is based on the Espressif ESP32-C6-WROOM-1-N8 module, which combines a 32-bit RISC-V processor with 2.4 GHz Wi-Fi 6, Bluetooth Low Energy and IEEE 802.15.4 wireless connectivity. The N8 version provides 8 MB of Quad SPI flash memory for firmware, libraries and application data.

Unlike many compact ESP32 boards, the nanoESP32-C6 includes two USB Type-C ports. One port connects through the onboard CH343 USB-to-serial converter for convenient programming and serial debugging. The second port is connected directly to the native USB interface of the ESP32-C6.

An onboard addressable RGB LED, BOOT button and RESET button simplify development and testing. The board can be programmed using the Arduino IDE or Espressif ESP-IDF, making it suitable for beginners as well as professional embedded developers. ESP32-C6 is officially supported by the Arduino-ESP32 platform.

Main Features

• ESP32-C6-WROOM-1-N8 module with 8 MB flash
• 32-bit RISC-V processor operating at up to 160 MHz
• 2.4 GHz Wi-Fi 6 connectivity
• Backward compatible with 802.11 b/g/n Wi-Fi
• Bluetooth 5 Low Energy support
• IEEE 802.15.4 radio
• Zigbee 3.0 and Thread 1.3 support
• Dual USB Type-C connectors
• Onboard CH343 USB-to-serial converter
• Native ESP32-C6 USB connection
• Onboard addressable RGB LED
• BOOT and RESET buttons
• PCB antenna
• Arduino IDE and ESP-IDF compatible
• Compact and breadboard-friendly design

The ESP32-C6 includes a high-performance RISC-V processor running at up to 160 MHz, a low-power RISC-V processor running at up to 20 MHz, 512 KB SRAM and 320 KB ROM.

Specifications

Parameter	Details
Product name	nanoESP32-C6
Board type	ESP32 C6 Development Board
Manufacturer	MuseLab
Module	ESP32-C6-WROOM-1-N8
Flash memory	8 MB Quad SPI flash
Main processor	32-bit RISC-V processor
Maximum CPU frequency	Up to 160 MHz
Low-power processor	32-bit RISC-V, up to 20 MHz
SRAM	512 KB
ROM	320 KB
Wi-Fi	2.4 GHz IEEE 802.11 b/g/n/ax
Wi-Fi 6	Supported
Bluetooth	Bluetooth 5 Low Energy
Bluetooth Classic	Not supported
IEEE 802.15.4	Supported
Zigbee	Zigbee 3.0 capable
Thread	Thread 1.3 capable
USB connectors	2 × USB Type-C
USB-to-serial	Onboard CH343
Native USB	ESP32-C6 USB Serial/JTAG
Onboard LED	Addressable RGB LED
Buttons	BOOT and RESET
Antenna	Onboard PCB antenna
Logic level	3.3 V
Programming	Arduino IDE and ESP-IDF
Interfaces	GPIO, UART, SPI, I2C, I2S, PWM, RMT, TWAI and ADC

Wireless protocol support and peripheral availability are provided by the ESP32-C6 platform. Actual protocol operation depends on the selected firmware, libraries and software configuration.

USB Port Selection and Wiring

CH343 USB Type-C Port

Use the USB Type-C connector connected to the CH343 USB-to-serial converter for:

• Uploading programs
• Serial Monitor communication
• Firmware debugging
• Conventional UART-based flashing
• Automatic reset and download operation

This is generally the easiest USB port to use when programming the board through the Arduino IDE.

Native ESP32-C6 USB Type-C Port

Use the native USB Type-C connector for:

• USB CDC serial communication
• Native firmware flashing
• USB Serial/JTAG debugging
• Direct communication with the ESP32-C6 USB peripheral

The ESP32-C6 native USB interface supports USB CDC and JTAG. It should not be described as a general-purpose USB host port.

Native USB Pin Notice

The ESP32-C6 native USB signals use:

• GPIO12: USB D−
• GPIO13: USB D+

Avoid assigning GPIO12 and GPIO13 to other peripherals when using the native USB connection.

Power and GPIO Precautions

• The GPIO pins operate at 3.3 V logic.
• Do not apply 5 V directly to a GPIO pin.
• Use the USB Type-C connector for convenient board power.
• Connect all external sensor grounds to a board GND pin.

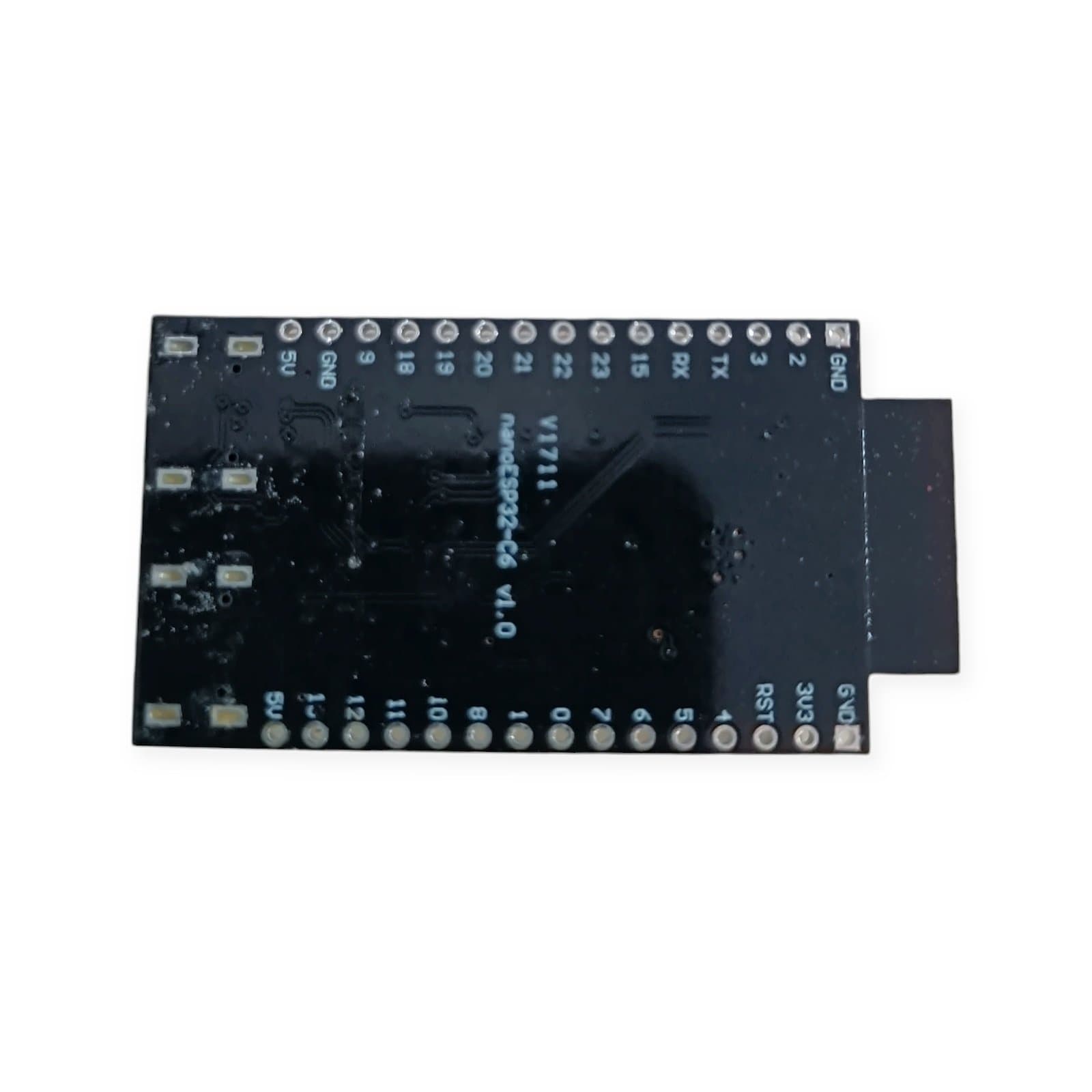

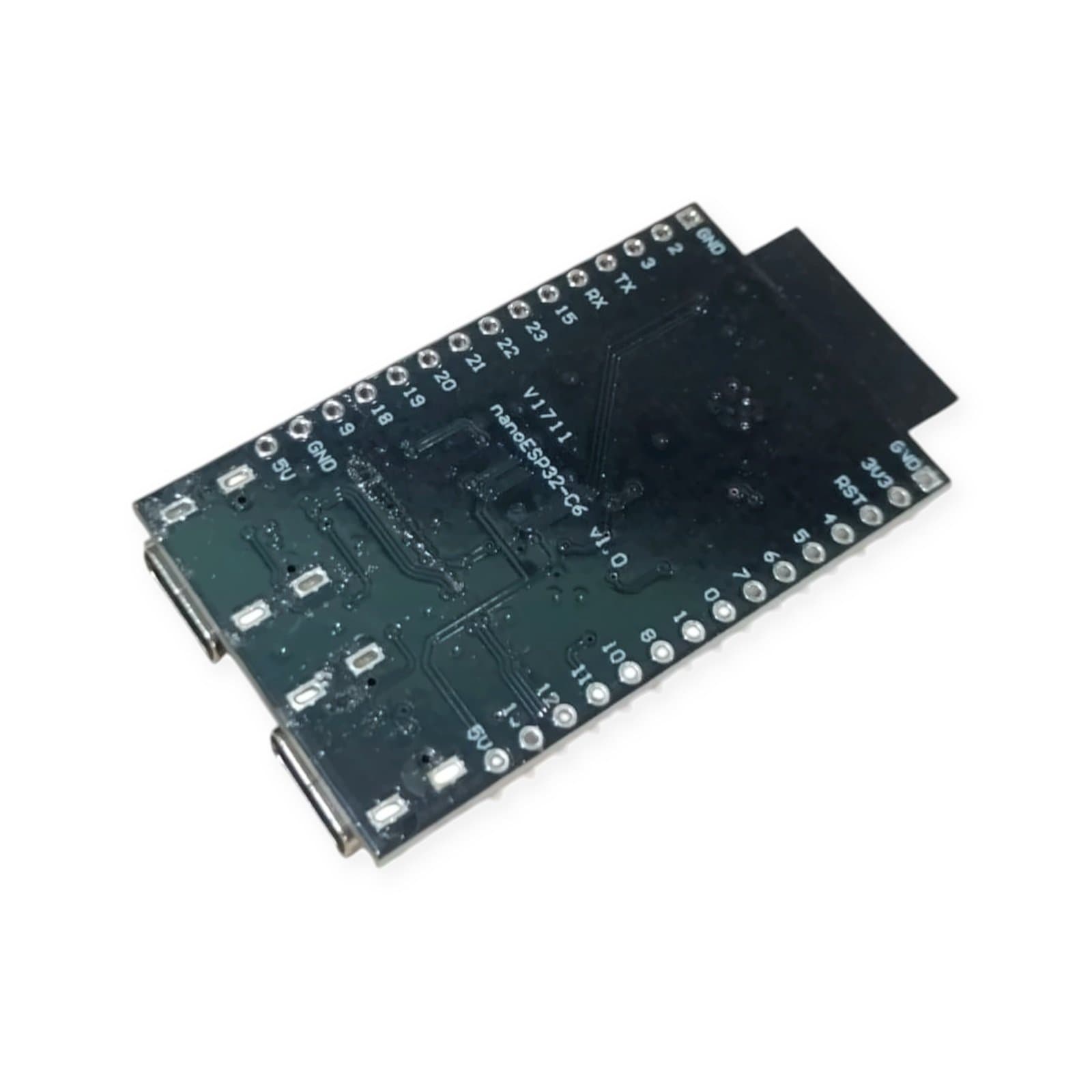

• Check the labels printed on the PCB before making connections.
• Pin availability may depend on the board revision and active USB functions.

Arduino IDE Setup

1. Install the latest Arduino IDE.
2. Open File → Preferences.
3. Add the Espressif ESP32 board package URL to Additional Board Manager URLs.
4. Open Tools → Board → Boards Manager.
5. Search for esp32.
6. Install the official esp32 by Espressif Systems package.
7. Select a suitable generic ESP32-C6 development module from the board menu.
8. Set the flash size to 8 MB when this option is available.
9. Connect the CH343 USB Type-C port.
10. Select the detected COM port and upload the program.

ESP32-C6 is included as a stable supported target in the official Arduino-ESP32 platform.

ESP-IDF Basic Flashing Commands git clone https://github.com/espressif/esp-idf.git cd esp-idf ./install.sh . ./export.sh cd examples/get-started/blink idf.py set-target esp32c6 idf.py build idf.py -p /dev/ttyACM0 flash monitor

The MuseLab factory test firmware normally flashes the onboard RGB LED after the board is powered.

Applications

• Wi-Fi 6 IoT devices
• Zigbee sensors and controllers
• Thread-based smart-home devices
• Matter-compatible product development
• Bluetooth Low Energy beacons
• Wireless sensor networks
• Smart switches and lighting controls
• Home automation gateways
• Industrial monitoring systems
• Environmental data loggers
• Battery-operated IoT devices
• Robotics and embedded automation
• Educational RISC-V projects
• Wireless prototyping
• USB CDC and JTAG development

Package Includes

• 1 × MuseLab nanoESP32-C6 N8 ESP32 C6 Development Board

Important Product Disclaimer

The product image is for reference only. The actual product may vary slightly in colour, component placement, PCB marking, connector type, header style or board revision depending on the available manufacturing batch.

Technical specifications are based on the manufacturer’s information and available documentation. Features such as Zigbee, Thread, Matter, Bluetooth and Wi-Fi require suitable firmware, libraries and software configuration.
