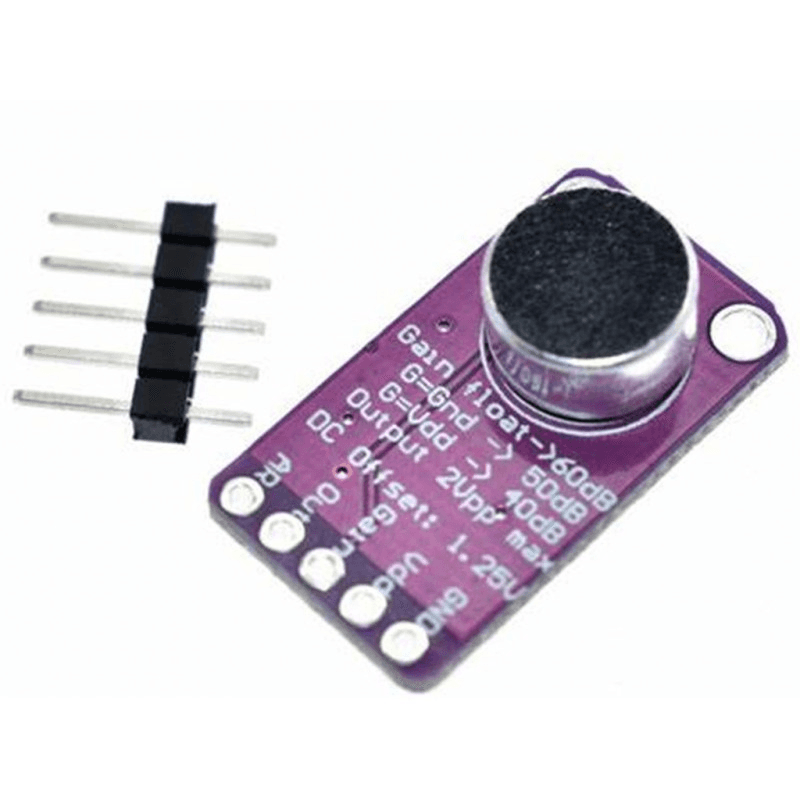

Max9814 Microphone Amplifier AGC Auto Gain Control Module

The Electret Microphone Amplifier with Automatic Gain Control (AGC) using the Maxim MAX9814 is a sophisticated solution for audio amplification with automatic level adjustment. Here are the key features and applications of this amplifier module:**Key Features:**1. **Electret Microphone Integration:**- Comes fully assembled with a 20-20KHz electret microphone soldered onto the board.2. **Maxim MAX9814 Chip:**- Utilizes the Maxim MAX9814 chip, specifically designed for amplifying electret microphones, especially in situations where audio loudness is unpredictable.3. **Automatic Gain Control (AGC):**- Features built-in AGC, which automatically adjusts the gain based on the input signal. This helps prevent distortion and clipping in the amplifier output.4. **AGC Functionality:**- AGC ensures that nearby loud sounds are quieted to prevent overwhelming the amplifier, and it amplifies quiet, far-away sounds for better detection.5. **Configurable Gain:**- The default ‘max gain’ is 60dB, but users can configure it to 40dB or 50dB by jumpering the Gain pin to VCC or ground.6. **Attack/Release Ratio Adjustment:**- Allows adjustment of the Attack/Release ratio, with options for 1:4000, 1:2000, or 1:500.7. **Output Characteristics:**- The output from the amplifier is about 2Vpp max on a 1.25V DC bias, making it compatible with Analog/Digital converters with up to 3.3V input.8. **Line Input Compatibility:**- Suitable for Line Input applications by using a blocking capacitor in series (1-100uF, with 100uF recommended for optimal sound).**Applications:**1. **Speech Recognition:**- Ideal for applications involving speech recognition where varying audio levels need to be accurately captured.2. **Bluetooth Headsets:**- Suitable for integration into Bluetooth headsets for clear and adaptive audio amplification.3. **Two-Way Communicators:**- Used in devices that require two-way communication, ensuring clear and intelligible sound capture.4. **High-Quality Portable Recorders:**- Enhances the audio recording capabilities of portable devices, providing high-quality amplification.5. **IP Phones/Telephone Conferencing:**- Well-suited for use in IP phones and telephone conferencing systems where clear and adaptive audio processing is essential.The use of this board in speech recognition, feeding the output directly to the ADC input of an ARM controller for processing, showcases its suitability for advanced audio applications. Overall, it is a versatile amplifier module designed for high-quality and adaptable audio amplification. ** The images shows are for representation only and actual product may slight differ in color and appearance.
