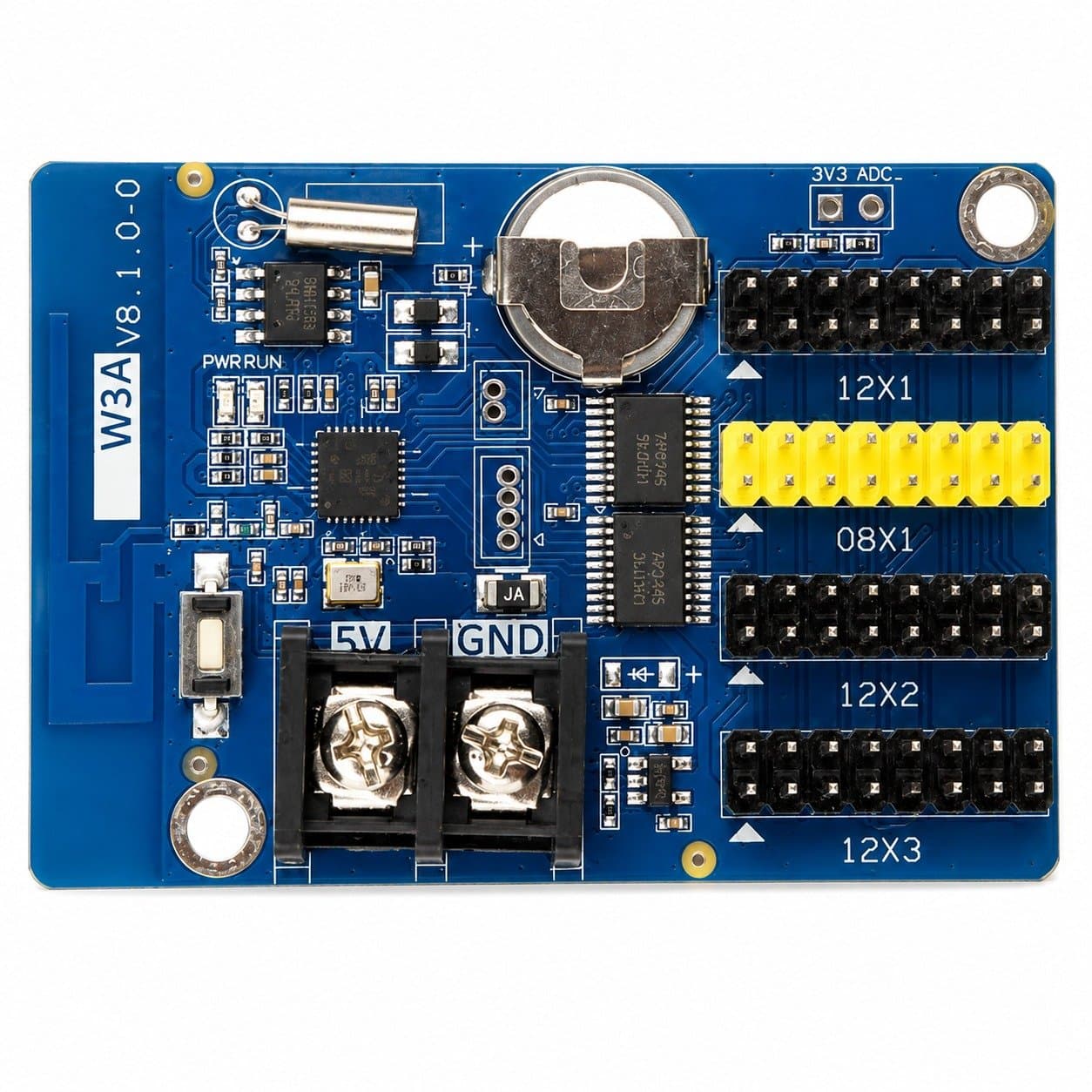

HD-W3A Wi-Fi LED Display Controller Card

The HD-W3A Wi-Fi LED Display Controller Card is a compact and versatile wireless controller designed for managing LED display panels, scrolling message boards, advertising screens, information boards, and programmable LED signboards. With built-in Wi-Fi connectivity, the controller allows display content to be configured and updated wirelessly, making it convenient for applications where messages and information need to be changed regularly.

The controller supports a loading capacity of up to 1024 × 48 pixels and a maximum display width of 1280 pixels, providing flexibility for different LED display configurations. It features 3 × HUB12 interfaces and 1 × HUB08 interface, allowing compatible LED modules to be connected directly to the controller.

An integrated brightness sensing function helps support brightness-related control for LED displays, making the controller suitable for installations where display visibility needs to be adjusted according to surrounding lighting conditions.

The HD-W3A is ideal for commercial LED signage, shop displays, advertising boards, digital notice boards, industrial information displays, educational displays, queue systems, and DIY LED matrix projects.

Features

• Built-in Wi-Fi wireless control
• Supports LED display loading up to 1024 × 48 pixels
• Maximum supported display width of 1280 pixels
• 3 × HUB12 interfaces
• 1 × HUB08 interface
• Supports brightness sensing/control
• Compact LED display controller design
• Wireless display content management
• Suitable for programmable LED message boards
• Designed for scrolling text and information displays
• Suitable for commercial and industrial applications
• Useful for indoor and outdoor LED signage
• Suitable for DIY LED matrix projects

Specifications

Parameter	Specification
Product Type	Wi-Fi LED Display Controller Card
Model	HD-W3A
Control Mode	Wi-Fi
Loading Capacity	1024 × 48 Pixels
Maximum Width	1280 Pixels
HUB12 Interface	3
HUB08 Interface	1
Sensor	Brightness
Application	LED Display / LED Signboard Control

Design and Construction

The HD-W3A features a compact controller-board design with multiple HUB interfaces for connecting compatible LED display modules. Its wireless connectivity provides a convenient way to manage display content without requiring a direct wired connection for every update.

The multiple HUB12 and HUB08 interfaces provide flexibility when connecting different compatible LED panel configurations. The controller is suitable for building scrolling message boards, digital information displays, and programmable LED signage.

Working Principle

The controller receives display content through its supported Wi-Fi control system and processes the information for the connected LED display modules. It then sends the required display data through the available HUB interfaces to control the connected LED pixels.

Users can use the controller to manage text, messages, information, and other supported display content depending on the compatible control software and configuration.

The brightness sensing function can be used for brightness-related control, helping the display maintain suitable visibility under different ambient lighting conditions.

LED Display Compatibility

The controller supports compatible LED modules connected through:

• 3 × HUB12 interfaces
• 1 × HUB08 interface

The supported display loading capacity is up to 1024 × 48 pixels, with a maximum display width of 1280 pixels as specified.

Always verify the LED panel type, scan configuration, interface type, power requirements, and controller compatibility before installation.

Applications

• LED scrolling message boards
• Shop display boards
• Commercial LED signboards
• Advertising LED displays
• Digital notice boards
• Information display systems
• Indoor LED signage
• Outdoor LED signage
• School and college information boards
• Industrial status displays
• Queue information displays
• Programmable message boards
• Public information displays
• Event display systems
• DIY LED matrix projects
• Custom LED display systems
• Educational electronics projects

Advantages

• Convenient Wi-Fi-based control
• Wireless display content updates
• Supports large LED display configurations
• Multiple HUB interfaces
• Brightness sensing capability
• Compact controller design
• Suitable for commercial and DIY applications
• Easy integration with compatible LED panels

Package Includes

• 1 × HD-W3A Wi-Fi LED Display Controller Card

Product Disclaimer

Product images are for illustrative and representational purposes only. The actual product may vary slightly in PCB colour, component placement, markings, connectors, dimensions, or overall appearance depending on the manufacturing batch.

LED panels, power supplies, cables, mounting accessories, and other components shown in product images are not included unless specifically mentioned in the package contents.

Please verify the LED panel type, HUB interface, scan configuration, resolution, power requirements, and controller compatibility before installation. The actual supported display configuration may also depend on the controller firmware and compatible control software.
