CCPM Servo Motor Tester Testing module

Product Description

The CCPM Servo Consistency Master / Servo Tester is a versatile testing device designed to check the operation, consistency, response, and movement of servo motors and Electronic Speed Controllers (ESCs). It can generate servo control signals, allowing users to test servos or an ESC and motor system without the need for a transmitter and receiver.

The tester supports three operating modes: Manual, Neutral, and Automatic (Window Wiper). In Manual mode, the control knob can be rotated at different speeds to observe servo reaction and response. Neutral mode moves the servo to its center or neutral position, while Automatic mode continuously moves the servo through its available range, similar to a window wiper.

The device can connect and test 1 to 3 servos simultaneously, allowing users to compare their movement and consistency. It can also be used with 1 to 3 ESCs to compare their response and operation. This makes it useful for identifying differences between multiple servos or ESCs.

It also supports CCPM helicopter servo testing, allowing up to three servos to be connected and selected for testing. For RC aircraft, the tester can be used to adjust and check steering or control servos, including setting their neutral position.

Features

• Multi-function servo and ESC tester
• Supports testing of 1–3 servos simultaneously
• Can test and compare 1–3 ESCs
• Three testing modes: Manual, Neutral, and Automatic
• Manual mode for checking servo response and reaction
• Neutral mode for setting servo center position
• Automatic mode provides continuous servo movement
• Automatic movement operates similar to a window wiper
• Supports servo consistency comparison
• Suitable for CCPM helicopter servo testing
• Can be used to test ESC and motor systems without a transmitter and receiver
• Compact and easy-to-use design
• Useful for RC, robotics, and hobby applications

Specifications

Parameter	Specification
Product Type	Servo Consistency Master / Servo Tester
Main Function	Servo and ESC Signal Testing
Operating Modes	Manual, Neutral, Automatic
Servo Connections	1–3 Servos
ESC Connections	1–3 ESCs
Manual Control	Rotary Knob
Servo Consistency Test	Yes
Neutral Position Test	Yes
Automatic Movement	Yes
CCPM Servo Testing	Supported
Transmitter/Receiver Required	No
Application	Servo, ESC, RC and Robotics Testing

Design and Construction

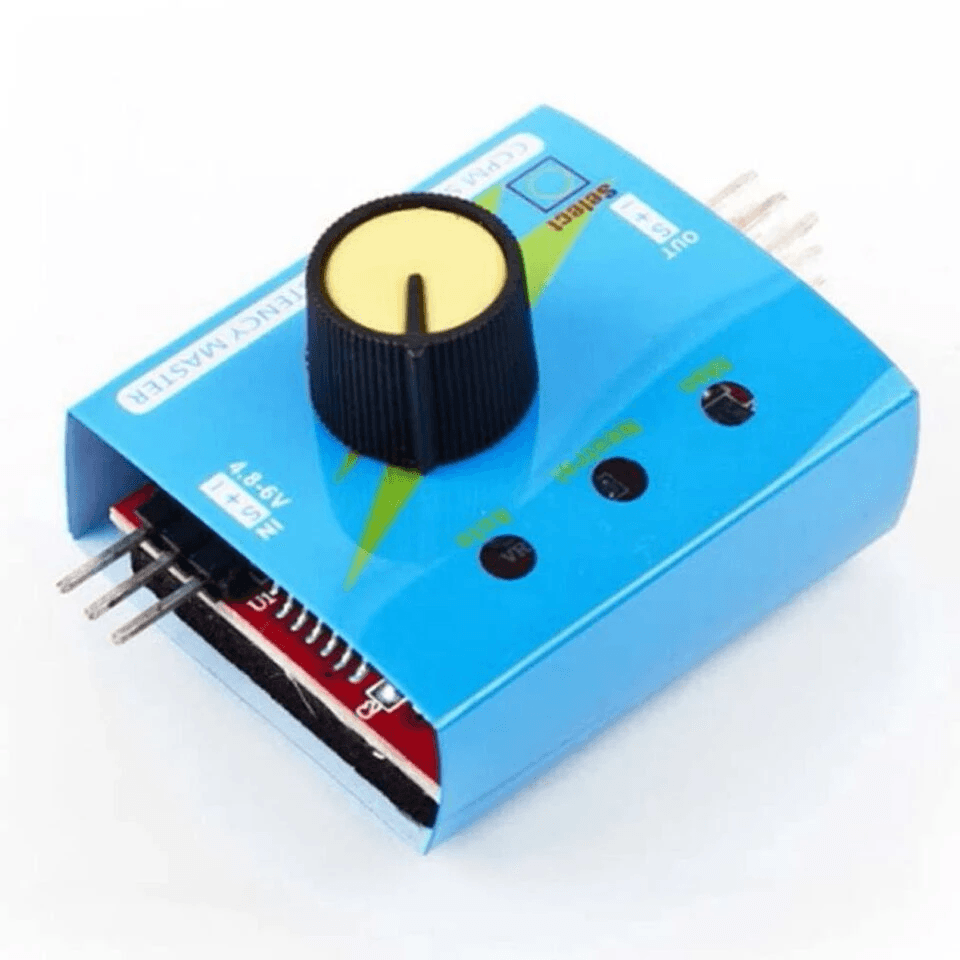

The CCPM Servo Consistency Master features a compact controller design with a rotary control knob and dedicated connection points for connecting servos or ESCs. Its simple interface allows users to select the required testing mode and control servo movement without requiring complicated equipment.

The multiple connection channels allow several servos or ESCs to be connected for comparison. This is particularly useful when checking whether multiple servos operate consistently or when comparing the response of different ESCs.

Working Principle

The tester generates control signals that simulate the signals normally provided by an RC receiver. These signals are sent to the connected servo or ESC to control its operation.

In Manual Mode, rotating the control knob changes the control signal, allowing the user to observe the servo’s movement and response speed.

In Neutral Mode, the tester generates a neutral control signal to position the servo at its center point, which can be useful for adjusting RC control mechanisms.

In Automatic Mode, the control signal continuously changes across the servo’s operating range, causing the servo to move back and forth like a window wiper. This allows users to observe the servo’s full movement and operation.

When multiple servos or ESCs are connected, their response and movement can be compared to identify differences in consistency or reaction.

Applications

• Servo motor testing
• Servo consistency testing
• ESC testing
• RC car and vehicle projects
• RC aircraft
• RC helicopters
• CCPM helicopter setup
• Robotics projects
• Servo-controlled mechanisms
• Motor and ESC testing
• Servo neutral-position adjustment
• DIY RC projects
• Hobby electronics
• Maintenance and troubleshooting
• Prototype testing

Package Includes

• 1 × CCPM Servo Consistency Master / Servo Tester

Product Disclaimer

This product is intended for testing and controlling compatible servo motors and ESCs. Ensure that the connected servo, ESC, motor, and power supply are compatible with the tester before use.

Servo motors, ESCs, motors, batteries, transmitters, receivers, and other accessories shown in product images are not included unless specifically mentioned in the package contents.

Product images are for representation only. The actual product may differ slightly in appearance, colour, dimensions, or labeling depending on the manufacturing batch.
