Hex Brass Coupling for Wheels 8mm Dia

Hex Brass Coupling for 130mm Robot Wheel – 8.1mm Bore

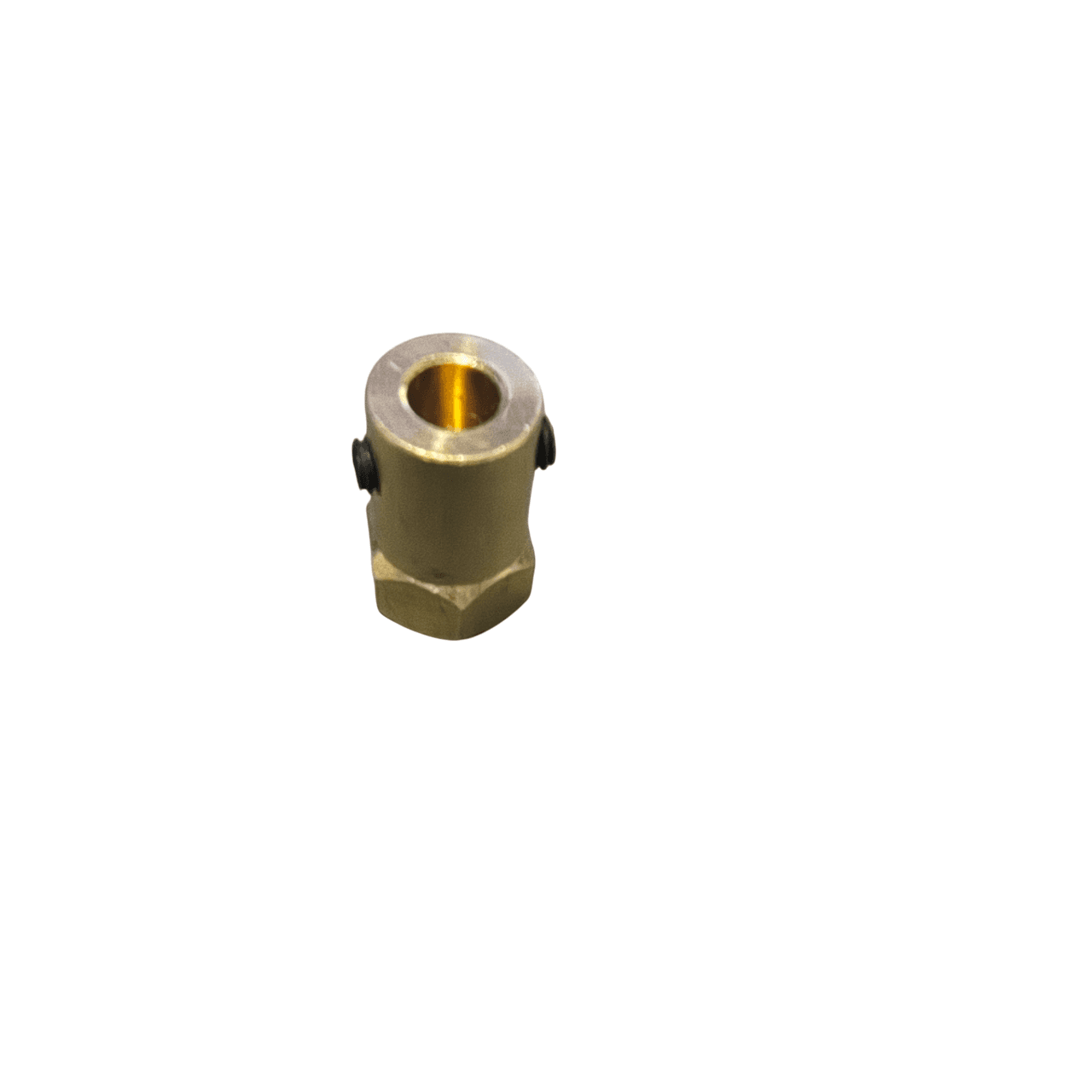

The Hex Brass Coupling is a compact and durable wheel coupling designed for use with our 130mm Robot Wheel for All Terrain and DIY Robotics. It provides a secure mechanical connection between compatible shafts, motors, and robot wheels, making it suitable for DIY robotics, robot cars, all-terrain vehicles, and custom wheel-driven mechanisms.

Manufactured from brass, the coupling offers good mechanical strength and durability while maintaining a lightweight and compact design. It features an 8.1mm bore diameter, 12mm edge width, and 18.05mm total length, making it suitable for compatible robotic wheel assemblies requiring an 8.1mm shaft interface.

With a weight of approximately 9g, this coupling is a lightweight solution for robotic applications where reducing additional mechanical load is important.

Features

• Hex-shaped brass wheel coupling
• Designed for compatible 130mm robot wheels
• Compatible with the 130mm Robot Wheel for All Terrain and DIY Robotics
• Durable brass construction
• Lightweight and compact design
• 8.1mm bore diameter
• 12mm edge width
• 18.05mm total length
• Provides a secure mechanical wheel connection
• Suitable for motor-to-wheel connections
• Ideal for DIY robotics projects
• Suitable for robot cars and mobile robots
• Useful for all-terrain robotic vehicles
• Suitable for custom wheel mechanisms
• Ideal for Arduino and microcontroller-based robots
• Suitable for mechanical prototypes and robotics projects

Specifications

Parameter	Specification
Product Type	Hex Brass Wheel Coupling
Material	Brass
Design	Hexagonal
Total Length	18.05 mm
Edge Width	12 mm
Bore Diameter	8.1 mm
Weight	Approximately 9 g
Compatible Wheel	130mm Robot Wheel
Application	Robot Wheels, DIY Robotics, Mobile Robots

Design and Construction

The Hex Brass Coupling is manufactured from brass to provide a reliable and durable mechanical connection for compatible robot wheel assemblies. Its compact hexagonal design allows it to integrate easily with compatible wheels and shafts while maintaining a lightweight form factor.

The 8.1mm bore diameter is designed for compatible shafts, while the 12mm edge width provides a suitable mechanical interface for the corresponding wheel assembly. The 18.05mm total length keeps the coupling compact for use in various robotic mechanisms.

With an approximate weight of only 9g, the coupling is suitable for mobile robots where maintaining a lightweight mechanical structure is important.

Compatible Product

The Hex Brass Coupling is designed for use with our:

130mm Robot Wheel for All Terrain and DIY Robotics

Please verify the shaft diameter, wheel interface, and mounting dimensions before installation to ensure proper compatibility.

Working Principle

The Hex Brass Coupling acts as a mechanical connection between a compatible motor or drive shaft and the robot wheel. The shaft is inserted into the 8.1mm bore, while the hexagonal outer profile interfaces with the compatible wheel.

When the motor rotates the shaft, the coupling transfers the rotational motion to the wheel, allowing the robot to move. The brass construction provides a rigid mechanical connection during normal operation.

The coupling is a passive mechanical component and does not require electrical power.

Applications

• DIY robotics projects
• Robot cars
• All-terrain robots
• Mobile robotic platforms
• Arduino-based robots
• Educational robotics projects
• Autonomous robot vehicles
• Motorized wheel assemblies
• Custom robotic vehicles
• Wheel drive mechanisms
• Mechanical prototypes
• RC robotics projects
• Custom wheel assemblies
• Robotics research and development
• Motor-to-wheel mechanical connections
• Servo and motor-driven mechanisms

Package Includes

• 1 × Hex Brass Wheel Coupling

Product Disclaimer

Product images are shown for illustrative and representational purposes only. The actual product may vary slightly in colour, dimensions, surface finish, machining details, or overall appearance depending on the manufacturing batch.

The compatible robot wheel, motor, shaft, screws, and other components shown in product images are not included unless specifically mentioned in the package contents.

Please verify the 8.1mm bore diameter, edge width, total length, shaft dimensions, and wheel interface before purchasing to ensure compatibility with your application.
