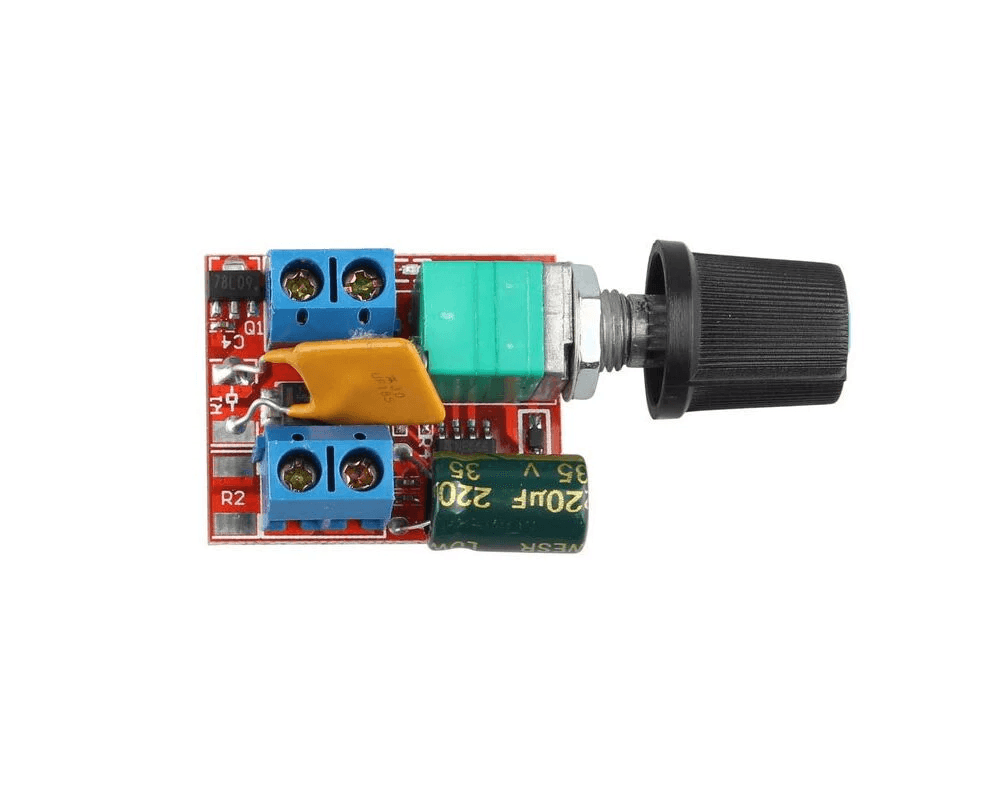

5A DC Motor PWM speed Controller Module 3V-35V

Name: 5A DC Motor PWM speed Controller Module 3V-35V
SKU: TT-AD14373DB672
Price: 159.3 INR
Availability: BackOrder

SKU: TT-AD14373DB672

₹159.30

Includes 18% GST

Specifications: 1.Operating voltage: DC3V-35V. 2.Control power: Maximum 90W. 3.Quiescent current: 0.01A(Standby). 4.PWM duty cycle: 1%-100%. 5.PWM frequency: 10khz. 6.Shell size: 30MM*24MM(Without handle) total height is 15MM. Note: Input voltage selection is divided into two stalls. Intermediate short contact and 3-1…

Delivery options

Courier from ₹79.00 per order · Free above ₹999.00

View shipping details

Product description

Specifications:

1.Operating voltage: DC3V-35V.
2.Control power: Maximum 90W.
3.Quiescent current: 0.01A(Standby).
4.PWM duty cycle: 1%-100%.
5.PWM frequency: 10khz.
6.Shell size: 30MM*24MM(Without handle) total height is 15MM.

Note: Input voltage selection is divided into two stalls. Intermediate short contact and 3-15V short contact to connect to low voltage 3-15V input, intermediate and short contact 5-35V to connect to high voltage 5-35V. The default send out goods is 5-35V.
