WT588D-16P Voice Sound Module – High Quality Audio Player

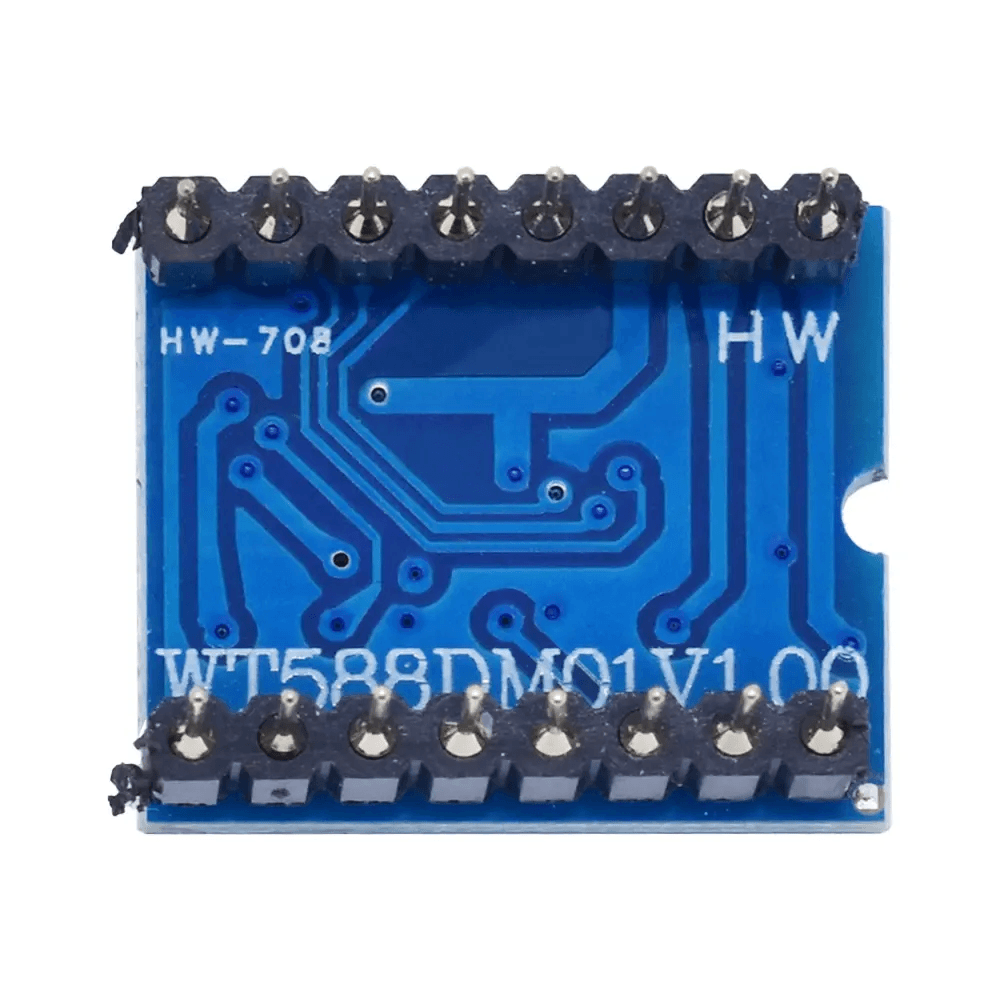

WT588D-16P 16M-Bit Voice Sound Audio Player Module

Product Description

The WT588D-16P Audio Receiver Board is a versatile voice and audio playback module designed to add high-quality voice prompts, announcements, alarms, and sound effects to electronic projects. Based on the WT588D-16P voice chip, it provides 16M-bit (approximately 2MB) memory for storing audio files.

The module supports multiple control methods, including Key Mode, Matrix Key Mode, and 3-wire Serial UART Mode, making it suitable for standalone applications as well as microcontroller-based projects.

High-Fidelity Audio Playback

The module features a built-in 13-bit D/A converter and 12-bit PWM output for audio playback. It can directly drive a small 0.5W/8Ω speaker, making it suitable for compact voice and sound applications without requiring an external amplifier for supported speaker configurations.

It supports WAV audio files with sampling rates from 6kHz to 20kHz, providing flexibility for different voice and sound requirements.

Large Audio Storage

With 16M-bit (approximately 2MB) Flash memory, the module can store multiple voice messages, announcements, sound effects, and other audio files.

Audio content can be customized and updated using a suitable programmer, allowing the module to be adapted for different projects and applications.

Multiple Control Modes

The WT588D-16P supports several methods of triggering audio playback:

Key Mode

Audio files can be triggered using connected push buttons or control keys.

Matrix Key Mode

Multiple keys can be arranged in a matrix configuration to control different audio files.

Serial UART Mode

The module can be controlled through a 3-wire serial interface, allowing microcontrollers such as Arduino and Raspberry Pi to select and play stored audio.

Key Features

• WT588D-16P voice/audio chip
• 16M-bit (approximately 2MB) audio memory
• WAV audio support
• 6kHz–20kHz sampling rate
• 13-bit D/A converter
• 12-bit PWM audio output
• Direct 0.5W/8Ω speaker drive
• Key trigger mode
• Matrix key mode
• 3-wire serial UART control
• 2.8V–5.5V operating voltage
• Low standby current
• Suitable for standalone and MCU-controlled projects

Technical Specifications

Feature	Specification
Module Model	WT588D-16P
Operating Voltage	DC 2.8V – 5.5V
Memory Capacity	16M bits (~2MB)
Audio Output	PWM / DAC
Sample Rate	6kHz – 20kHz
Control Interface	3-Wire Serial / Key Control
Standby Current	<10µA
Speaker Support	0.5W / 8Ω
Temperature Range	-20°C to +70°C
Package Format	DIP-16 Footprint

Working Principle

The WT588D-16P stores preloaded audio data in its internal memory. When a key, matrix input, or serial command is received, the onboard voice chip processes the selected audio file and outputs the corresponding sound through its PWM or DAC audio interface.

A compatible speaker can be connected to the audio output for direct playback, while the serial interface can be used for controlled audio playback from a microcontroller.

Typical Application Scenarios

Robotics

Add voice prompts such as “System Ready,” “Obstacle Detected,” or other custom announcements to robots.

Security Systems

Useful for voice alarms, warning messages, and security notifications.

Automotive Projects

Can be used for reverse warnings, vehicle announcements, and custom audio alerts.

Smart Home

Suitable for doorbell sounds, appliance status messages, and voice notifications.

Toys

Can provide interactive sound effects, voice messages, and programmed audio responses.

Applications

• Voice-enabled robotics
• Audio announcement systems
• Voice alarms
• Smart home devices
• Doorbells
• Automotive warning systems
• Interactive toys
• Voice prompts
• Sound effect systems
• DIY audio projects
• Arduino projects
• Raspberry Pi projects
• Embedded audio systems
• Educational electronics

Package Includes

• 1 × WT588D-16P Voice Sound Audio Player Module

Product Disclaimer

Product information provided on our website may not be entirely accurate as specifications can vary between manufacturers, suppliers, and production batches. Please verify the actual product specifications before using the module in critical applications.

Product images are for illustrative purposes only and may differ from the actual product in colour, component placement, connector design, or other visual details.

Important Note

Speaker Connection

The module can directly drive a suitable 0.5W/8Ω speaker according to the supplied specifications. Ensure that the speaker and wiring are appropriate for the module’s audio output.

Audio Programming

Audio files need to be compiled and downloaded to the module using a compatible programmer, which is not included in the package.

Power Supply

The module operates from 2.8V–5.5V DC. Always use a suitable regulated power supply and verify the polarity before connecting the module.
