Short U Shape Aluminium Servo Bracket – Multi-Axis Servo Joint Mount

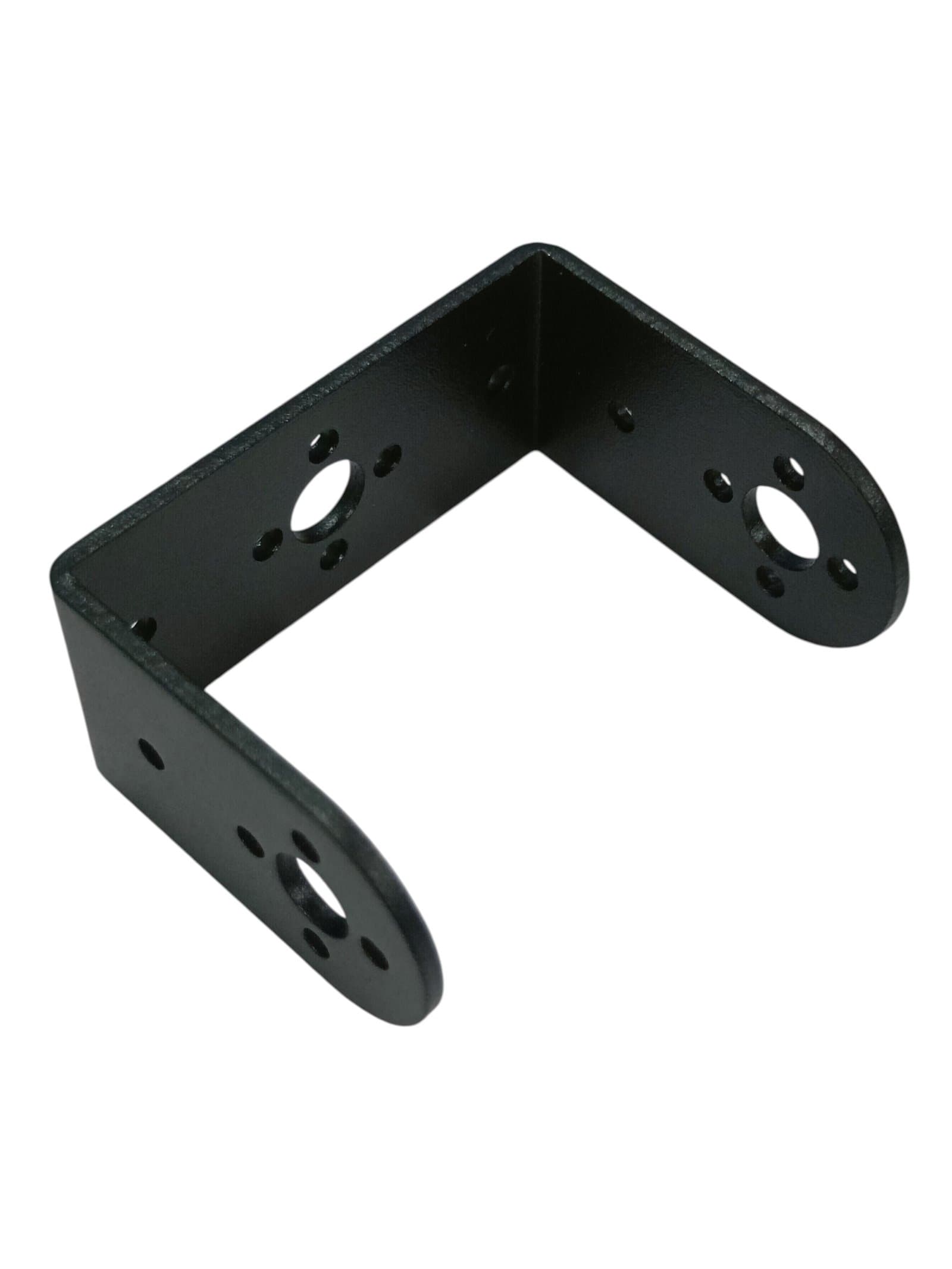

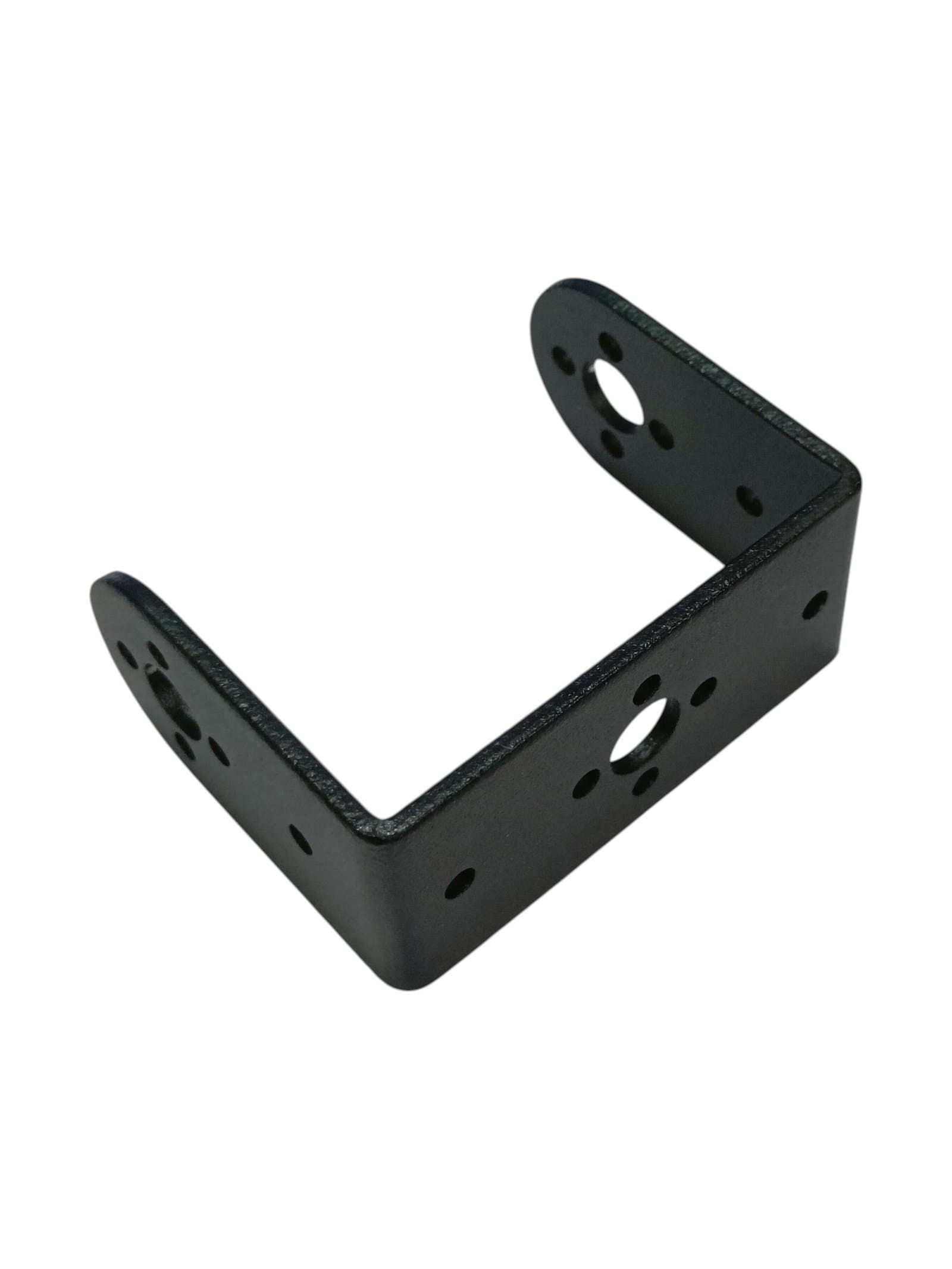

The Short U Shape Aluminium Servo Bracket is a lightweight, strong, and versatile mounting bracket designed to fit most standard-sized servo motors. Its compact U-shaped construction provides a rigid and reliable mounting solution for robotic joints, servo-driven mechanisms, robot arms, legs, and custom mechanical assemblies.

Manufactured from 2mm hard aluminium, the bracket offers a good balance of strength, durability, rigidity, and low weight. Its short U-shaped design makes it particularly suitable for compact robotic mechanisms where a smaller mounting structure is preferred.

Various mounting holes are provided on the bracket to accommodate compatible servo horns, screws, linkages, and other mechanical components. The numerous mounting positions make it easy to create custom mechanisms using standard servo motors and provide flexibility during assembly.

The bracket works well for creating multi-axis joints for robotic arms and legs. It can be combined with other aluminium servo brackets and servo motors to build articulated structures and multi-degree-of-freedom robotic mechanisms.

The black sandblasting oxidation surface finish provides a clean appearance and a durable surface suitable for regular mechanical applications.

Features

• Short U-shaped aluminium servo bracket
• Designed for most standard-sized servo motors
• Made from 2mm hard aluminium
• Lightweight yet strong construction
• Compact U-shaped structural design
• Multiple mounting holes
• Suitable for compatible servo horns
• Ideal for multi-axis robotic joints
• Suitable for robot arms and legs
• Useful for articulated robotic mechanisms
• Enables custom servo mechanism construction
• Suitable for DIY robotics projects
• Ideal for Arduino and microcontroller-based robots
• Can be combined with other servo brackets
• Black sandblasting oxidation finish
• Suitable for automation and prototype development
• Compact design for space-limited mechanisms

Specifications

Parameter	Specification
Product Type	Short U Shape Aluminium Servo Bracket
Design	Short U-Shaped
Material	2mm Hard Aluminium
Surface Finish	Sandblasting Oxidation
Colour	Black
Weight	Approximately 17 g
Servo Compatibility	Most Standard-Sized Servos
Mounting Type	Mechanical Screw Mounting
Mounting Features	Multiple Holes
Application	Multi-Axis Joints, Robot Arms and Legs

Design and Construction

The Short U Shape Aluminium Servo Bracket is manufactured from 2mm hard aluminium to provide a strong and rigid mechanical mounting solution while maintaining a compact form factor.

Its short U-shaped structure provides support for servo-based mechanisms while taking up less space than larger bracket designs. This makes it useful for compact robotic assemblies and applications where component spacing is important.

Multiple mounting holes provide flexible installation options for servo motors, servo horns, linkages, and other mechanical components. The different mounting positions allow users to customize the position and alignment of connected components.

With a weight of approximately 17 g, the bracket provides a lightweight mechanical mounting solution while maintaining the strength and rigidity required for articulated robotic mechanisms.

The bracket features a black sandblasting oxidation surface finish for a clean and durable appearance.

Working Principle

The bracket functions as a mechanical mounting and interconnecting component for standard-sized servo motors and other robotic components.

A compatible servo motor can be secured to the bracket using suitable mounting screws. A servo horn, linkage, additional bracket, or other mechanical component can then be connected through the available mounting holes.

The U-shaped structure provides a stable mechanical connection between the servo and the attached components. When the servo rotates, its movement is transferred through the servo horn or linkage to the connected mechanism.

Multiple brackets and servo motors can be combined to create multi-axis joints for robotic arms, legs, walking robots, and other articulated structures.

The bracket is a passive mechanical component and does not require electrical power.

Applications

• Multi-axis robotic joints
• Robotic arms
• Robotic legs
• Walking robots
• Humanoid robots
• Biped robots
• DIY robotics projects
• Arduino robot projects
• Servo-controlled mechanisms
• Articulated robot joints
• Compact robotic mechanisms
• Robot arm joints
• Robot leg joints
• Custom servo mechanisms
• Multi-axis mechanisms
• Servo motor mounting
• Mechanical linkages
• RC robotics projects
• Automation projects
• Educational robotics
• Mechanical prototype development
• Custom robot structures
• Embedded robotics systems

Package Includes

• 1 × Short U Shape Aluminium Servo Bracket

Product Disclaimer

Product images are shown for illustrative and representational purposes only. The actual product may vary slightly in colour, dimensions, surface finish, hole positioning, slot dimensions, or appearance depending on the manufacturing batch.

Servo motor, servo horn, screws, linkages, additional brackets, robot parts, and other components shown in product images are not included unless specifically mentioned in the package contents.

Compatibility with a particular servo depends on the servo’s physical dimensions and mounting-hole arrangement. Please verify the dimensions and mounting pattern before installation.
