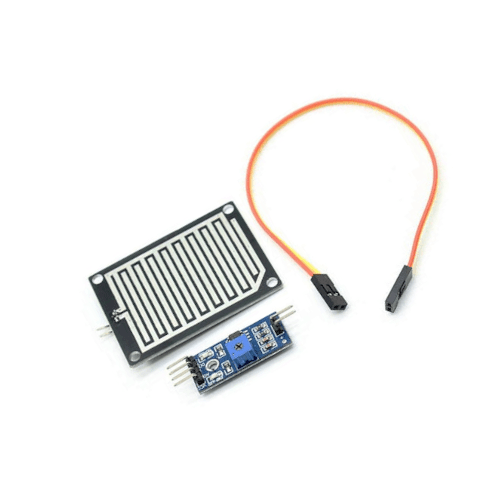

Raindrops Detection Sensor Module For Arudino

The Raindrops Detection Sensor Module is designed for rain detection and measuring rainfall intensity. It is suitable for various weather monitoring applications and can translate weather conditions into output signals, both digital and analog. The module consists of a printed circuit board (control board) that collects raindrops, creating parallel resistance paths measured by an op-amp. The resistance corresponds to the amount of water, affecting the analog output voltage.

Key Features:
– Utilizes the LM393 op-amp for wide voltage compatibility
– Provides digital and analog output signals
– Output LED indicator for visual feedback
– Compatible with Arduino and TTL devices
– High-quality FR-04 double material for durability
– Nickel-plated surface for oxidation resistance and superior conductivity
– Compact size with dimensions of 5.5 * 4.0 CM
– Adjustable sensitivity through a potentiate
– Digital switch output (0 and 1) and analog AO voltage output
– Convenient installation with fixed bolt holes

The LM393 ensures a clean output signal with good waveform and strong driving ability. The module includes a control board and a rain board for enhanced convenience. It features a power indicator LED and is based on the LM393 op-amp for reliable performance. The sensitivity adjustment allows customization based on specific requirements.
