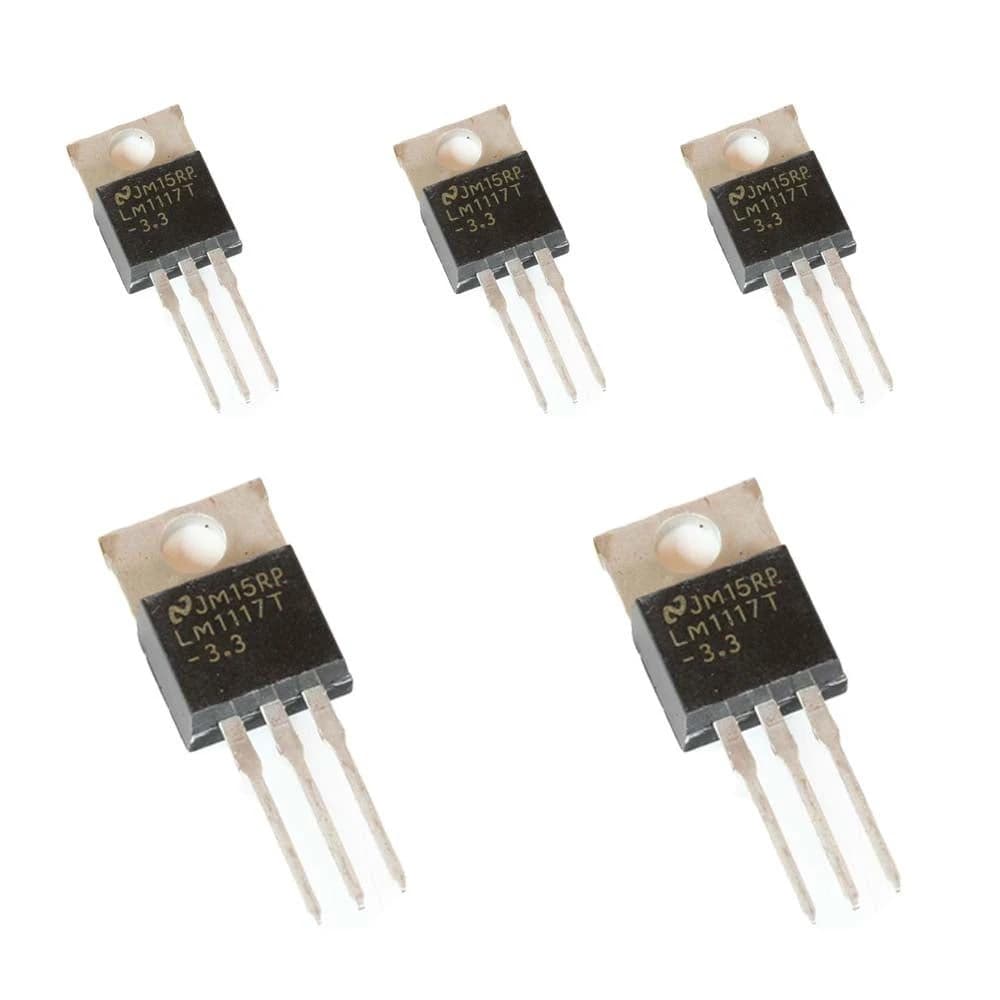

LM1117 IC Transistor - (Pack of 5)
SKU: TT-70F0FE6749E0
₹0.00
GST classification pending administrator review
LM1117 3.3V Low-Dropout Voltage Regulator (Pack of 5) The LM1117 is a low-dropout voltage regulator with a dropout of 1.2 V at 800 mA of load current. This listing is for the…
Delivery options
Courier from ₹79.00 per order · Free above ₹999.00
Product description
LM1117 3.3V Low-Dropout Voltage Regulator (Pack of 5)
The LM1117 is a low-dropout voltage regulator with a dropout of 1.2 V at 800 mA of load current. This listing is for the 3.3V version. An adjustable version is also available that can set the output voltage from 1.25 to 13.8 V using only two external resistors.
The device offers current limiting and thermal shutdown. Its circuit includes a Zener-trimmed bandgap reference to assure output voltage accuracy to within ±1%.
Specifications
| Parameter | Value |
|---|---|
| Type | Voltage regulator |
| Output voltage | 3.3 V (low dropout) |
| Dropout | 1.2 V at 800 mA load current |
| Output current | 800 mA |
| Line regulation | 0.2% (maximum) |
| Load regulation | 0.4% (maximum) |
| Temperature range | 0°C to 125°C |
| Packages | SOT-223 and WSON |
Features
- Space-saving SOT-223 and WSON packages
- Current limiting and thermal protection
- Output current 800 mA
- Line regulation 0.2% (maximum)
- Load regulation 0.4% (maximum)
Package Contents
- 5 x LM1117 IC Transistor
