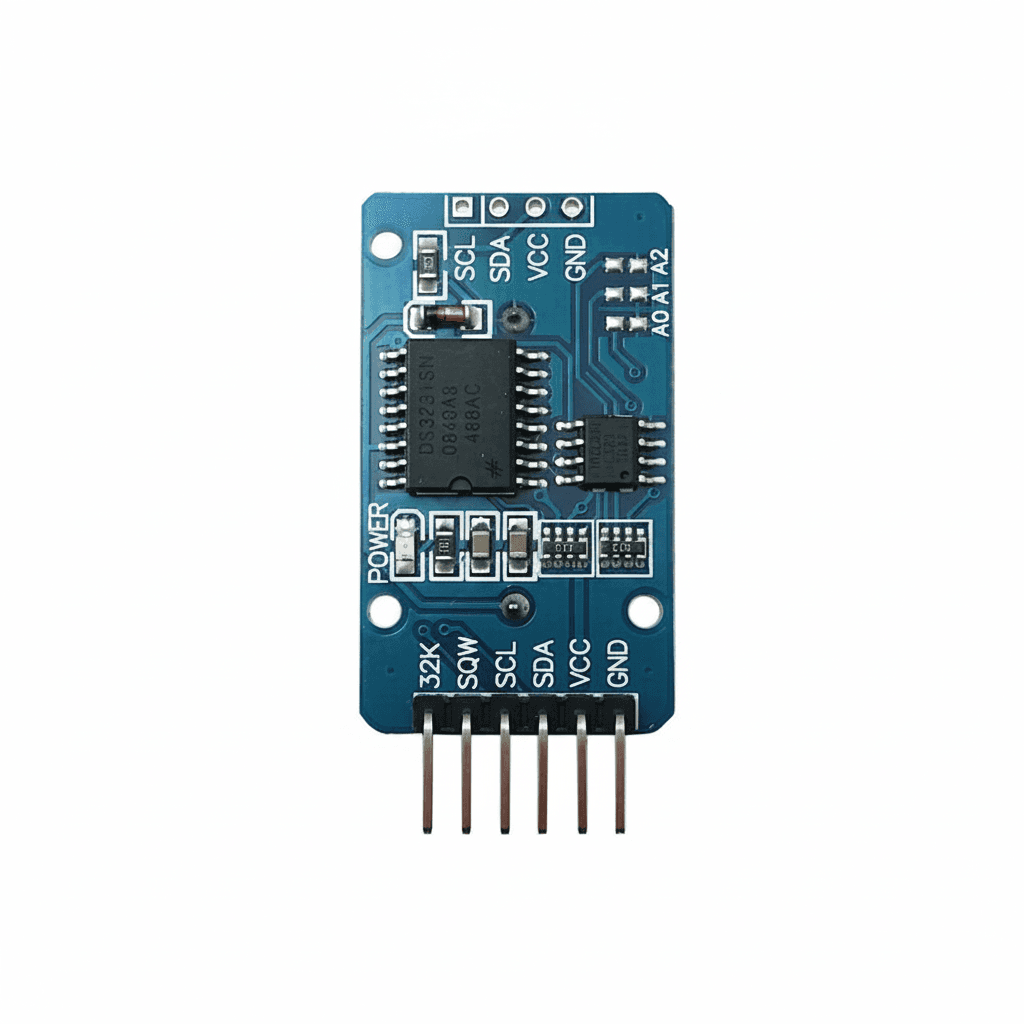

DS3231 RTC Module Precise Real Time Clock I2C – AT24C02

The DS3231 IIC RTC Module is a high-precision and reliable real-time clock module designed for accurate timekeeping in electronic and embedded systems. Based on the Maxim DS3231 RTC IC, it uses a temperature-compensated crystal oscillator (TCXO) to provide excellent timekeeping accuracy with minimal frequency drift. This makes it particularly suitable for applications where more precise timekeeping is required.

The module communicates with a host microcontroller through the I²C two-wire interface, making it easy to integrate with popular development platforms such as Arduino, ESP32, ESP8266, Raspberry Pi, STM32, AVR, and PIC. It supports both 12-hour and 24-hour time formats and includes an AM/PM indicator when operating in 12-hour mode.

An onboard AT24C32 EEPROM provides 32Kbit (4KB) of non-volatile storage, allowing users to store configuration data, event information, calibration values, or other small amounts of information. The RTC also includes two programmable alarms and a configurable square-wave output, providing additional functionality for time-based control and scheduling applications.

The module features a built-in 10-bit digital temperature sensor with 0.25°C resolution, allowing the system to monitor the temperature around the RTC. An aging trim register is also provided for fine frequency calibration when required.

A CR2032 battery holder provides backup power capability, allowing the RTC to continue maintaining time when the main power supply is disconnected. The CR2032 battery is not included and can be added separately when backup timekeeping is required.

Features

• High-precision DS3231 real-time clock IC
• Temperature-compensated crystal oscillator (TCXO)
• Excellent timekeeping stability with low frequency drift
• Accuracy of approximately ±2 ppm from 0°C to +40°C
• Accuracy of approximately ±3.5 ppm from -40°C to +85°C
• Built-in 10-bit digital temperature sensor
• Temperature resolution of 0.25°C
• Temperature sensor accuracy of approximately ±3°C
• Supports 12-hour and 24-hour time formats
• AM/PM indicator for 12-hour format
• Two programmable alarms
• Programmable square-wave output
• Square-wave frequencies from 1Hz to 8kHz
• I²C communication interface
• Supports I²C communication speeds up to 400kHz Fast Mode
• Onboard AT24C32 32Kbit (4KB) EEPROM
• Non-volatile memory for additional data storage
• Aging trim register for frequency calibration
• CR2032 backup battery holder
• Compatible with 3.3V and 5V logic systems
• Low power consumption
• Suitable for accurate timekeeping applications
• Compact design for embedded systems

Specifications

Parameter	Specification
Product Type	High-Precision Real-Time Clock Module
RTC IC	DS3231
Communication Interface	I²C
I²C Speed	Up to 400kHz
Operating Voltage	2.3V–5.5V
EEPROM	AT24C32
EEPROM Capacity	32Kbit / 4KB
Temperature Sensor	10-bit Digital Sensor
Temperature Resolution	0.25°C
Temperature Accuracy	Approximately ±3°C
Time Format	12 / 24 Hour
Programmable Alarms	2
Square-Wave Output	1Hz–8kHz
Backup Battery	CR2032, 3V
Battery Included	No
Operating Temperature	-40°C to +85°C
Accuracy	±2 ppm (0°C–+40°C), ±3.5 ppm (-40°C–+85°C)
Dimensions	Approximately 38mm × 22mm × 14mm
Weight	Approximately 8g

Design and Construction

The DS3231 RTC module is built around the DS3231 high-precision real-time clock IC and integrates the supporting components required for accurate timekeeping, temperature measurement, backup power, and I²C communication.

The module uses a temperature-compensated crystal oscillator, which helps compensate for changes in oscillator frequency caused by temperature variations. This provides better timekeeping stability compared with basic RTC modules that use a conventional crystal oscillator.

An onboard AT24C32 EEPROM provides additional non-volatile storage. The memory can be accessed by the host microcontroller through the I²C interface and can be used for storing small amounts of persistent project information.

The board includes a CR2032 battery holder for backup operation. When a suitable battery is installed, the RTC can continue maintaining time when the main power supply is removed.

The module also provides access to the RTC’s alarm and square-wave functions, allowing it to be integrated into systems that require scheduled events, periodic timing signals, or interrupt-based control.

The compact PCB design makes the module suitable for breadboard prototyping, embedded systems, automation projects, IoT devices, and custom electronic equipment.

Working Principle

The DS3231 maintains accurate time and calendar information using its integrated temperature-compensated oscillator and RTC circuitry. It keeps track of seconds, minutes, hours, day, date, month, and year.

The host microcontroller communicates with the DS3231 through the I²C interface. The controller can read the current time and date, update the clock, configure alarms, and access other supported functions.

The temperature-compensation system continuously accounts for oscillator frequency changes caused by temperature variations. This helps the RTC maintain accurate time over a wide operating temperature range.

The integrated 10-bit digital temperature sensor measures the temperature near the RTC and provides the result digitally with a resolution of 0.25°C. This temperature information can also be read by the connected microcontroller through the I²C interface.

The two programmable alarms can be configured to trigger events at specific times or intervals. The programmable square-wave output can provide periodic timing signals from 1Hz to 8kHz, depending on the selected configuration.

When the main system power is unavailable, a suitable CR2032 battery installed in the holder can provide backup power for the RTC, allowing it to maintain the current time.

The onboard AT24C32 EEPROM operates independently as non-volatile memory and can be used to retain data even when the main power is disconnected.

Applications

• High-accuracy real-time clock systems
• Arduino clock projects
• Arduino Uno, Nano, and Mega projects
• ESP32 timekeeping systems
• ESP8266 IoT projects
• Raspberry Pi real-time clock applications
• STM32 embedded systems
• Time-stamped data logging
• Environmental data loggers
• Sensor monitoring systems
• IoT devices
• Smart home automation
• Time-based automation systems
• Event scheduling systems
• Alarm systems
• Digital clocks
• Electronic timers
• Power management systems
• Industrial automation
• Embedded control systems
• Attendance systems
• Access control systems
• Precision timing applications
• Battery-backed timekeeping
• Educational electronics projects
• Custom embedded systems

Compatibility

• Arduino Uno
• Arduino Nano
• Arduino Mega
• ESP32
• ESP8266
• Raspberry Pi
• STM32
• AVR
• PIC
• Other microcontrollers supporting I²C communication

Package Includes

• 1 × DS3231 IIC RTC Module with AT24C32 EEPROM and CR2032 Battery Holder

Note: CR2032 backup battery is not included.

Product Disclaimer

Product images are shown for illustrative and representational purposes only. The actual product may vary slightly in colour, dimensions, PCB layout, component placement, connector arrangement, or appearance depending on the manufacturing batch.

CR2032 battery, Arduino boards, ESP32 boards, Raspberry Pi boards, connecting wires, breadboards, displays, sensors, power supplies, and other components shown in product images are not included unless specifically mentioned in the package contents.

The CR2032 battery is not included. Install a suitable 3V CR2032 coin cell in the provided holder when backup timekeeping is required.

The stated accuracy figures are based on the DS3231 device specifications and may vary depending on the module implementation, operating conditions, temperature, power supply, and other environmental factors.

The module should be operated within its specified voltage and temperature ranges. Verify the I²C wiring, power connections, and battery polarity before use.
