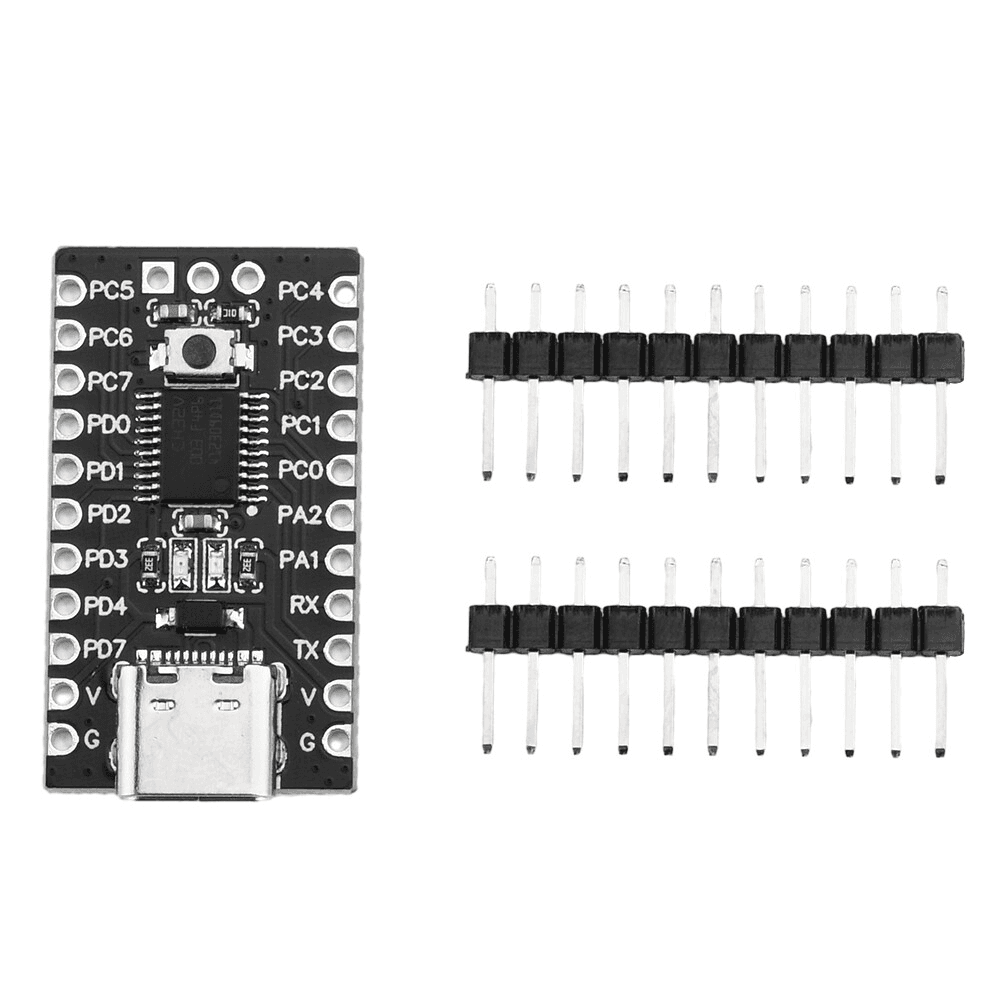

Core Board Development Board CH32V003F4P6 RISC-VPROCESSOR 64K

Empower your embedded systems development with the CH32V003F4P6 RISC-V development board—an ultra-compact and high-performance microcontroller module designed for modern electronics projects. Built on the Qingke 32-bit RISC-V2A processor, this board delivers excellent efficiency, low power consumption, and flexible interfacing options, making it an ideal choice for developers, students, and embedded enthusiasts.

🚀 Key Features:

• Open-Source RISC-V Architecture: Built on the industrial-grade Qingke RISC-V2A core, supporting 48MHz system clock, 2-level interrupt nesting, and excellent performance optimization for various applications.

• Multiple Interfaces: Integrated USART, I2C, and SPI interfaces for seamless peripheral connectivity in embedded projects.

• Versatile Analog & Digital Capabilities: Includes 10-bit ADC (8 channels), operational amplifier comparator, DMA controller, advanced & general-purpose timers, and watchdog timers.

• Low Power Design: Offers multiple low-power modes including sleep and standby, along with programmable voltage detection and power-on/off reset features.

• Compact and Developer-Friendly: Sized at just 31mm x 18mm, this board is perfect for space-constrained designs and supports single-wire serial debugging.

📊 Technical Specifications:

Attribute	Specification
Model	CH32V003F4P6
Processor Core	Qingke RISC-V2A (32-bit)
Clock Frequency	48MHz
Flash Memory	16KB
SRAM	2KB
ADC	10-bit, 1 unit with 8 channels
DMA	1 set, 1 channel
Timers	1 advanced 16-bit, 1 general-purpose
Watchdog Timers	2 WDOG + 1 system timer (32-bit)
Analog Comparator (OPA)	1 unit
GPIO Pins	18 (with external interrupt support)
Interfaces	1 x USART, 1 x I2C, 1 x SPI
Operating Voltage (VDD)	3.3V / 5.0V
Debugging Interface	Single-wire serial debugging
Unique Chip ID	64-bit
Board Dimensions	31mm x 18mm

Please Note: Images are for representation only. the Actual Image of the product may vary slightly in apperance.
