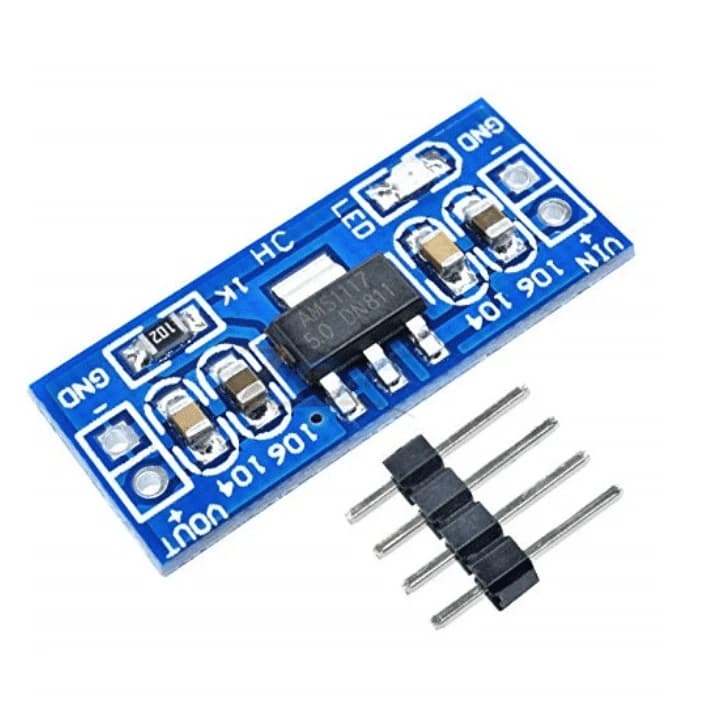

AMS1117 5V Step-Down Power Supply Module

AMS1117 5V Step-Down Power Supply Module

This step-down power supply module uses the AMS1117 5V regulator to convert an input voltage into a fixed 5V output. The input and output terminals connect through standard 0.1" header pins, positioned to allow face-down insertion into a breadboard.

Features

• Onboard AMS1117 regulator chip
• Onboard red LED power indicator
• Output voltage interface for convenient experimental connections
• Small, compact 4-pin type, breadboard friendly
• 2-pin single-row input and output pins for easy connection
• Dual-panel design with a clean layout

Specifications

Package Contents

• 1 x AMS1117 5V Step-Down Power Supply Module

Note

Do not exceed the absolute maximum input voltage (12.5V) or the maximum output current, as this can permanently damage the module or connected devices. The jumper connector is not soldered.
