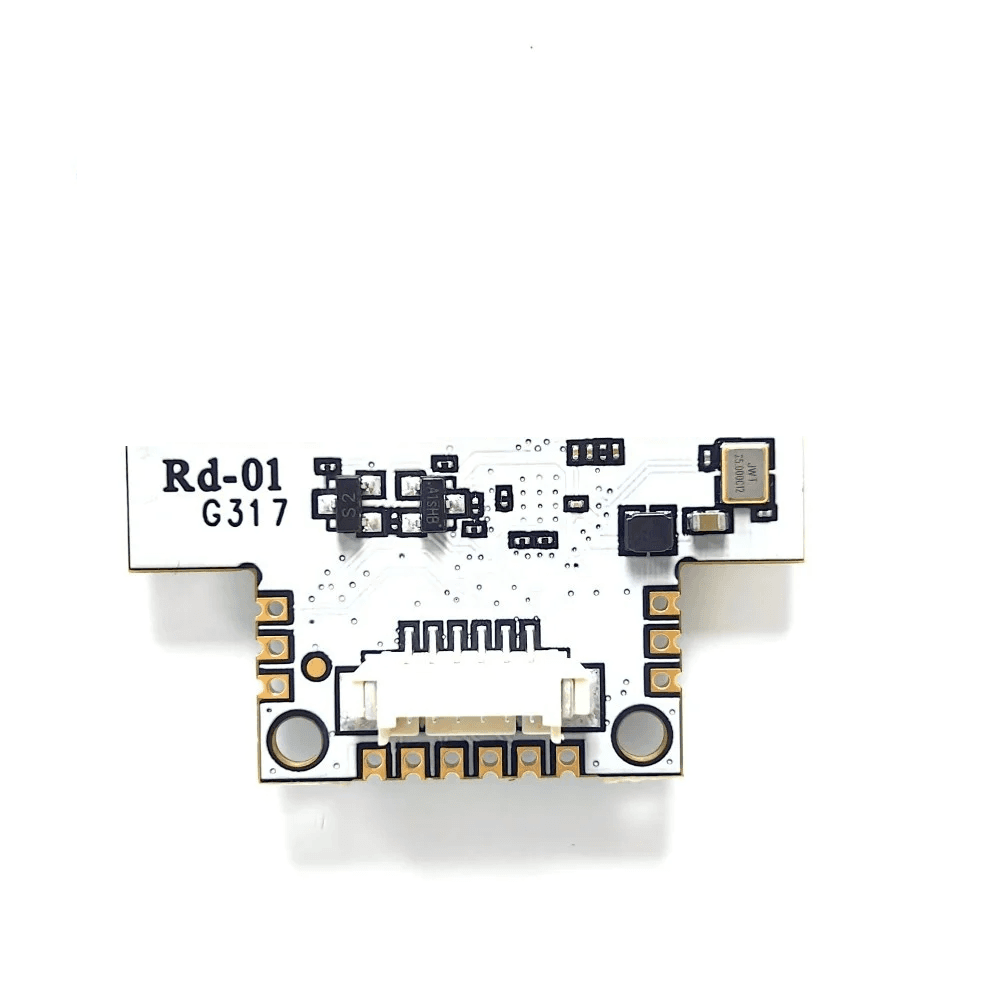

Ai-Thinker RD-01 24GHz Radar Module with Wi-Fi and BLE 5.0

The Ai-Thinker RD-01 is a revolutionary “All-in-One” module that combines high-precision 24GHz Radar Sensing with powerful Wi-Fi and Bluetooth (BLE 5.0) connectivity. Unlike standard radar sensors that require an external microcontroller to send data, the RD-01 is a standalone IoT node capable of sensing, processing, and transmitting data directly to the cloud or your smart home network.

Dual-Core Powerhouse

The RD-01 is driven by two powerful chipsets:

1. Radar Core (S3KM111L): An FMCW radar SoC that detects human presence (static and moving) with high sensitivity.

2. Connectivity Core (BL602): A 32-bit RISC CPU that handles Wi-Fi (802.11b/g/n) and Bluetooth Low Energy 5.0 communications.

Wireless Configuration & Smart Control

Gone are the days of hard-coding parameters. The RD-01 allows for intelligent parameter adjustment via Bluetooth. You can wirelessly configure detection distance, sensitivity, and delay times directly from a mobile device or laptop, making installation and maintenance incredibly fast.

Complete IoT Integration

With support for WPA3 Security, Bluetooth Mesh, and Station + SoftAP modes, this module is ready to integrate into secure smart home ecosystems (Tuya, Home Assistant, etc.) right out of the box.

Key Features

• 3-in-1 Design: Integrates Radar, Wi-Fi, and Bluetooth in a single SMD-12 package.

• Presence Detection: Detects moving, micro-moving (twitching), and static human bodies up to 5 meters.

• Wireless Config: Adjust radar sensitivity and range wirelessly via Wi-Fi or BLE.

• High Performance: 32-bit RISC CPU with 276KB RAM for edge computing tasks.

• Robust Security: Supports Secure Startup and WPA3 encryption.

• Wide Coverage: ±60° large detection angle.

Technical Specifications

Feature	Specification
Model	RD-01
Radar Chip	S3KM111L (FMCW)
Connectivity Chip	BL602 (32-bit RISC)
Wireless	Wi-Fi 802.11 b/g/n + BLE 5.0 / Mesh
Frequency	24 GHz (ISM Band)
Max Range	5 Meters
Flash / RAM	276KB RAM
Security	WPA3, ECC-256
Interface	UART, SPI, I2C, PWM, ADC (via BL602)
Dimensions	SMD-12 Package

Typical Application Scenarios

• Smart Security: A motion sensor that connects directly to your Wi-Fi router to send alerts.

• Elderly Care: Monitors presence and inactivity without cameras, preserving privacy.

• Smart Lighting: Wireless light bulbs that turn on when you enter and stay on while you read.

• Advertising: Screens that wake up and download new content via Wi-Fi when a person is detected.

Please download the datasheet here.
