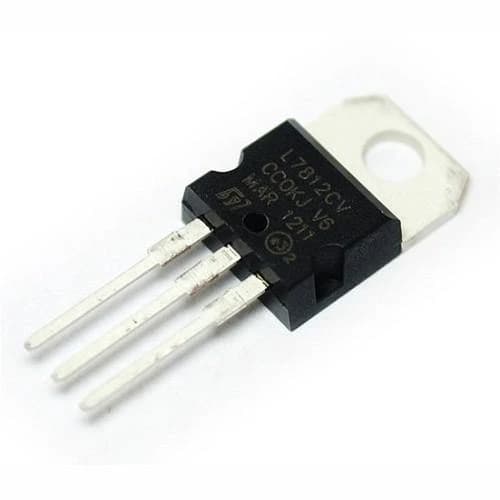

7812 Voltage Regulator IC

7812 Voltage Regulator IC

SKU: TT-E45EF3321790

₹0.00

GST classification pending administrator review

7812 Voltage Regulator IC The 7812 is a commonly used three-terminal linear voltage regulator that provides a fixed 12V output. It requires no external components for basic…

Delivery options

Courier from ₹79.00 per order · Free above ₹999.00

View shipping details

Product description

7812 Voltage Regulator IC

The 7812 is a commonly used three-terminal linear voltage regulator that provides a fixed 12V output. It requires no external components for basic operation; connect the input voltage and ground to obtain a regulated 12V output.

Specifications

ParameterValue
Output voltage12V
Input voltage range12–35VDC
Max input voltage35V
Max output current1.5A
Surge currentUp to 2.2A
Quiescent (standby) current5mA
Dimensions5 x 4 x 3 cm
Weight2 g

Features

  • Fixed 12V output linear regulator
  • No external components required for basic operation
  • Built-in current limiting and over-temperature protection
  • A 0.33uF or larger input filter capacitor is recommended when the regulator is used at a distance from the input supply

Applications

  • Electronic communications
  • LEDs and flashlights
  • Load switches
  • Electrical power supplies
  • Providing a stable +12V supply for microcontrollers, sensors and other electronic devices

Package Includes

  • 7812 Voltage Regulator IC
