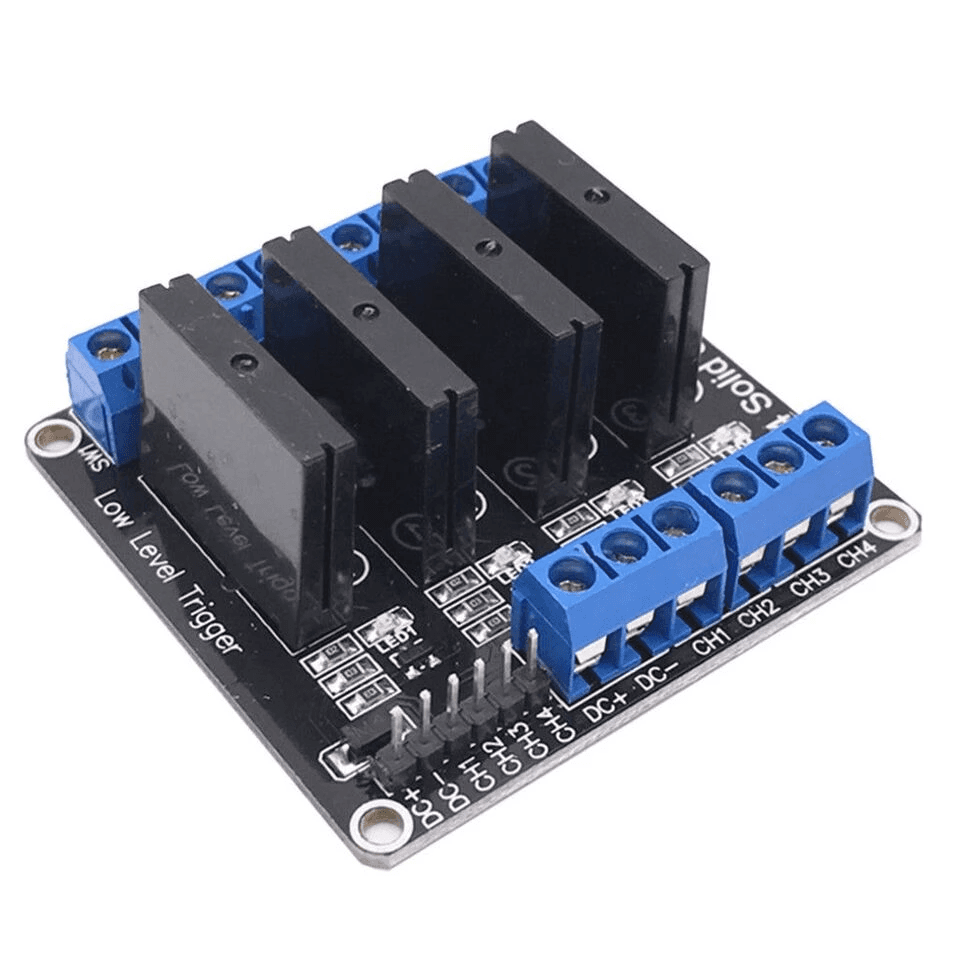

4 Channel DC 5V Solid State SSR Relay Module

Product Description

The Omron 5V Solid State Relay Module is a compact switching module designed to control AC loads up to 240 V and 2 A using a low-voltage 5 V DC control signal. It uses a solid-state relay for electronic switching without the mechanical contacts found in conventional relays, making it suitable for applications requiring frequent switching.

The module features a low-level trigger input, where a signal between 0–1.5 V turns the relay ON, while a 2.5–5 V signal turns it OFF. It operates from a 5 V DC supply and has a compact size of approximately 56.6 × 55.4 × 24 mm.

An onboard 240 V 2 A resistive fuse provides additional protection for suitable loads. The module is suitable for automation, Arduino projects, embedded systems, and AC load switching applications.

Features

• Omron 5 V solid-state relay
• AC load switching up to 240 V / 2 A
• 5 V DC input supply
• Low-level trigger operation
• Low trigger: 0–1.5 V → Relay ON
• High trigger: 2.5–5 V → Relay OFF
• Integrated 240 V 2 A resistive fuse
• Compact module design
• Suitable for microcontroller control
• No mechanical relay contacts
• Suitable for frequent switching applications
• Easy to interface with control systems

Specifications

Parameter	Specification
Relay Type	Solid State Relay
Relay Brand	Omron
Input Voltage	5 V DC
Input Current	≤160 mA
Output Voltage	Up to 240 V AC
Output Current	Up to 2 A
Fuse	240 V / 2 A Resistive Fuse
Trigger Type	Low Level
Relay ON Signal	0–1.5 V
Relay OFF Signal	2.5–5 V
Dimensions	56.6 × 55.4 × 24.0 mm
Weight	Approximately 36.4 g

Working Principle

The module uses a solid-state relay to electronically switch an AC load based on the input control signal. When the trigger input is at a low level of 0–1.5 V, the relay switches ON and allows the connected AC load to operate.

When the input signal is raised to 2.5–5 V, the relay switches OFF and disconnects the load. The solid-state design provides electronic switching without mechanical contacts.

Applications

• Arduino AC load control
• Microcontroller projects
• Home automation
• Industrial automation
• AC lamp switching
• Fan control
• Heater control
• AC appliance switching
• Embedded control systems
• DIY electronics
• Automation prototypes
• Frequent AC switching applications
