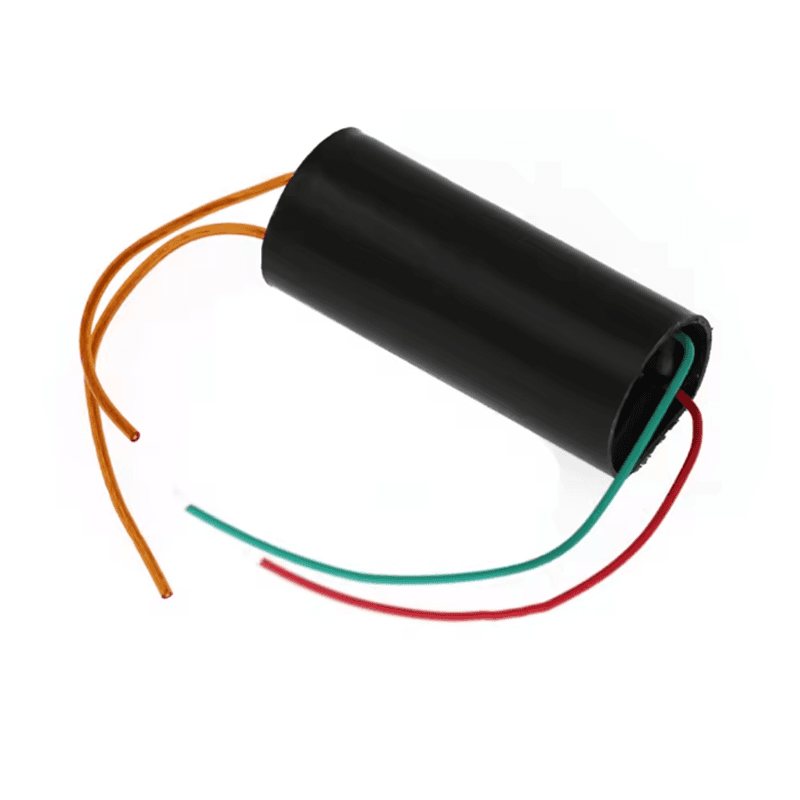

3-6V 400KV High Voltage Generator Boost Module

3-6V 400KV High Voltage Generator Boost Module

The 3-6V 400KV High Voltage Generator Boost Module is a compact high-voltage pulse generator designed to convert a low-voltage DC input into a high-voltage output suitable for educational experiments, ignition applications, scientific demonstrations, and electronics research.

Operating from a 3V to 6V DC power source, the module uses an internal high-frequency boost circuit to generate high-voltage pulses. Its integrated design requires minimal external components, making it easy to incorporate into DIY electronics and laboratory projects.

The module features a compact cylindrical enclosure with pre-attached input and output leads for quick installation. Due to its high-voltage output, it should be used only in controlled environments with appropriate insulation and safety precautions.

Important: This module generates hazardous high voltage. It is intended for educational, experimental, and research purposes only. Always keep the high-voltage output away from people, animals, flammable materials, and sensitive electronic equipment.

Product Features

• Converts 3V–6V DC input into high-voltage pulse output
• Compact integrated boost module
• Simple two-wire power input
• High-voltage pulse generation
• Fast startup and efficient operation
• Minimal external components required
• Pre-attached input and output wires
• Suitable for electronic experiments and demonstrations
• Compact design for easy integration
• Ideal for laboratory, educational, and DIY electronics projects

Safety Note: This module generates dangerous high voltage. Use only with proper insulation and safety precautions.

Features

• High-voltage pulse generator module
• Operating voltage: 3V–6V DC
• High-voltage output up to approximately 400KV (open-circuit rating)
• Compact integrated design
• Low-voltage DC input
• High efficiency boost circuit
• Easy wiring
• Ready-to-use module
• Suitable for experimental applications
• Lightweight construction

Applications

• High-voltage demonstrations
• Educational experiments
• Electronics laboratories
• Scientific research
• DIY electronics
• Ignition experiments
• Physics demonstrations
• Prototype development

Specifications

Parameter	Value
Product Type	High Voltage Generator Boost Module
Input Voltage	3V–6V DC
Input Current	4A
Output Voltage	Up to approximately 400KV (open circuit)
Output Current	0.5A
Input Wire Length	Approximately 10 cm
Output Wire Length	Approximately 8 cm
Construction	Integrated Enclosed Module
Approximate Arc Distance	Up to 1.5 cm

Package Includes

• 1 × 3-6V 400KV High Voltage Generator Boost Module
